Removal [09/2018 - 09/2020]: Procedure

  1. REMOVE MAP LIGHT ASSEMBLY (w/o Manual (SOS) Switch)

    Refer to PROCEDURE - Step 1

  2. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/o Manual (SOS) Switch)
    1. Disconnect the connector.
      GTY469723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disengage the 2 claws and remove the telephone microphone assembly.
      GTY461650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ROOF HEADLINING ASSEMBLY (w/ Manual (SOS) Switch)

    Refer to REMOVAL [10/2016 - 09/2020]

  4. REMOVE TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE (w/ Manual (SOS) Switch)
    1. Disconnect the connector.

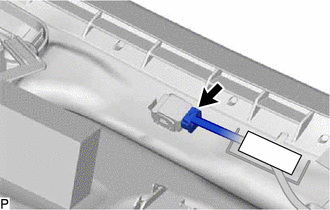

      GTY791095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and guide as shown in the illustration to remove the telephone microphone assembly with microphone case.

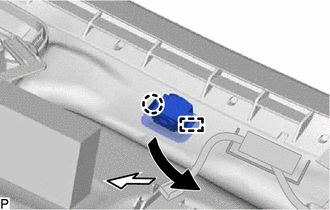

      GTY837705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  5. REMOVE TELEPHONE MICROPHONE ASSEMBLY (w/ Manual (SOS) Switch)
    1. Disengage the 2 claws to remove the telephone microphone assembly from the No. 1 microphone case as shown in the illustration.
      GTY782394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
