Components [04/2013 - 09/2020]

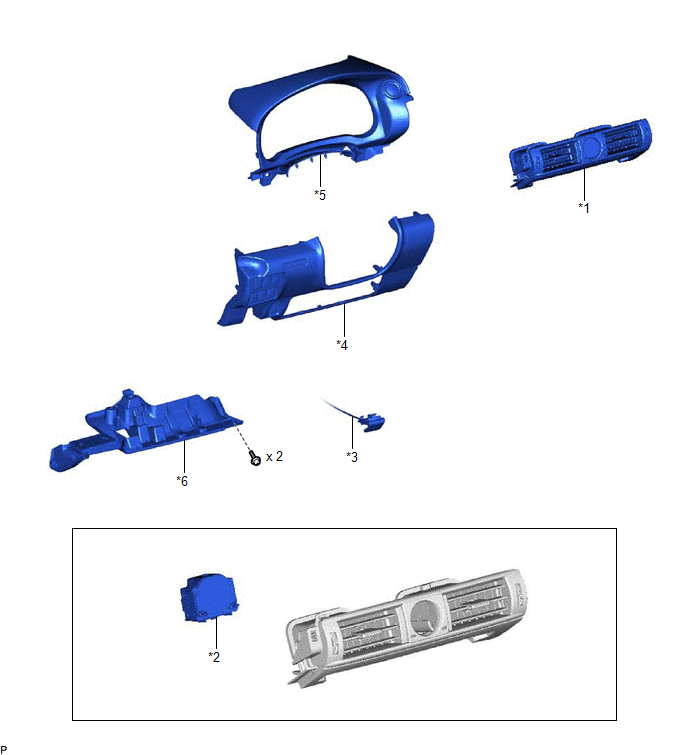

Fig 1: Clock Replacement Components [04/2013 - 09/2020]
GTY458835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CENTER INSTRUMENT PANEL REGISTER ASSEMBLY *2 CLOCK ASSEMBLY
*3 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY *4 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*5 METER HOOD SUB-ASSEMBLY *6 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
