Parts Location [04/2013 - 09/2018]: Illustration

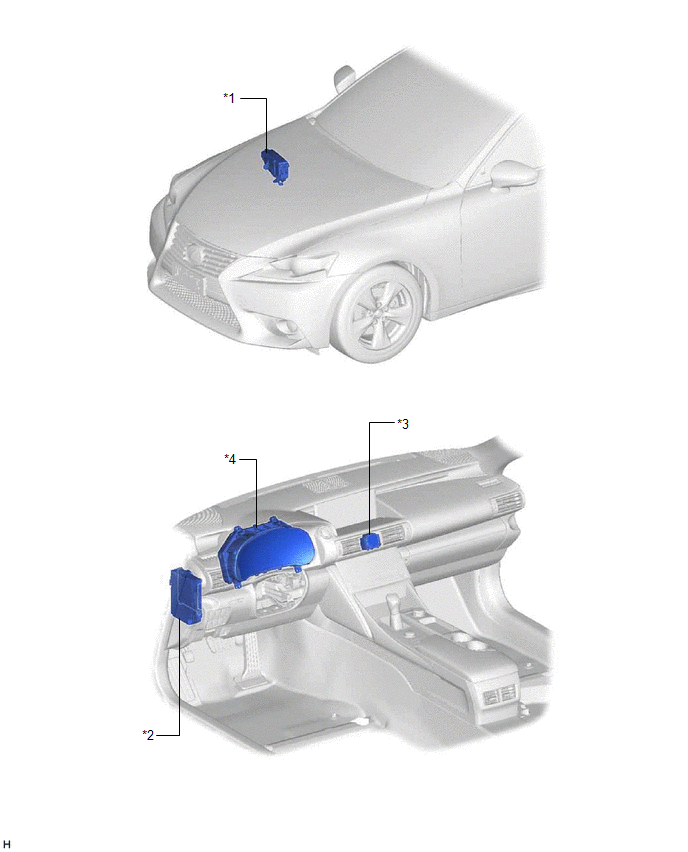

GTY467478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- MPX-B NO. 1 FUSE		 *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-ACC FUSE
*3 CLOCK ASSEMBLY *4 COMBINATION METER ASSEMBLY
