Parts Location [10/2016 - 09/2020]: Illustration

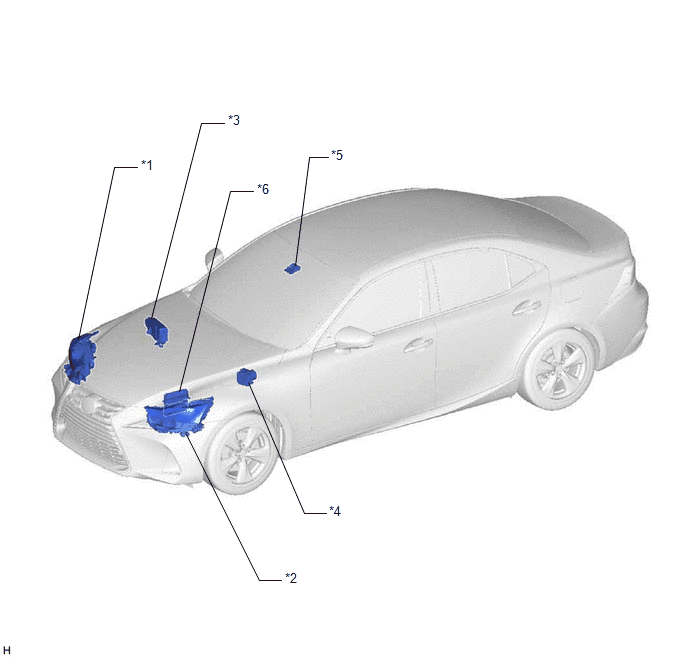

Fig 1: Automatic High Beam System Component Location (1 Of 2) [10/2016 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY RH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY RH	*2	HEADLIGHT ASSEMBLY LH - NO. 1 HEADLIGHT ECU SUB-ASSEMBLY LH
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - H-LP RH RELAY - H-LP LH RELAY - H-LP MAIN RH FUSE - H-LP MAIN LH FUSE	*4	BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*5	FORWARD RECOGNITION CAMERA	*6	ECM

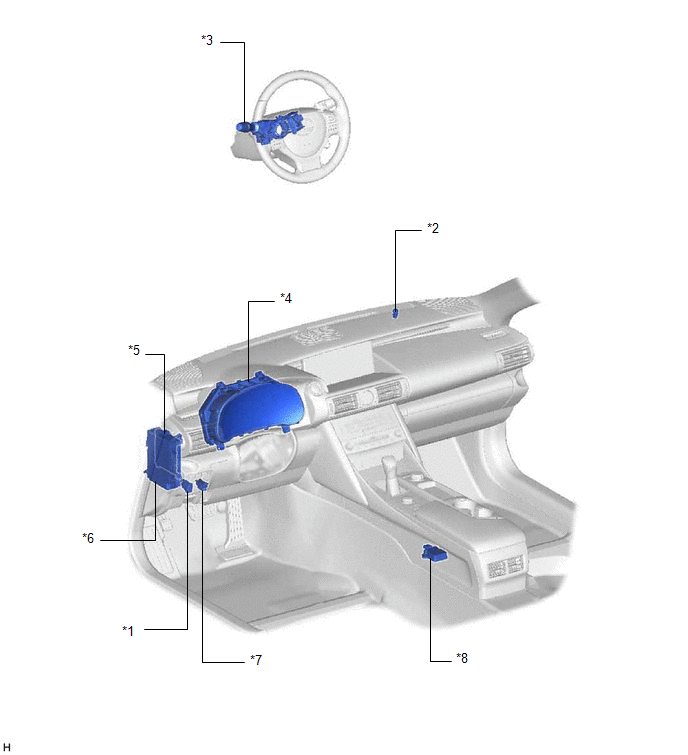

Fig 1: Automatic High Beam System Component Location (2 Of 2) [10/2016 - 09/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE
*7	DLC3	*8	YAW RATE SENSOR
