Parts Location [04/2013 - 10/2016]: Illustration

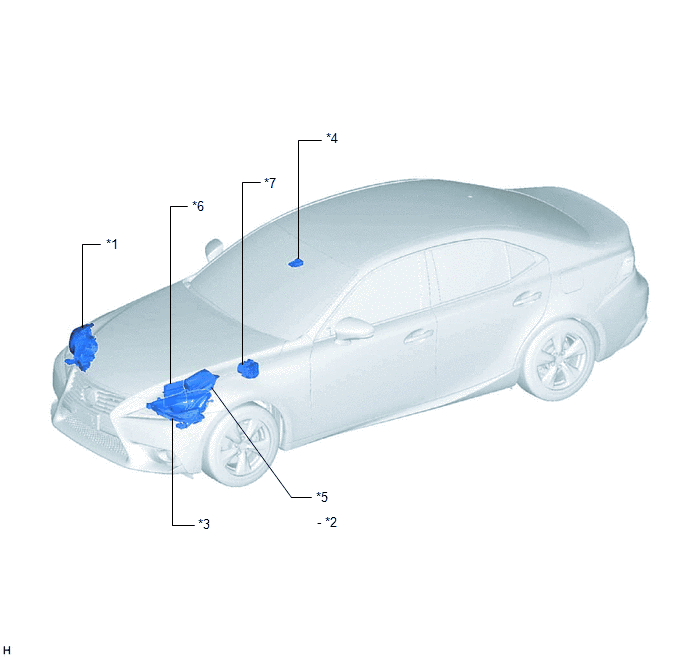

Fig 1: Identifying Automatic High Beam System Components Location (1 Of 2) [04/2013 - 10/2016]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HEADLIGHT ASSEMBLY RH	*2	SEMICONDUCTOR PWR INTEGRATION ECU
*3	HEADLIGHT ASSEMBLY LH	*4	LANE DEPARTURE WARNING CAMERA
*5	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY	*6	ECM
*7	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	-	-

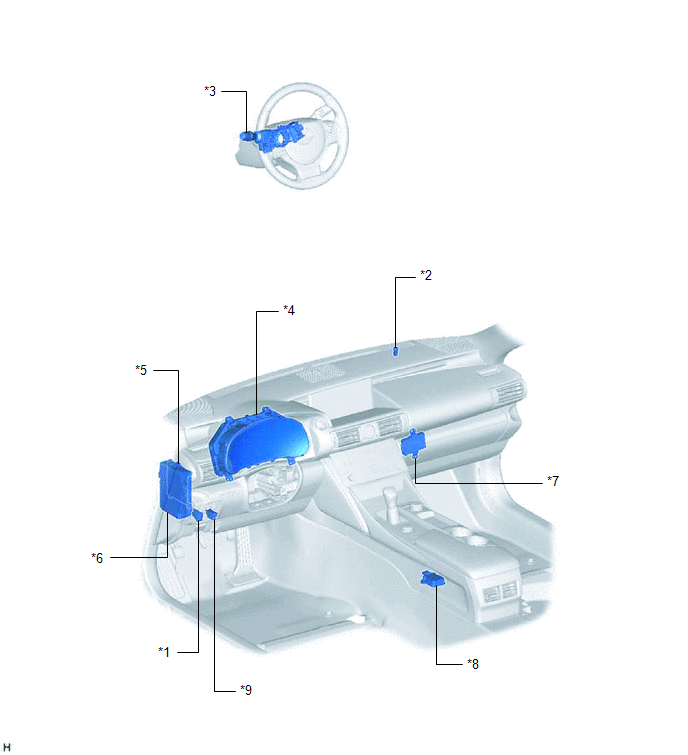

Fig 1: Identifying Automatic High Beam System Components Location (2 Of 2) [04/2013 - 10/2016]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AUTO HIGH BEAM SWITCH	*2	AUTOMATIC LIGHT CONTROL SENSOR
*3	HEADLIGHT DIMMER SWITCH ASSEMBLY	*4	COMBINATION METER ASSEMBLY
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 NO. 3 FUSE
*7	NETWORK GATEWAY ECU	*8	YAW RATE SENSOR
*9	DLC3	-	-
