Parts Location [09/2020 - ]: Illustration

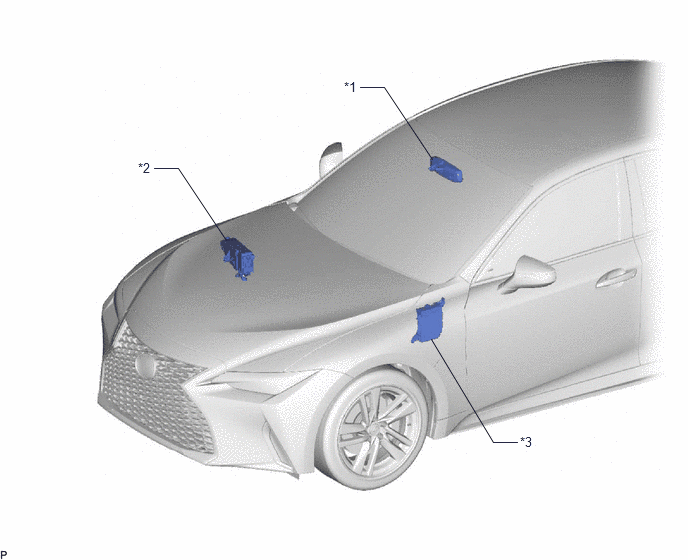

GTY971626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INNER REAR VIEW MIRROR ASSEMBLY
- GARAGE DOOR OPENER		 *2 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- MPX-B NO. 1 FUSE
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- IG1 NO. 3 FUSE		 - -
