Can Communication System
>>
ECM Communication Stop Mode [08/2015 - 10/2016]
>>

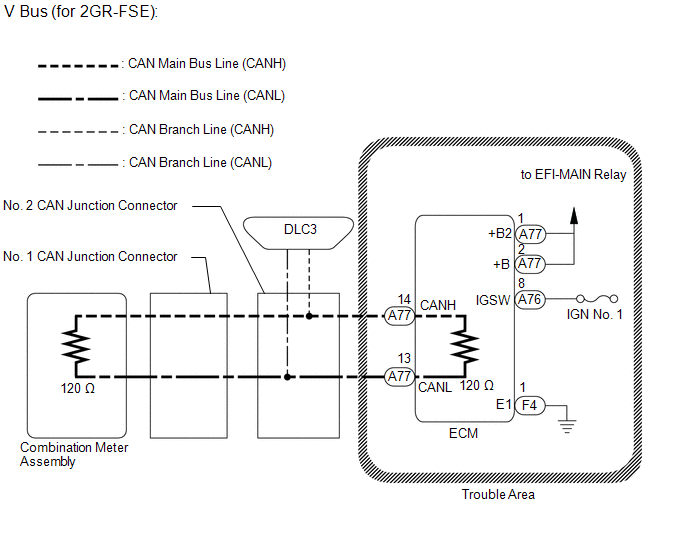

Wiring Diagram
ECM Communication Stop Mode [08/2015 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
