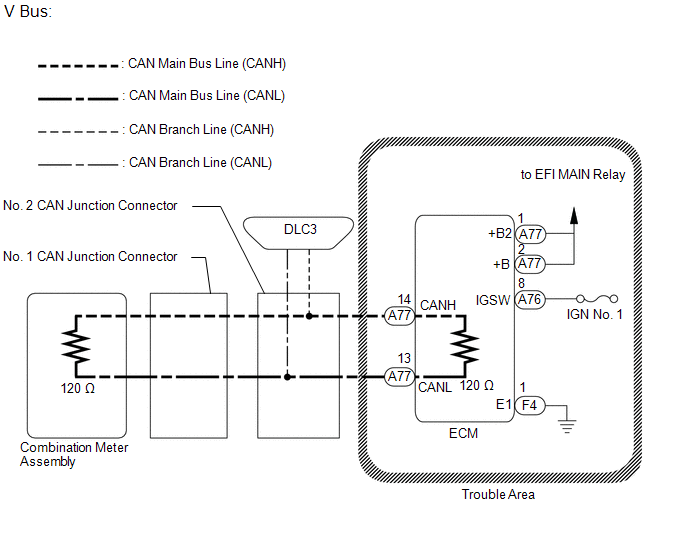

ECM Communication Stop Mode [04/2013 - 08/2015]: Wiring Diagram

GTY517429

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
