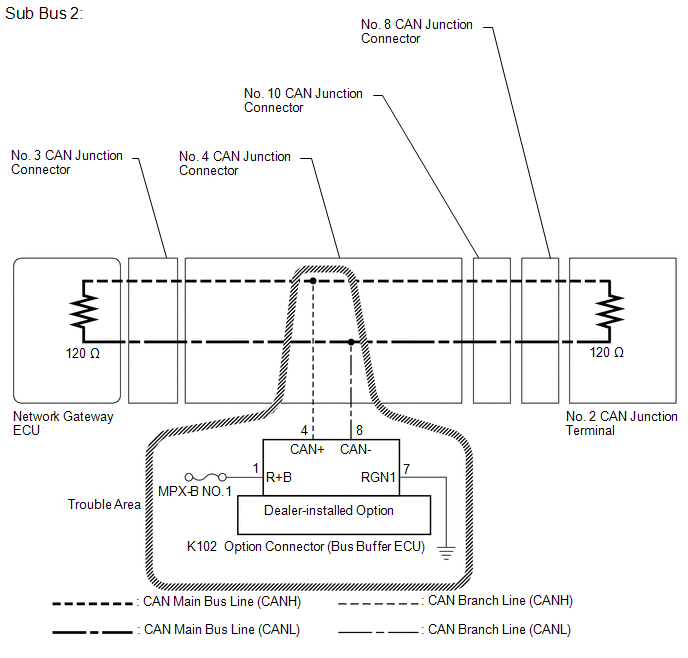

DTC U1117: Lost Communication with Accessory Gateway [04/2013 - 06/2014]: Wiring Diagram

GTY461952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
