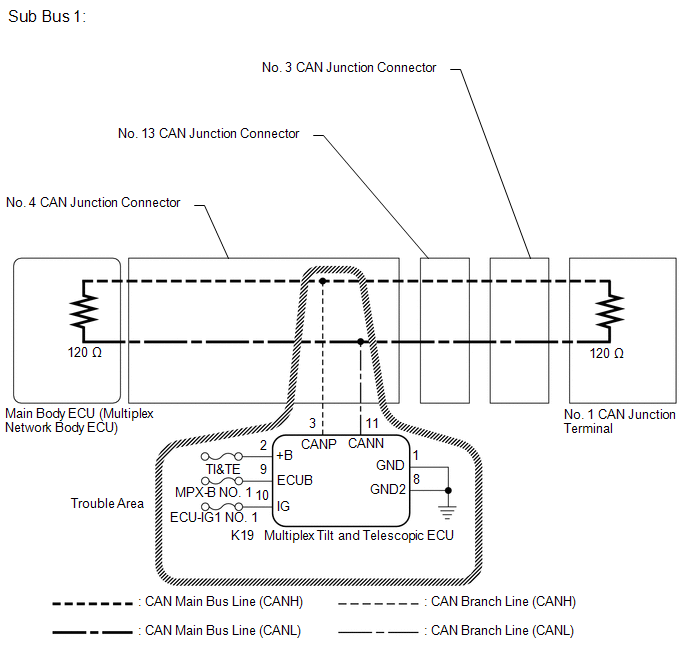

DTC U1115: Lost Communication with Tilt & Telescopic Module [06/2014 - 10/2016]: Wiring Diagram

GTY510189

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
