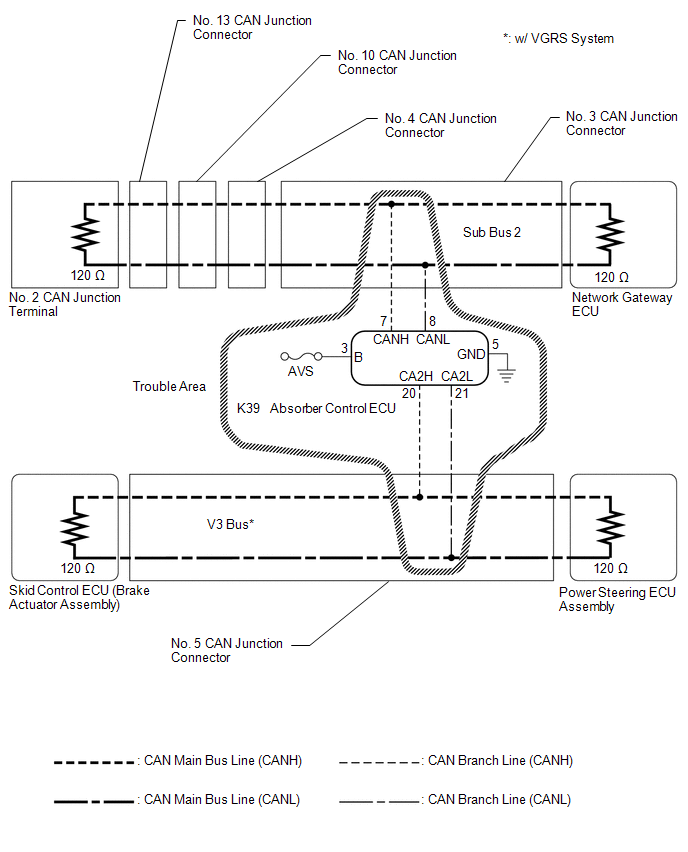

DTC U0132: Lost Communication with Suspension Control ECU [06/2014 - 10/2016]: Wiring Diagram

GTY501265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
