Parts Location [04/2013 - 10/2016]: Illustration
| *A | for AWD | - | - |
| *1 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 | FRONT SPEED SENSOR RH | *4 | FRONT SPEED SENSOR LH |
| *5 | REAR SPEED SENSOR RH | *6 | REAR SPEED SENSOR LH |
| *7 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*8 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - EFI-MAIN FUSE - STOP FUSE |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ENG-B FUSE - P/I-B FUSE |
*10 | ECM |
| *11 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR RH |
*12 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR LH |

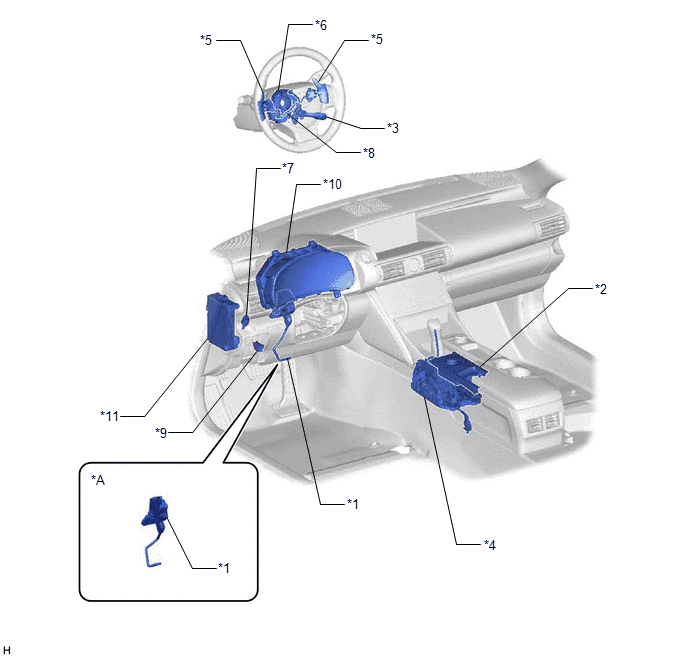

| *A | for AWD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | COMBINATION SWITCH ASSEMBLY |
| *3 | CRUISE CONTROL MAIN SWITCH (CRUISE CONTROL SWITCH) | *4 | LOWER SHIFT LEVER ASSEMBLY |
| *5 | SHIFT PADDLE SWITCH ASSEMBLY | *6 | SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY |
| *7 | STOP LIGHT SWITCH ASSEMBLY | *8 | CRUISE CONTROL SWITCH WIRE |
| *9 | DLC3 | *10 | COMBINATION METER ASSEMBLY |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IGN NO. 2 FUSE |
- | - |
