Parts Location [04/2013 - 08/2015]: Illustration

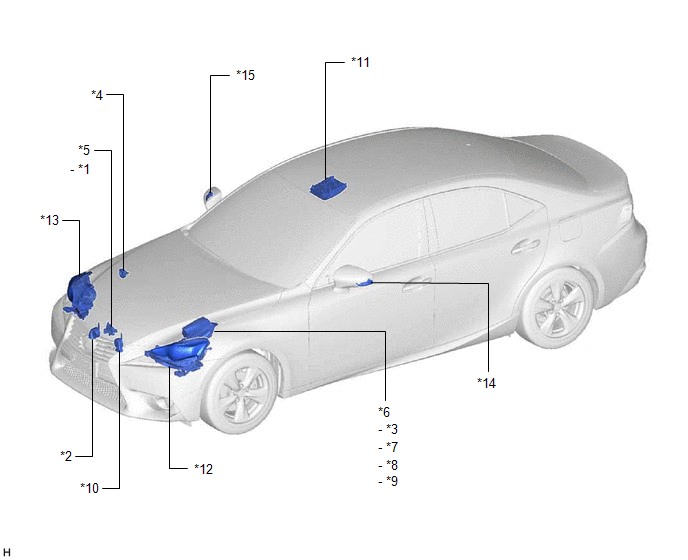

Fig 1: Theft Deterrent System Components Location (1 Of 3) [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE HOOD COURTESY SWITCH	*2	HIGH PITCHED HORN ASSEMBLY
*3	HORN RELAY	*4	SECURITY HORN ASSEMBLY (w/ Security Horn Assembly)
*5	HOOD LOCK ASSEMBLY	*6	NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
*7	S-HORN RELAY (w/ Security Horn Assembly)	*8	HORN FUSE
*9	S-HORN FUSE	*10	LOW PITCHED HORN ASSEMBLY
*11	MAP LIGHT ASSEMBLY - INTERIOR LIGHT	*12	HEADLIGHT ASSEMBLY LH - HEADLIGHT LH - TURN SIGNAL LIGHT LH
*13	HEADLIGHT ASSEMBLY RH - HEADLIGHT RH - TURN SIGNAL LIGHT RH	*14	TURN SIGNAL LIGHT LH
*15	TURN SIGNAL LIGHT RH	-	-

Fig 1: Theft Deterrent System Components Location (2 Of 3) [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE SWITCH	*2	COMBINATION METER ASSEMBLY
*3	AIR CONDITIONING CONTROL ASSEMBLY	*4	SECURITY INDICATOR LIGHT
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B FUSE - ECU-IG1 NO. 1 FUSE
*7	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*8	DLC3

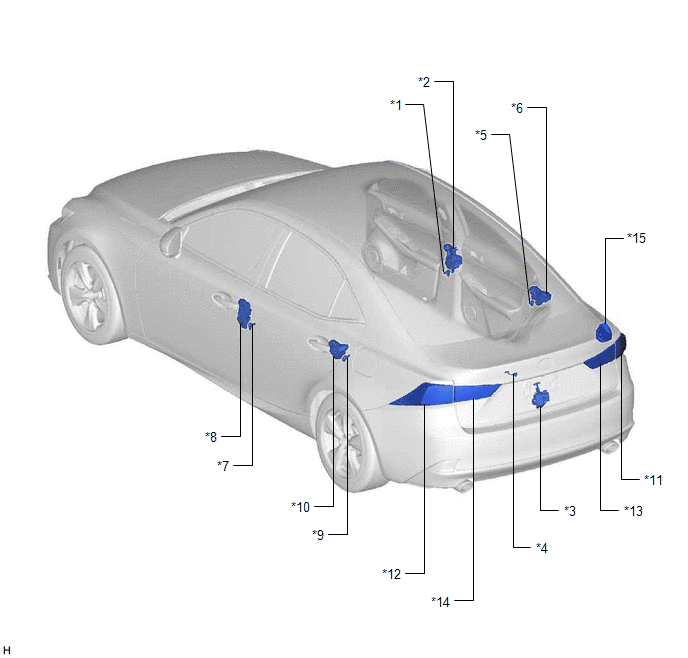

Fig 1: Theft Deterrent System Components Location (3 Of 3) [04/2013 - 08/2015]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)	*2	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH
*3	LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY	*4	DOOR UNLOCK SWITCH SUB-ASSEMBLY
*5	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)	*6	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH
*7	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*8	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
*9	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*10	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
*11	REAR COMBINATION LIGHT RH - TURN SIGNAL LIGHT RH - TAILLIGHT RH	*12	REAR COMBINATION LIGHT LH - TURN SIGNAL LIGHT LH - TAILLIGHT LH
*13	REAR LIGHT ASSEMBLY RH - TAILLIGHT RH	*14	REAR LIGHT ASSEMBLY LH - TAILLIGHT LH
*15	THEFT WARNING SIREN ASSEMBLY (w/o Security Horn Assembly)	-	-
