Parts Location [09/2022 - ]: Illustration

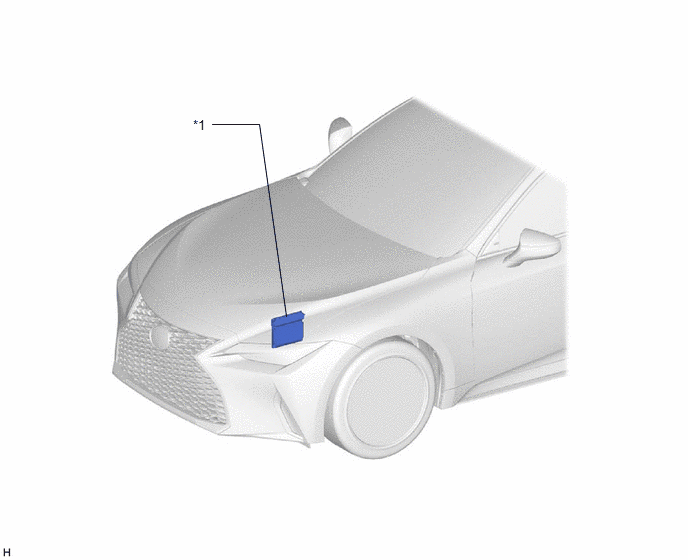

Fig 1: Immobilizer System Components Location (1 Of 2) [09/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ECM

-

-

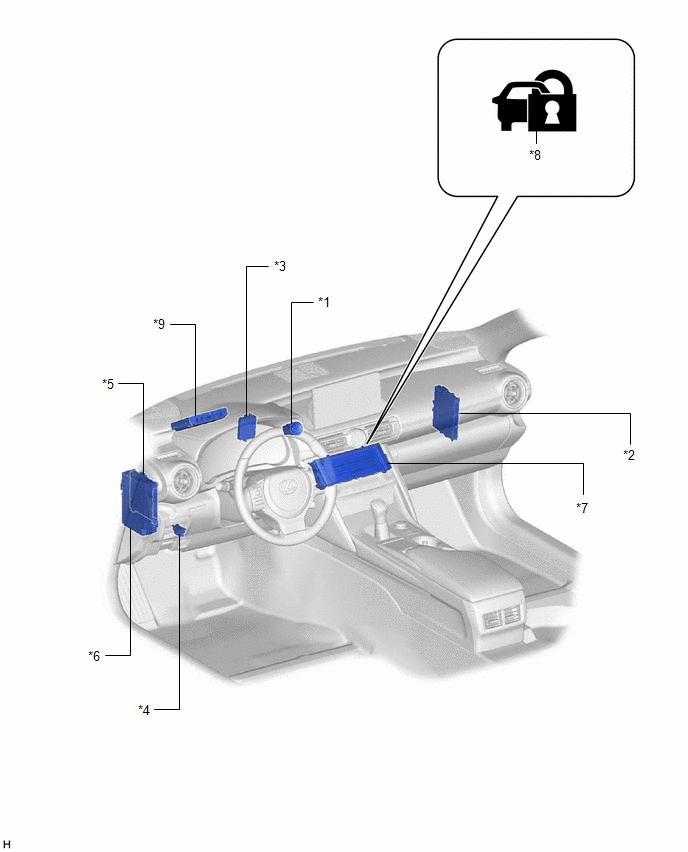

Fig 1: Immobilizer System Components Location (2 Of 2) [09/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ENGINE SWITCH	*2	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3	ID CODE BOX (IMMOBILISER CODE ECU)	*4	DLC3
*5	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*6	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - AM2 FUSE - SMART FUSE
*7	SECURITY INDICATOR LIGHT (AIR CONDITIONING CONTROL ASSEMBLY)	*8	SECURITY INDICATOR LIGHT
*9	DCM (TELEMATICS TRANSCEIVER) (w/ Lexus Enform Remote)	-	-
