System Description [04/2013 - 06/2014]
- OUTLINE OF COMBINATION METER ASSEMBLY
- except F SPORT models

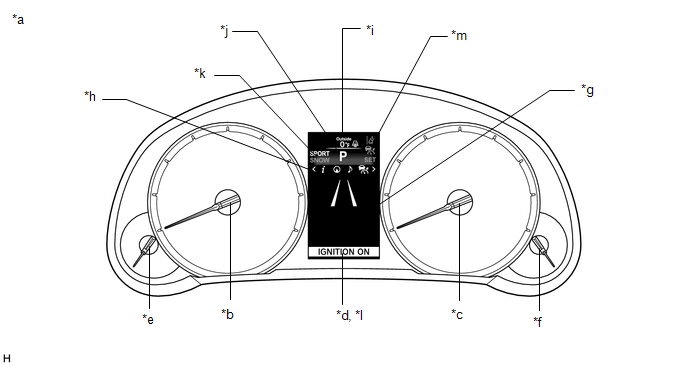

*a Indication Example *b Tachometer *c Speedometer *d Power Condition *e Engine Coolant Temperature Receiver Gauge *f Fuel Receiver Gauge *g Multi-information Display *h Tab *i Ambient Temperature, Icy Street Warning *j Shift Indicator or Gear Shift Indicator *k SPORT Indicator, SPORT S Indicator, SPORT S+ Indicator, ECO Indicator or SNOW Indicator *l ODO/TRIP Meter *m Cruise Main Indicator, Cruise SET Indicator, Radar Cruise Main Indicator or Lane Departure Alert Indicator - - - for F SPORT models

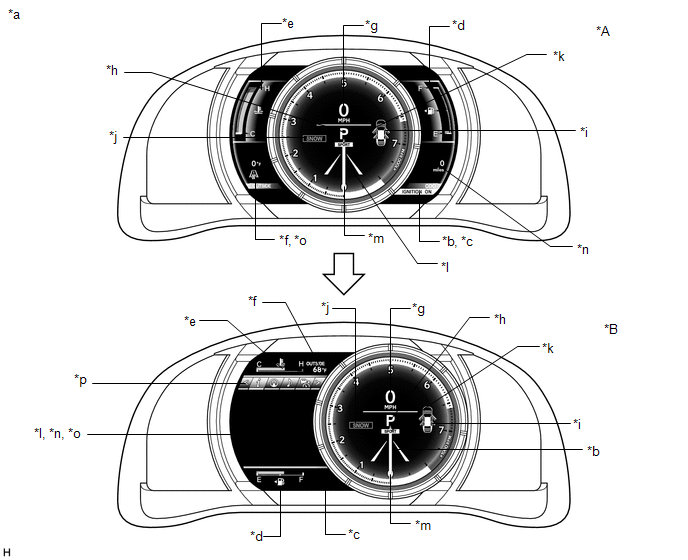

*A Movable Meter Ring not Activated *B Movable Meter Ring Activated *a Indication Example *b ODO/TRIP Meter *c Power Condition *d Fuel Receiver Gauge *e Engine Coolant Temperature Receiver Gauge *f Ambient Temperature, Icy Street Warning *g Speedometer or Speed Limiter *h Shift Indicator or Gear Shift Indicator *i Door Warning Indicator or Intuitive Parking Assist Indicator *j SNOW Indicator *k ECO MODE Indicator, SPORT Indicator, SPORT S Indicator or SPORT S+ Indicator *l Multi-information Display *m Tachometer or Rev Indicator *n Operation Guide (LHD) *o Operation Guide (RHD) *p Tab
- except F SPORT models
- INPUT AND OUTPUT SIGNALS OF COMBINATION METER ASSEMBLY
- Meter or Gauge
Item Condition Input/Output Communication line Signal Component Speedometer - Gauge*1
- Displayed*2
Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) - Direct line Vehicle speed pulse input signal Output CAN Vehicle speed signal (meter to other) Related ECUs Speed tolerance A signal - Driving support ECU assembly
- Lane departure warning camera
Speed tolerance B signal Direct line Vehicle speed pulse output signal Related ECUs Tachometer - Gauge*1
- Displayed*2
Input CAN Engine RPM data signal ECM Fuel receiver gauge - Gauge*1
- Displayed*2
Input CAN Fuel consumption signal ECM Engine RPM data signal Starter signal Shift position P signal Shift position R signal Shift position N signal Shift position D signal Mode indicator signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Direct line Vehicle speed pulse input signal Fuel level signal - Fuel sender gauge assembly
- No. 2 fuel sender gauge assembly
Output CAN Fuel gauge state signal - DCM (Telematics transceiver)
- Radio receiver assembly (w/ Navigation system)
Fuel gauge initial signal Fuel direct data signal Fuel initial signal Fuel average signal Fuel consumption scale signal Engine coolant temperature receiver gauge - Gauge*1
- Displayed*2
Input CAN Engine coolant temperature signal ECM - *1: except F SPORT models
- *2: for F SPORT models
- Warning or Indicator
Item Condition Input/Output Communication line Signal Component Master warning light Comes on/Blinks Input CAN/Direct line Each warning signal Related ECUs Door open warning light Comes on Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) Front passenger door courtesy switch signal Rear right door courtesy switch signal Rear left door courtesy switch signal Luggage courtesy switch signal Brake warning light Comes on Input CAN Brake warning light control flag signal Brake actuator assembly (Skid control ECU) Parking brake switch signal Main body ECU (Multiplex network body ECU) Direct line Brake fluid level warning switch signal Brake master cylinder reservoir assembly (Brake fluid level warning switch) Driver or front passenger seat belt warning light Comes on/Blinks Input CAN Driver seatbelt buckle switch signal Main body ECU (Multiplex network body ECU) Parking brake switch signal Shift position P signal ECM Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Front passenger seat occupant detection status signal Airbag sensor assembly Front passenger seat belt buckle switch detection status signal SRS warning light Comes on Input CAN Airbag warning light control request signal Airbag sensor assembly Test mode signal ECM Charge warning light Comes on Input CAN Charge light indicator signal ECM Direct line Charge L terminal signal Generator assembly EPS warning light Comes on/Blinks Input CAN EPS warning light request signal Power steering ECU assembly MIL (Check engine warning light) Comes on/Blinks Input CAN MIL request signal ECM PCS warning light*5 Comes on/Blinks Input CAN PCS indicator display signal Driving support ECU assembly Slip indicator light Comes on/Blinks Input CAN Slip indicator signal Brake actuator assembly (Skid control ECU) VSC OFF indicator light Comes on Input CAN VSC OFF light signal Brake actuator assembly (Skid control ECU) ABS warning light Comes on/Blinks Input CAN ABS warning light control flag signal Brake actuator assembly (Skid control ECU) Tire pressure warning light Comes on Input CAN TPMS warning indicator condition 1 signal Main body ECU (Multiplex network body ECU) Fuel level warning light Comes on Input Direct line Fuel level signal Fuel sender gauge assembly No. 2 fuel sender gauge assembly Headlight leveling indicator light Comes on Input CAN Starter signal ECM Head light leveling indicator signal Headlight leveling ECU assembly Automatic high beam indicator light*7 Comes on Input CAN Smart Beam indicator signal Main body ECU (Multiplex network body ECU) Lane departure alert indicator light*2, *6 Comes on Input CAN Indicator display signal Lane departure warning camera LDW existance flag signal Cruise main indicator light*2, *3 Comes on Input CAN Cruise main indicator signal ECM Cruise control warning signal Cruise main indicator light*2, *4 Comes on Input CAN Following distance time signal Driving support ECU assembly FSRA mode flag signal Cruise control warning signal Cruise operation indicator signal Radar cruise main indicator light*2, *4 Comes on Input CAN Following distance time signal Driving support ECU assembly FSRA mode flag signal Cruise control warning signal Cruise operation indicator signal High beam indicator light Comes on Input CAN High beam headlight request signal Main body ECU (Multiplex network body ECU) Head indicator light Comes on Input CAN Low beam headlight request signal Main body ECU (Multiplex network body ECU) Front fog indicator light*9 Comes on Input CAN Front fog light request signal Main body ECU (Multiplex network body ECU) Turn indicator light Blinks Input Direct line LH turn switch signal Windshield wiper switch assembly RH turn switch signal Hazard warning switch signal Air conditioner control assembly CAN Hazard light activation request signal DCM (Telematics transceiver) - Output CAN Turn light state signal Blind spot monitor sensor LH Driving support ECU assembly Lane departure warning camera Hazard switch state signal Radio receiver assembly (w/ Navigation system) Radio receiver assembly DCM (Telematics transceiver) Brake actuator assembly (Skid control ECU) Direct line LH turn switch signal Each turn signal light RH turn switch signal Hazard warning switch signal Eco driving indicator light Comes on Input CAN Ecology light indicator signal ECM Cruise SET indicator light*2, *3 Comes on Input CAN Cruise set indicator signal ECM Cruise SET indicator light*2, *4 Comes on Input CAN Cruise set indicator signal Driving support ECU assembly Clearance sonar indicator light*8 Comes on Input CAN CLSO main switch indicator turn ON signal Clearance warning ECU assembly - *1: except F SPORT models
- *2: for F SPORT models
- *3: w/ Cruise control system
- *4: w/ Dynamic radar cruise control system
- *5: w/ Pre-collision system
- *6: w/ Lane departure alert system
- *7: w/ Automatic high beam system
- *8: w/ Intuitive parking assist system
- *9: w/ Front fog light
- Multi-information Display
Item Condition Input/Output Communication line Signal Component Opening - - - - - Ending - - - - - ODO meter Displayed Input CAN Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU) Vehicle speed (SP1) signal Direct line ODO/TRIP change switch signal Trip switch - Output CAN Odo meter unit signal Related ECUs Odo meter signal TRIP meter Displayed Input CAN Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU) Vehicle speed (SP1) signal Direct line ODO/TRIP change switch signal Trip switch - Output CAN TRIP A signal DCM (Telematics transceiver) TRIP B signal Current fuel consumption (Bar type) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Fuel consumption signal ECM Engine RPM data signal Average fuel consumption (After reset) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Fuel consumption signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal Direct line Reset signal Steering pad switch assembly - Output CAN Unit signal Radio receiver assembly (w/ Navigation system) Monitor signal Average fuel consumption (After start) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Fuel consumption signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal - Output Unit signal Radio receiver assembly (w/ Navigation system) Monitor signal Average fuel consumption (After refuel) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Fuel consumption signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal - Output Monitor signal Radio receiver assembly (w/ Navigation system) Average speed (After reset) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal Direct line Reset signal Steering pad switch assembly Average speed (After start) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal - Output Unit signal Radio receiver assembly (w/ Navigation system) Monitor signal Elapsed time (After reset) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Direct line Reset signal Steering pad switch assembly - Output CAN Monitor signal Radio receiver assembly (w/ Navigation system) Elapsed time (After start) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM - Output Monitor signal Radio receiver assembly (w/ Navigation system) Distance (Range) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine type information 1 signal ECM Engine type information 2 signal Engine type information 3 signal Engine type information 4 signal Engine RPM data signal Drivetrain information signal Fuel consumption signal Vehicle speed pulse signal integrated value signal Brake actuator assembly (Skid control ECU) - Output Unit signal Radio receiver assembly (w/ Navigation system) Monitor signal Distance (After start) Displayed Input CAN ACC switch signal Main body ECU (Multiplex network body ECU) Engine RPM data signal ECM Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle speed pulse signal integrated value signal - Output Unit signal Radio receiver assembly (w/ Navigation system) Monitor signal Eco driving indicator zone Displayed Input CAN Eco-zone indicator level signal ECM Other (Blank) - - - - - Tire pressure Displayed Input CAN TPMS FL (ID1) tire pressure information signal Main body ECU (Multiplex network body ECU) TPMS FR (ID2) tire pressure information signal TPMS RL (ID3) tire pressure information signal TPMS RR (ID4) tire pressure information signal TPMS SP (ID5) tire pressure information signal TPMS FL (ID1) tire indicator information 0 signal TPMS FR (ID2) tire indicator information 0 signal TPMS RL (ID3) tire indicator information 0 signal TPMS RR (ID4) tire indicator information 0 signal TPMS SP (ID5) tire indicator information 0 signal TPMS indicator number information 0 signal TPMS unit information 0 signal TPMS display request bit 0 signal TPMS variation signal Drive information tab Displayed - - - - Navigation tab*9 Displayed Input CAN/Local bus/GVIF*9 Navigation signal Radio receiver assembly (w/ Navigation system) Audio tab Displayed Input CAN/Local bus/GVIF*9 Audio signal Radio receiver assembly (w/ Navigation system) Cruise control operation guide tab Displayed Input CAN - Driving support ECU assembly Message tab Displayed - - - - Setting tab Displayed - - - - Shift selector Displayed Input CAN Shift position P signal ECM Shift position R signal Shift position N signal Shift position D signal Shift gear signal Mode indicator signal Sports mode enable signal Transmission oil temperature range signal GEAR shift indicator Displayed Input CAN Shift up signal ECM Shift down signal SPORT indicator*15 Displayed Input CAN Integrated sport mode indicator ECM SPORT S indicator*10 Displayed Input CAN Integrated sport mode signal ECM SPORT S+ indicator*10 Displayed Input CAN AVS (TEMS) light signal Absorber control ECU Integrated sport mode signal ECM ECO/ECO MODE indicator Displayed Input CAN Eco mode indicator signal ECM SNOW indicator Displayed Input CAN ECT SNOW indicator signal ECM Cruise SET indicator*1, *3 Displayed Input CAN Cruise set indicator signal ECM Cruise SET indicator*1, *4 Displayed Input CAN Cruise set indicator signal Driving support ECU assembly Cruise main indicator*1, *3 Displayed Input CAN Cruise main indicator signal ECM Cruise control warning signal Cruise main indicator*1, *4 Displayed Input CAN Following distance time signal Driving support ECU assembly FSRA mode flag signal Cruise control warning signal CRUISE operation indicator signal Radar cruise main indicator*1, *4 Displayed Input CAN Following distance time signal Driving support ECU assembly FSRA mode flag signal Cruise control warning signal CRUISE operation indicator signal Lane departure alert indicator*1, *6 Displayed Input CAN Indicator display signal Lane departure warning camera Outside temp Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly 0 or 0.5 below decimal point of ambient temperature display switch signal Icy Street warning Displayed Input CAN Ambient temperature display signal Air conditioning amplifier assembly 0 or 0.5 below decimal point of ambient temperature display switch signal Phone (Received Call)*9 Displayed Input CAN/Local bus/GVIF*9 Phone (Received call) signal Radio receiver assembly (w/ Navigation system) Turn-by-turn Navigation*9 Displayed Input CAN/Local bus/GVIF*9 Turn-by-turn signal Radio receiver assembly (w/ Navigation system) Vehicle speed warning indicator*2 Displayed Input CAN Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) REV indicator*2 Displayed Input CAN Engine RPM data signal ECM REV peak*2 Displayed Input CAN Engine RPM data signal ECM Movable meter ring operation guide*2 Displayed - - - - Light control switch guide Displayed Input CAN Auto switch position signal Main body ECU (Multiplex network body ECU) DRL OFF switch position signal Front fog light request signal Rear fog light request signal LIN Distinction signal of wiper right/left Windshield wiper switch assembly Wiper switch guide Displayed Input LIN Volume signal for wiper adjustment signal Windshield wiper switch assembly Auto position signal of wiper switch signal AUTO mode cancellation signal Distinction signal of wiper right/left signal Momentary switch HI position recognition signal Momentary switch WPUP position recognition signal Momentary switch AUTO position recognition signal Cruise control main switch guide Displayed Input CAN Following distance time signal Driving support ECU assembly Control vehicle speed signal FSRA mode flag signal Cruise set indicator signal Cruise control warning signal Cruise operation indicator signal Radar cruise warning signal Cruise control set/coast switch signal Cruise control resume/accelerate switch signal Cruise control cancel switch signal Cruise set indicator signal ECM Cruise control warning signal Cruise main indicator signal ACCESSORY Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) IGNITION ON Displayed Input CAN Display request of vehicle mode signal Certification ECU (Smart key ECU assembly) AWD Test Mode*11 Displayed Input CAN 4WD warning ON and flashing request signal 4WD control ECU VGRS Test Mode*12 Displayed Input CAN Demand signal to meter Steering control ECU Adjusting LDA Camera*6 Displayed Input CAN Camera adjustment mode text display signal Lane departure warning camera Adjusting Front Radar Beam*4 Displayed Input CAN Inspection mode for ACC signal Driving support ECU assembly BRAKE!*5 Displayed Input CAN PCS warning message signal Driving support ECU assembly Holding in Engine Switch Will Cause an Emergency Engine Stop. Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) To Restart Car, Shift Lever to "N" and Press Engine Switch. Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) The Engine Has Stopped. Please Put Shift Lever into "P". Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) The Engine Has Stopped. Please Stop Your Car in a Safe Place. Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) To Restart Car, Shift Lever to "N" and Press Engine Switch. Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) Dynamic radar cruise control or Lane departure alert warning reminder indicator*4, *6 Displayed Input CAN ACC display ID 1 signal Driving support ECU assembly ACC display ID 2 signal Brake Malfunction Displayed Input CAN Brake warning light control flag signal Brake actuator assembly (Skid control ECU) The Accelerator is Stuck. Please Depress Brake Pedal to Stop Car. Displayed Input CAN BOS Multi-information request signal ECM Each door ajar (vehicle being driven) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) Front passenger door courtesy switch signal Rear right door courtesy switch signal Rear left door courtesy switch signal Luggage courtesy switch signal Hood courtesy switch signal Steering wheel signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Each door ajar (vehicle stopped) Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) Front passenger door courtesy switch signal Rear right door courtesy switch signal Rear left door courtesy switch signal Luggage courtesy switch signal Hood courtesy switch signal Steering wheel signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Clearance sonar detection (image display)*8 Displayed Input CAN Clearance sonar main switch indicator turn ON signal Clearance warning ECU assembly Cluster indicator turn ON request signal Front center area information signal Front left area information signal Front right area information signal Rear center area information signal Rear left area information signal Rear right area information signal Sensor diag request signal Check Park Sonar System*8 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly Clean Park Sonar*8 Displayed Input CAN Sensor diag request signal Clearance warning ECU assembly Auto Power OFF to Conserve Battery Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) EPS Failure. Steering Wheel Harder to Turn. Displayed Input CAN Multi-information request signal Power steering ECU assembly Voltage Abnormality. Steering Wheel Harder to Turn. Displayed Input CAN Multi-information request signal Power steering ECU assembly Check Power Steering System Displayed Input CAN Multi-information request signal Power steering ECU assembly Release Parking Brake Displayed Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU) Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Key not detected Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) 1st Gear not available due to slippery road surface Displayed Input CAN Reject flag of range for low gear signal ECM Check SRS Airbag System Displayed Input CAN SRS warning light control request signal Airbag sensor assembly Check ABS Displayed Input CAN ABS warning light Control Flag signal Brake actuator assembly (Skid control ECU) Engine Coolant High Temperature Displayed Input CAN Engine coolant temperature signal ECM Clean Radar Sensor*4 Displayed Input CAN Cruise control warning signal Driving support ECU assembly Detection of dirt adhesion on sensor signal Cruise Control not available*4 Displayed Input CAN Cruise control warning signal Driving support ECU assembly Detection of dirt adhesion on sensor signal Bad weather detection signal LDA not available*6 Displayed Input CAN Temporary unusable condition text display signal Lane departure warning camera Check Access System with Elec. Key Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) BSM not available*13 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH Check Cruise Control System*4 Displayed Input CAN Cruise control warning signal Driving support ECU assembly Stop holding signal Check Cruise Control System*3 Displayed Input CAN Cruise control warning signal ECM Check LDA System*6 Displayed Input CAN Fault condition text display signal Lane departure warning camera Check PCS System*5 Displayed Input CAN PCS fault condition text display signal Driving support ECU assembly Check BSM System*13 Displayed Input CAN BSD module status signal Blind spot monitor sensor LH Engine Oil Pressure Low Displayed Input Direct line Engine oil pressure signal Engine oil pressure switch assembly Transmission Fluid High Temperature Displayed Input CAN AT oil temperature warning signal ECM Check AWD System*11 Displayed Input CAN 4WD warning ON and flashing request signal 4WD control ECU Check VGRS System*12 Displayed Input CAN Demand signal to meter Steering control ECU Dynamic radar cruise control*4 or Lane departure alert*6 indicator Displayed Input CAN ACC display ID 1 signal Driving support ECU assembly ACC display ID 2 signal White line symbol left side signal Lane departure warning camera White line symbol right side signal Engine Stopped, Steering Wheel Harder to Turn. Displayed Input CAN Multi-information request signal Power steering ECU assembly Turn Power OFF Displayed Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) Key detected in vehicle Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) Turn Light Off Displayed Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) Lighting system state signal Moon Roof opened*14 Displayed Input CAN Slide roof open warning request signal Main body ECU (Multiplex network body ECU) Window opened Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU) Window / Moon Roof opened*14 Displayed Input CAN Power window open warning request signal Main body ECU (Multiplex network body ECU) Slide roof open warning request signal Depress brake pedal, touch engine switch with key Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) Depress brake pedal and push engine switch to start Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) Depress brake pedal and push engine switch to start Displayed Input CAN Smart system warning 3 signal Certification ECU (Smart key ECU assembly) The Accelerator is Stuck. Please Check the Accelerator. Displayed Input CAN BOS Multi-information request signal ECM Steering Lock active Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) Brake Override System Failure. Displayed Input CAN BOS Multi-information request signal ECM Key Battery Low Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) Engine Oil Level Low Displayed Input CAN Engine coolant temperature signal ECM Direct line Engine oil level signal Engine oil level sensor Check Headlight System Displayed Input CAN Smart beam indicator signal Main body ECU (Multiplex network body ECU) LED headlight indicator signal Headlight leveling indicator signal Headlight leveling ECU assembly Starter signal ECM Both Accelerator and Brake Pedals Are Depressed. Displayed Input CAN BOS Multi-information request signal ECM Tire pressure indicator Displayed Input CAN TPMS display request bit 0 signal Main body ECU (Multiplex network body ECU) Check VGRS System*12 Displayed Input CAN Demand signal to meter Steering control ECU Washer Fluid Low Displayed Input Direct line Washer fluid level signal Level warning switch assembly Fuel Low Displayed Input Direct line Fuel level signal - Fuel sender gauge assembly
- No. 2 fuel sender gauge assembly
TRAC OFF Displayed Input CAN TRAC OFF light signal Brake actuator assembly (Skid control ECU) Starter signal ECM Maintenance required soon Displayed Input CAN Oil change indicator signal ECM Starter signal Injector Maintenance required soon Displayed Input CAN Injector change indicator signal ECM Maintenance required Displayed Input CAN Oil change indicator signal ECM Starter signal Injector Maintenance required Displayed Input CAN Injector change indicator signal ECM Turn on the high beam to activate AHB System*7 Displayed Input CAN Smart beam advice signal Main body ECU (Multiplex network body ECU) Resetting Maintenance Data Displayed Input CAN Oil change indicator signal ECM Resetting Maintenance Data incomplete Displayed Input CAN Oil change indicator signal ECM Depress brake pedal and push engine switch to start Displayed Input CAN Smart system warning 1 signal Certification ECU (Smart key ECU assembly) VSC System Switched Off. Pre-Collision Brake System Disengaged.*5 Displayed Input CAN PB temporary unusable condition text display signal Driving support ECU assembly PCS temporarily not available*5 Displayed Input CAN PCS temporary unusable condition text display signal Driving support ECU assembly Operation of Electrical Items Restricted. Displayed Input CAN A/C load limitation warning signal Air conditioning amplifier assembly LDA System is Unavailable Below 50 km/h.*6 Displayed Input CAN Speed condition failure text display signal Lane departure warning camera LDA System is Unavailable Below 32 MPH.*6 Displayed Input CAN Speed condition failure text display signal Lane departure warning camera LDA System is Unavailable at this Speed.*6 Displayed Input CAN Speed condition failure text display signal Lane departure warning camera Theft Sensor OFF Displayed Input CAN Invasion sensor state display signal Main body ECU (Multiplex network body ECU) Theft Sensor ON Displayed Input CAN Invasion sensor state display signal Main body ECU (Multiplex network body ECU) - *1: except F SPORT models
- *2: for F SPORT models
- *3: w/ Cruise control system
- *4: w/ Dynamic radar cruise control system
- *5: w/ Pre-collision system
- *6: w/ Lane departure alert system
- *7: w/ Automatic high beam system
- *8: w/ Intuitive parking assist system
- *9: w/ Navigation system
- *10: w/ Adaptive variable suspension system
- *11: w/ Four wheel drive control system
- *12: w/ Variable gear ratio steering system
- *13: w/ Blind spot monitor system
- *14: w/ Sliding roof system
- *15: w/o Adaptive variable suspension system
- Buzzer
Item Condition Input/Output Communication line Signal Component Seat belt warning (for Driver side) Sounds intermittently (Maximum 5 times) Input CAN Driver side seatbelt switch signal Main body ECU (Multiplex network body ECU) Restart while driving notification Sounds continuously Input CAN Smart system warning 2 signal Certification ECU (Smart key ECU assembly) Engine switch operation while driving warning Sounds intermittently Input CAN SW operation buzzer intermittence request signal Certification ECU (Smart key ECU assembly) Seat belt warning (for Driver side) Sounds once/Sounds intermittently Input CAN Driver seat buckle switch signal Main body ECU (Multiplex network body ECU) Parking brake switch signal Shift position P signal ECM Shift position R signal Seat belt warning (for Front passenger side) Sounds once/Sounds intermittently Input CAN Front passenger seat occupant detection status signal Airbag sensor assembly Front passenger seat belt buckle switch status signal Airbag sensor assembly Parking brake switch signal Main body ECU (Multiplex network body ECU) Shift position P signal ECM Shift position R signal Vehicle roll-away notification (STEP 1) Sounds continuously Input CAN Engine RPM data signal ECM Shift position P signal Shift position N signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Vehicle roll-away notification (STEP 2) Sounds continuously Input CAN Engine RPM data signal ECM Shift position P signal Shift position N signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Brake fluid low warning Sounds intermittently Input CAN Buzzer control flag signal Brake actuator assembly (Skid control ECU) Oil pressure warning Sounds intermittently Input Direct line Engine oil pressure signal Engine oil pressure switch assembly EPS warning Sounds once Input CAN Demand buzzer to meter signal Power steering ECU assembly Engine coolant temperature warning Sounds once Input CAN Engine coolant temperature signal ECM Smart key warning Sounds intermittently Input CAN Meter buzzer intermittence request (0.7 sec cycle) signal Certification ECU (Smart key ECU assembly) Hill-start assist control (Reset) Sounds twice Input CAN Buzzer control flag signal Brake actuator assembly (Skid control ECU) Hill-start assist control (Set) Sounds once Input CAN Buzzer control flag signal Brake actuator assembly (Skid control ECU) Smart key warning Sounds intermittently (Maximum 9 times) Input CAN Meter buzzer intermittence request (0.7 sec cycle) signal Certification ECU (Smart key ECU assembly) Smart key warning Sounds once Input CAN Meter buzzer single-shot request signal Certification ECU (Smart key ECU assembly) Multi-information display warning Sounds once Input CAN Multi-information display warning signal Related ECUs Direct line Radar cruise control low speed cancel*1 Sounds twice Input CAN Low speed cancel buzzer request signal Driving support ECU assembly Immobiliser key identification completion Sounds once Input CAN Immobiliser key identification completion signal Certification ECU (Smart key ECU assembly) Driving with parking brake unreleased warning Sounds intermittently Input CAN Parking brake switch signal Main body ECU (Multiplex network body ECU) Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Driving with door ajar warning Sounds intermittently Input CAN Driver door courtesy switch signal Main body ECU (Multiplex network body ECU) Front passenger door courtesy switch signal Rear right door courtesy switch signal Rear left door courtesy switch signal Luggage courtesy switch signal Hood courtesy switch signal Vehicle speed (SP1) signal Brake actuator assembly (Skid control ECU) Sports shift reject Sounds twice Input CAN Reject buzzer signal ECM Light reminder Sounds continuously Input CAN Lighting system state signal Main body ECU (Multiplex network body ECU) Driver door courtesy switch signal Turn signal flasher Sounds intermittently Input Direct line LH turn switch signal Windshield wiper switch assembly RH turn switch signal Hazard warning switch signal Air conditioning control assembly - *: w/ Dynamic radar cruise control system
- Others
Item Condition Input/Output Communication line Signal Component Meter illumination Illumination level Input CAN Illuminance data signal Main body ECU (Multiplex network body ECU) Auto dimmer signal Tail light request signal Parked condition signal Panel lighting request signal Direct line Illumination level signal Trip switch assembly - Output CAN Rheostat duty signal Related ECUs Lounge illumination off signal Tail cancel signal Direct line Illumination level output signal
- Meter or Gauge
- MULTI-INFORMATION DISPLAY FLOW CHART

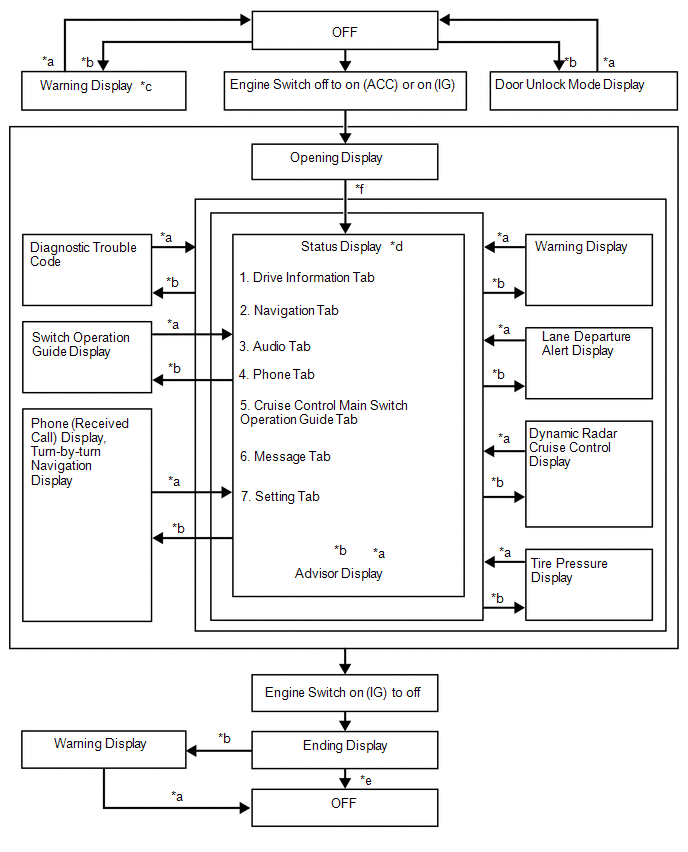

- Multi-information display (except F SPORT models) flow chart
*a Conditions are met *b Conditions are not met *c If there are multiple display requests, items will be displayed in sequence *d Item or display is selected by operating the DISP switch *e ODO display is displayed for a certain period of time after the engine switch is turned off *f After engine switch on (IG) - Multi-information display (for F SPORT models) flow chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

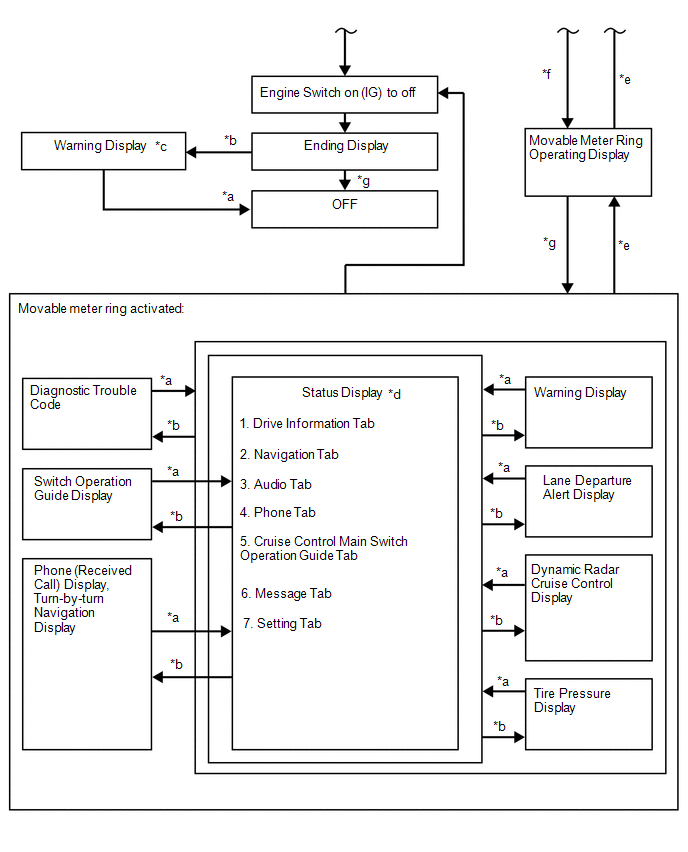

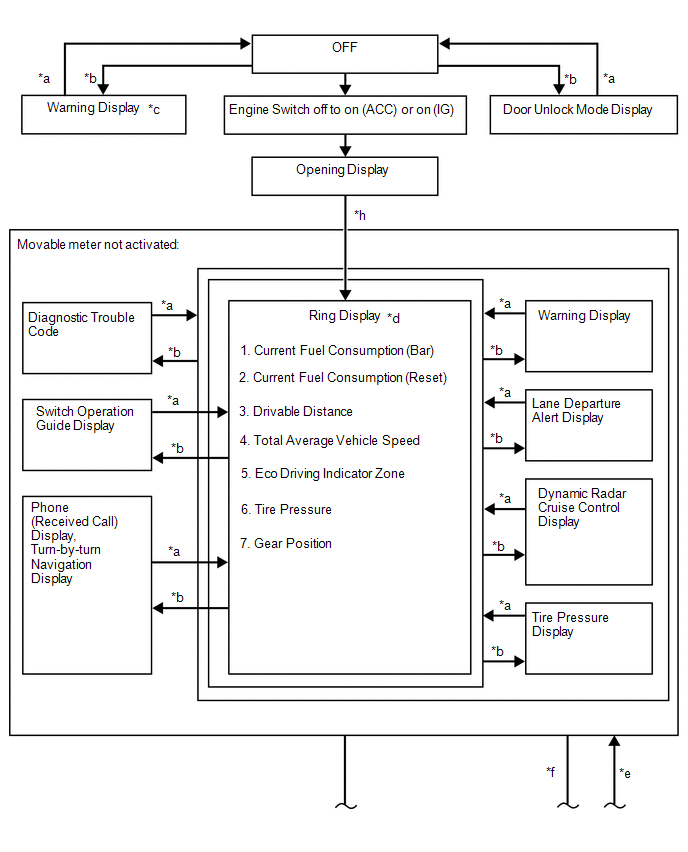

*a Conditions are met *b Conditions are not met *c If there are multiple display requests, items will be displayed in sequence *d Item or display is selected by operating the DISP switch *e Operating the TOP switch *f ODO display is displayed for a certain period of time after the engine switch is turned off *g Movable meter ring activated *h After engine switch on (IG)
- Multi-information display (except F SPORT models) flow chart
- DESCRIPTION OF WARNING DISPLAYS
Priority System name/(Vehicle Function) Master Warning Light
◦: Comes on
•: BlinksBuzzer (*1) Display Level 1 Four wheel drive control system - - AWD Test Mode Caution Variable gear ratio steering system - - VGRS Test Mode Caution Lane departure alert system - - Adjusting LDA Camera Caution Dynamic radar cruise control system - - Adjusting Front Radar Beam Caution Pre-collision system - - BRAKE! Warning Smart access system with push-button start • * Holding in Engine Switch Will Cause an Emergency Engine Stop. Warning Smart access system with push-button start • * To Restart Car, Shift Lever to "N" and Press Engine Switch. Caution Smart access system with push-button start • * The Engine Has Stopped. Please Put Shift Lever into "P". Caution (Vehicle roll-away warning) • * The Engine Has Stopped. Please Stop Your Car in a Safe Place. Caution (Vehicle roll-away warning) • * To Restart Car, Shift Lever to "N" and Press Engine Switch. Caution 2 Dynamic radar cruise control system or Lane departure alert system - - Dynamic radar cruise control or Lane departure alert warning reminder indicator - Vehicle stability control system ◦ ◦ Brake Malfunction Warning Brake override system • ◦ The Accelerator is Stuck. Please Depress Brake Pedal to Stop Car. Caution 3 (Each door warning (vehicle being driven)) • * Each door ajar (vehicle being driven) Caution (Each door warning (vehicle being stopped)) - - Each door ajar (vehicle stopped) Caution Intuitive parking assist system ◦ - Clearance sonar detection (image display) Caution Intuitive parking assist system ◦ - Check Park Sonar System Caution Intuitive parking assist system ◦ - Clean Park Sonar Caution 4 Smart access system with push-button start - - Auto Power OFF to Conserve Battery Caution 5 Power steering system ◦ * EPS Failure. Steering Wheel Harder to Turn. Caution Power steering system ◦ * Voltage Abnormality. Steering Wheel Harder to Turn. Caution Power steering system ◦ * Check Power Steering System Caution (Parking brake) • * Release Parking Brake Caution Smart access system with push-button start • * Key not detected Caution 6 Automatic transmission system ◦ * 1st Gear not available due to slippery road surface Caution 7 Airbag system ◦ ◦ Check SRS Airbag System Caution Vehicle stability control system - ◦ Check ABS Caution SFI system ◦ ◦ Engine Coolant High Temperature Caution Dynamic radar cruise control system ◦ ◦ Clean Radar Sensor Caution Dynamic radar cruise control system ◦ ◦ Cruise Control not available Caution Lane departure alert system ◦ ◦ LDA not available Caution Smart access system with push-button start • * Check Access System with Elec. Key Caution Blind spot monitor system ◦ ◦ BSM not available Caution Dynamic radar cruise control system ◦ ◦ Check Cruise Control System Caution Lane departure alert system ◦ ◦ Check LDA System Caution Pre-collision system ◦ ◦ Check PCS System Caution Blind spot monitor system ◦ ◦ Check BSM System Caution (Engine oil pressure switch assembly) ◦ * Engine Oil Pressure Low Caution Automatic transmission system ◦ ◦ Transmission Fluid High Temperature Caution Four wheel drive control system ◦ ◦ Check AWD System Caution Variable gear ratio steering system ◦ ◦ Check VGRS System Caution 8 Dynamic radar cruise control system or Lane departure alert system - - Dynamic radar cruise control or Lane departure alert indicator - Power steering system ◦ * Engine Stopped, Steering Wheel Harder to Turn. Caution Smart access system with push-button start • * Turn Power OFF Caution Smart access system with push-button start • ◦ Key detected in vehicle Caution Lighting system • * Turn Light Off Caution Sliding roof system • ◦ Moon Roof opened Caution Power window control system • ◦ Window opened Caution Power window control system or Sliding roof system • ◦ Window / Moon Roof opened Caution Smart access system with push-button start • * Depress brake pedal, touch engine switch with key Caution Smart access system with push-button start - - Depress brake pedal and push engine switch to start Caution Smart access system with push-button start - - Depress brake pedal and push engine switch to start Caution Brake override system • ◦ The Accelerator is Stuck. Please Check the Accelerator. Caution Steering lock system • * Steering Lock active Caution 9 Brake override system ◦ ◦ Brake Override System Failure. Caution 10 Smart access system with push-button start ◦ * Key Battery Low Caution (Engine oil level sensor) ◦ ◦ Engine Oil Level Low Caution Lighting system, Automatic headlight beam level control system or Automatic high beam system ◦ ◦ Check Headlight System Caution Brake override system • - Both Accelerator and Brake Pedals Are Depressed. Advisory Tire pressure warning system - - Tire pressure indicator Advisory 11 Variable gear ratio steering system ◦ - Check VGRS System Caution (Level warning switch assembly) - - Washer Fluid Low Advisory (Fuel sender gauge assembly)
(No. 2 fuel sender gauge assembly)- - Fuel Low Advisory Vehicle stability control system - - TRAC OFF Caution SFI system - - Maintenance required soon Advisory SFI system - - Injector Maintenance required soon Advisory SFI system ◦ - Maintenance required Advisory SFI system ◦ - Injector Maintenance required Advisory Automatic high beam system - - Turn on the high beam to activate AHB System Advisory SFI system - - Resetting Maintenance Data Advisory SFI system - - Resetting Maintenance Data incomplete Advisory Smart access system with push-button start - - Depress brake pedal and push engine switch to start Caution Pre-collision system - - VSC System Switched Off. Pre-Collision Brake System Disengaged. Advisory Pre-collision system - - PCS temporarily not available Advisory Air conditioning system - - Operation of Electrical Items Restricted. Turn Off Unnecessary Functions. Advisory Lane departure alert system - - LDA System is Unavailable Below 50 km/h. Advisory Lane departure alert system - - LDA System is Unavailable Below 32 MPH. Advisory Lane departure alert system - - LDA System is Unavailable at this Speed. Advisory Theft deterrent system - - Theft Sensor OFF Advisory Theft deterrent system - - Theft Sensor ON Advisory - *: An exclusive buzzer sounds depending on condition
- *1: Buzzers that are linked with the master warning light
- WARNING DISPLAY

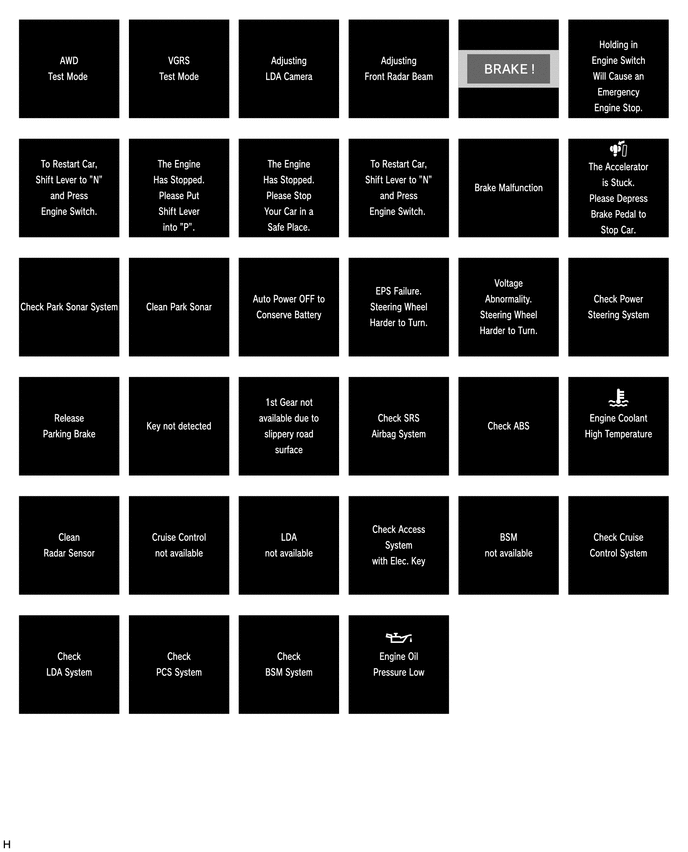

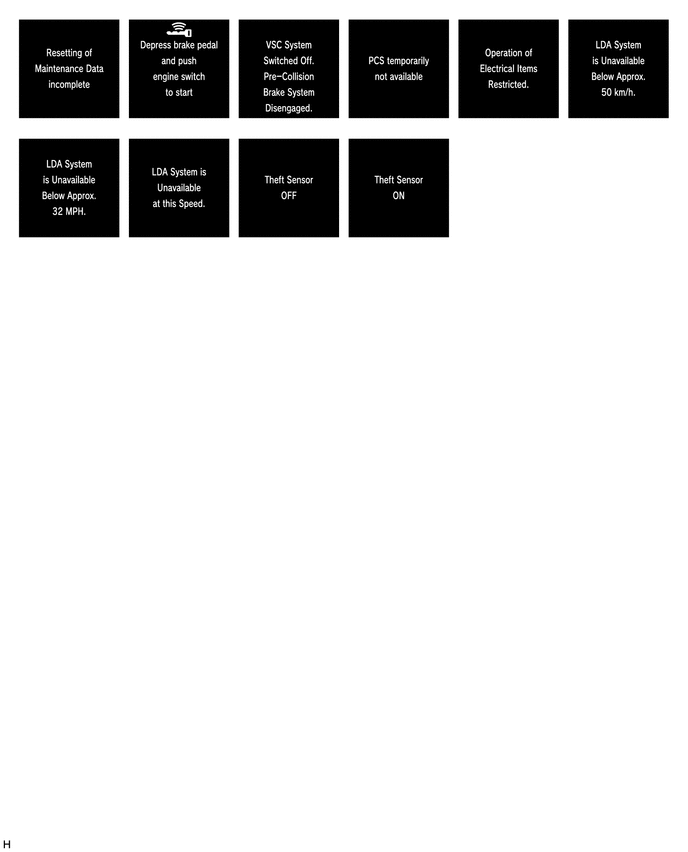

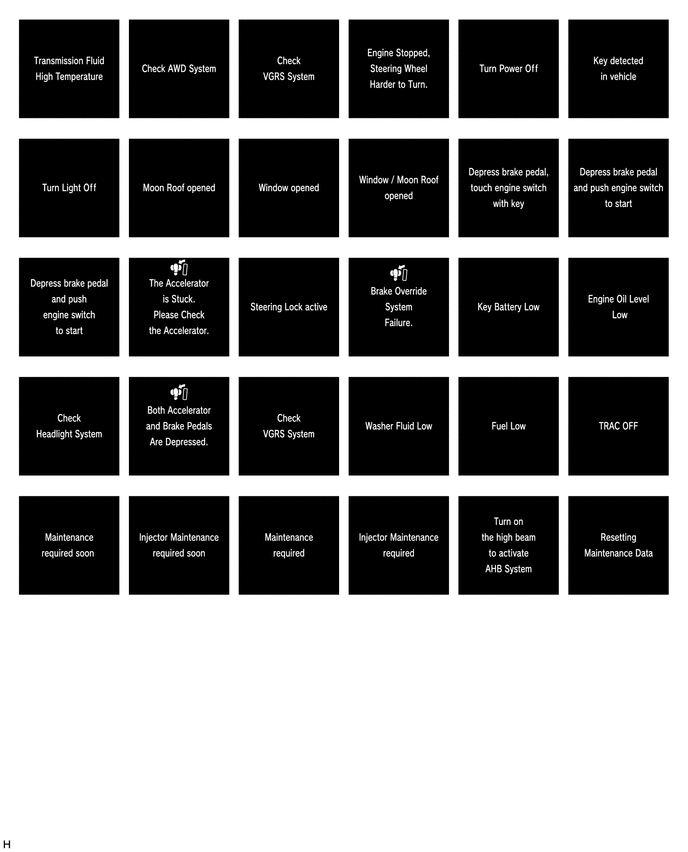

- Each warning display for the multi-information display is shown below.
HINT:
Illustrations may differ from the actual screen displayed depending on the specifications of the vehicle.
- Each warning display for the multi-information display is shown below.
