DTC B1507: Open in Turn Signal Circuit [09/2020 - ]: Procedure

  1. CHECK SYMPTOMS
    1. Check the problem symptoms.

      Result

      Result Proceed to
      LH side front turn signal light does not blink A
      LH side rear turn signal light does not blink B
      RH side front turn signal light does not blink C
      RH side rear turn signal light does not blink D

    Result:

    B

    See step  8

    Result:

    C

    See step  10

    Result:

    D

    See step  16

    Result:

    A

    See step  2

  2. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH
    1. Remove the headlight ECU sub-assembly LH.

      Refer to REMOVAL [09/2020 - ]

    2. Measure the resistance according to the value(s) in the table below.

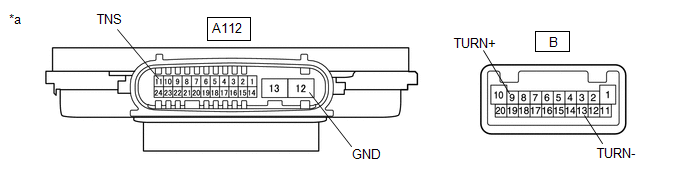

      GTY971554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight ECU Sub-assembly LH)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A112-11 (TNS) - B-9 (TURN+) Always Below 1 Ω
      A112-12 (GND) - B-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [09/2020 - ]

    Result:

    OK

    See step  3

  3. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light B

    Result:

    B

    See step  5

    Result:

    A

    See step  4

  4. CHECK LH SIDE FRONT TURN SIGNAL LIGHT
    1. Remove the headlight unit assembly LH and RH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight unit assembly LH with RH and connect the connectors.
    3. Check the LH side front turn signal light operates normally.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  7

  5. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT CORD LH)
    1. Remove the headlight cord LH and RH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight cord LH with RH and connect the connectors.
    3. Check the LH side front turn signal light operates normally.
      NOTE:

      If the LH side front turn signal light operates normally, return the headlight cord LH and headlight cord RH that were interchanged in a previous step back to their original conditions so that a component of the headlight unit assembly LH can be inspected in the next step.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT CORD LH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  6

  6. CHECK LH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT ASSEMBLY LH)
    1. Remove the headlight unit assembly LH and RH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight unit assembly LH with RH and connect the connectors.
    3. Check the LH side front turn signal light operates normally.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  7

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A112 headlight assembly LH connector.
    2. Disconnect the K4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A112-11 (TNS) - K4-13 (LL) Always Below 1 Ω
      A112-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. CHECK LH SIDE REAR TURN SIGNAL LIGHT
    1. Remove the rear combination light lens and body LH and RH.

      Refer to REMOVAL [09/2020 - ]

    2. Interchange the rear combination light lens and body LH with RH and connect the connectors.
    3. Check the LH side rear turn signal light operates normally.

      Result

      Result Proceed to
      LH side front turn signal light operates normally A
      Problem symptoms do not change
      (LH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE REAR COMBINATION LIGHT LENS AND BODY LH. Refer to  REMOVAL [09/2020 - ]

    Result:

    B

    See step  9

  9. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY LH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the Q43 rear combination light assembly LH connector.
    2. Disconnect the K4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q43-4 (TRN) - K4-11 (TRNL) Always Below 1 Ω
      Q43-6 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  10. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH
    1. Remove the headlight ECU sub-assembly RH.

      Refer to REMOVAL [09/2020 - ]

    2. Measure the resistance according to the value(s) in the table below.

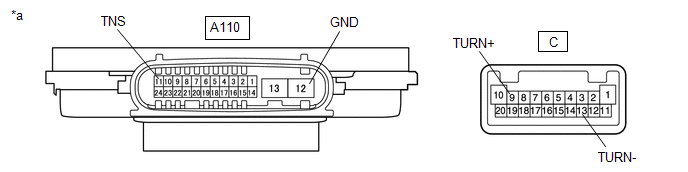

      GTY971551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight ECU Sub-assembly RH)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      A110-11 (TNS) - C-9 (TURN+) Always Below 1 Ω
      A110-12 (GND) - C-13 (TURN-) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [09/2020 - ]

    Result:

    OK

    See step  11

  11. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light B

    Result:

    B

    See step  13

    Result:

    A

    See step  12

  12. CHECK RH SIDE FRONT TURN SIGNAL LIGHT
    1. Remove the headlight unit assembly RH and LH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight unit assembly RH with LH and connect the connectors.
    3. Check the RH side front turn signal light operates normally.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  15

  13. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT CORD RH)
    1. Remove the headlight cord RH and LH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight cord RH with LH and connect the connectors.
    3. Check the RH side front turn signal light operates normally.
      NOTE:

      If the RH side front turn signal light operates normally, return the headlight cord RH and headlight cord LH that were interchanged in a previous step back to their original conditions so that a component of the headlight unit assembly RH can be inspected in the next step.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT CORD RH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  14

  14. CHECK RH SIDE FRONT TURN SIGNAL LIGHT (HEADLIGHT UNIT ASSEMBLY RH)
    1. Remove the headlight unit assembly RH and LH.

      Refer to DISASSEMBLY [09/2020 - ]

    2. Interchange the headlight unit assembly RH with LH and connect the connectors.
    3. Check the RH side front turn signal light operates normally.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [09/2020 - ]

    Result:

    B

    See step  15

  15. CHECK HARNESS AND CONNECTOR (HEADLIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the A110 headlight assembly RH connector.
    2. Disconnect the K4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A110-11 (TNS) - K4-7 (LR) Always Below 1 Ω
      A110-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  16. CHECK RH SIDE REAR TURN SIGNAL LIGHT
    1. Remove the rear combination light lens and body RH and LH.

      Refer to REMOVAL [09/2020 - ]

    2. Interchange the rear combination light lens and body RH with LH and connect the connectors.
    3. Check the RH side rear turn signal light operates normally.

      Result

      Result Proceed to
      RH side front turn signal light operates normally A
      Problem symptoms do not change
      (RH side front turn signal light does not blink)      		 B

    Result:

    A

    REPLACE REAR COMBINATION LIGHT LENS AND BODY RH. Refer to  REMOVAL [09/2020 - ]

    Result:

    B

    See step  17

  17. CHECK HARNESS AND CONNECTOR (REAR COMBINATION LIGHT ASSEMBLY RH - COMBINATION METER ASSEMBLY AND BODY GROUND)
    1. Disconnect the Q5 rear combination light assembly RH connector.
    2. Disconnect the K4 combination meter assembly connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q5-4 (TRN) - K4-5 (TRNR) Always Below 1 Ω
      Q5-6 (E) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [09/2020 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
