Speed Signal Circuit [08/2013 - ]: Wiring Diagram

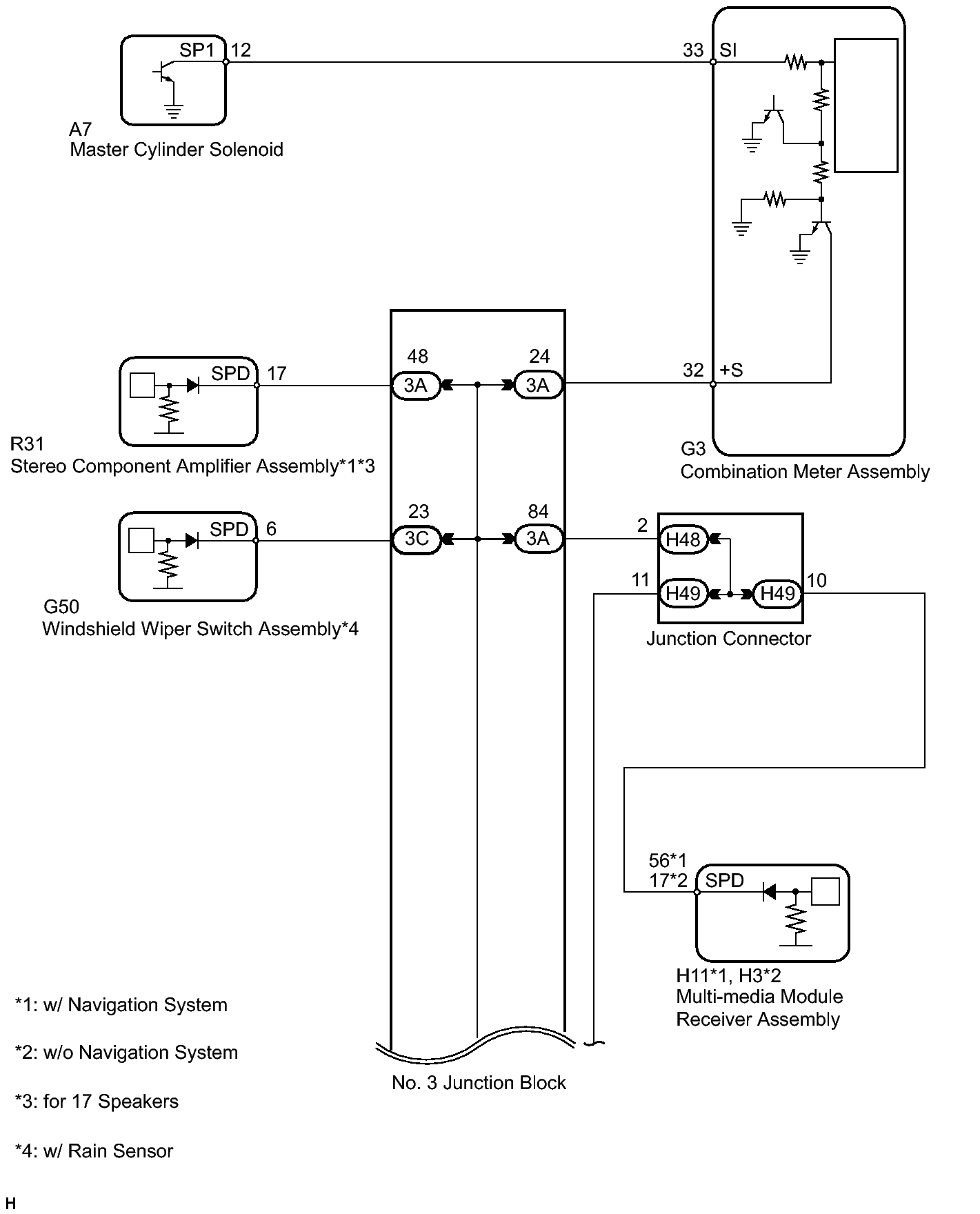

Fig 1: Combination Meter Assembly Wiring Diagram (1 Of 2)
GTY469798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Combination Meter Assembly Wiring Diagram (2 Of 2)
GTY462894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
