Meter Illumination is Always Dark [08/2013 - ]: Wiring Diagram

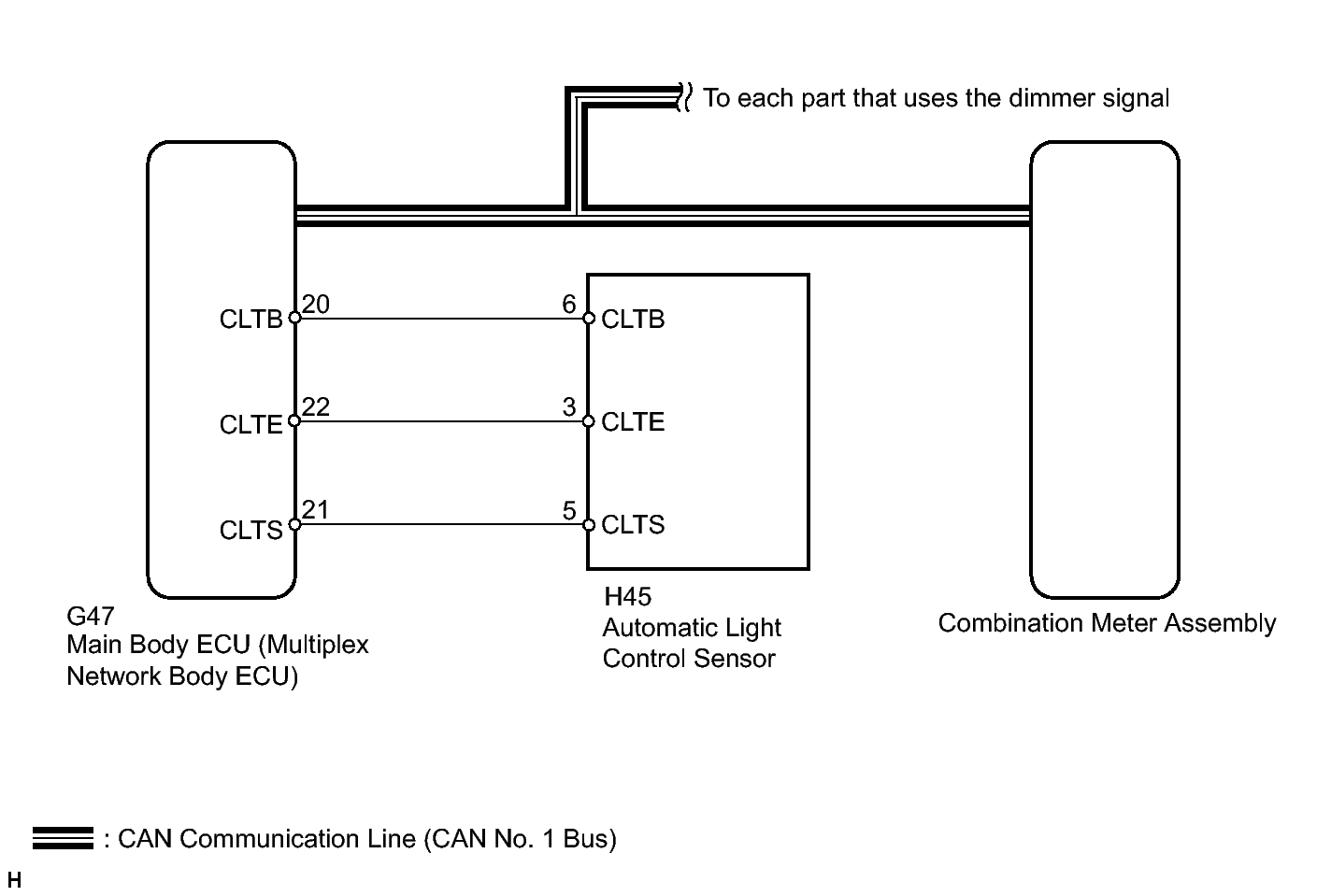

Fig 1: Combination Meter Assembly Wiring Diagram

GTY459346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
