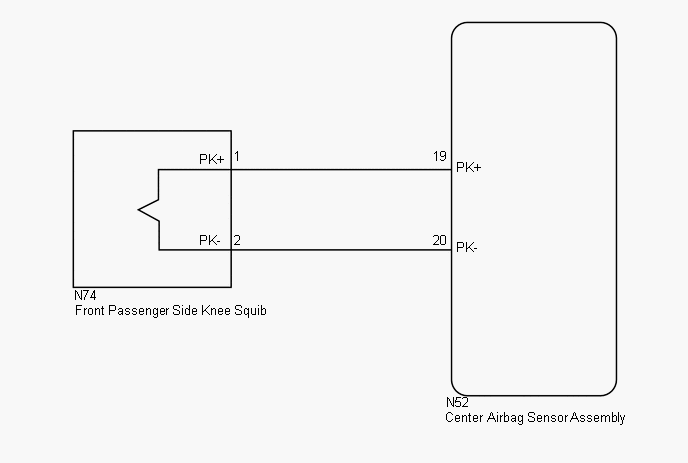

DTC B1865/65, B1866/65, B1867/65, B1868/65: Short in Front Passenger Side Knee Airbag Squib Circuit; Open in Front Passenger Side Knee Airbag Squib Circuit; Short to GND in Front Passenger Side Knee Airbag Squib Circuit; Short to B+ in Front Passenger Side Knee Airbag Squib Circuit [09/2013 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
