Removal [09/2013 - ]

DISABLE AUTO TILT AWAY FUNCTION
1. Disable the autoaway/return function by changing the customize parameter. Refer to CUSTOMIZE PARAMETERS [09/2013 - ] .
  NOTE:
  Record the current customize parameter setting (whether the autoaway/return function is enabled or disabled) in order to restore the current setting after finishing the operation.

  HINT:

  Performing the above operation causes the autoaway/return function to be disabled when the power switch is turned off.
2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
3. Turn the power switch off.
REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL . Refer to REMOVAL [09/2013 - ] - Step 1
REMOVE INSTRUMENT PANEL FINISH PANEL END LH . Refer to REMOVAL [09/2013 - ] - Step 2
REMOVE INSTRUMENT SIDE PANEL LH . Refer to REMOVAL [09/2013 - ] - Step 14
REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY . Refer to REMOVAL [09/2013 - ] - Step 15
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to REMOVAL [09/2013 - ] - Step 16
REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY . Refer to REMOVAL [09/2013 - ] - Step 17
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY . Refer to REMOVAL [09/2013 - ] - Step 19
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY . Refer to REMOVAL [09/2013 - ] - Step 20
REMOVE TRIP SWITCH (LIGHT CONTROL RHEOSTAT)

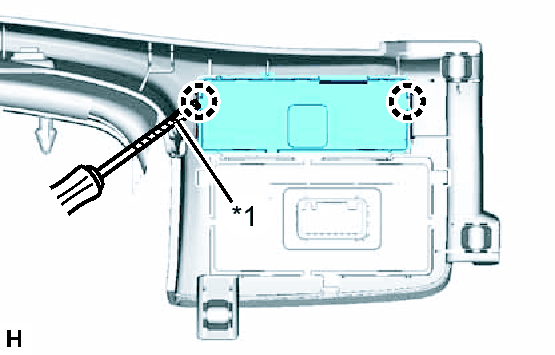

Fig 1: Detaching Trip Switch Claws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using a screwdriver, detach the 2 claws and remove the trip switch (light control rheostat).
  HINT:

  Tape the screwdriver tip before use.
  TEXT IN ILLUSTRATION

  *1 Protective Tape
