Vehicle Speed Signal Circuit [09/2013 - ]: Wiring Diagram

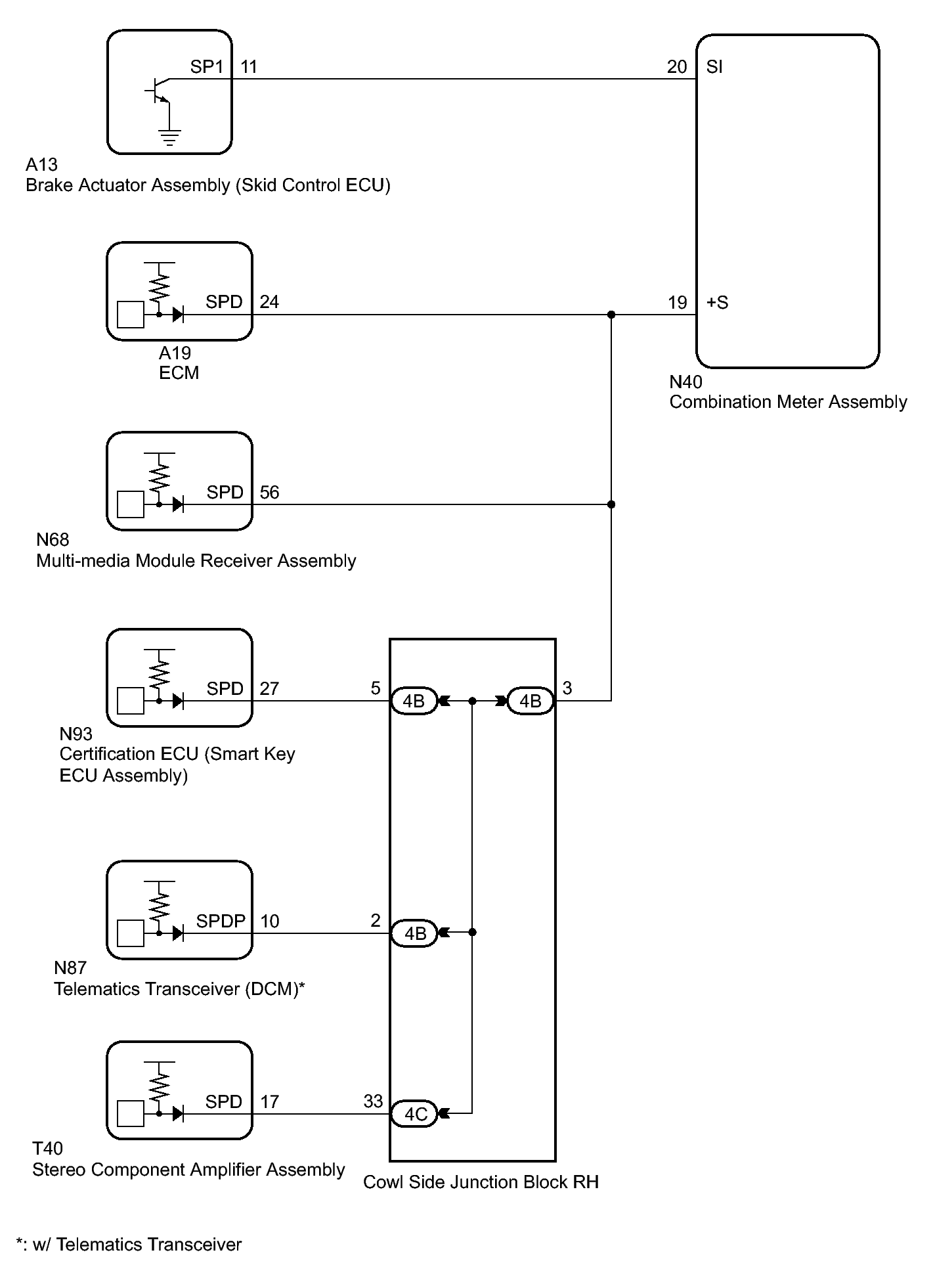

Fig 1: Vehicle Speed Signal Wiring Diagram

GTY415047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
