SRS Warning Light does not Come ON: Wiring Diagram

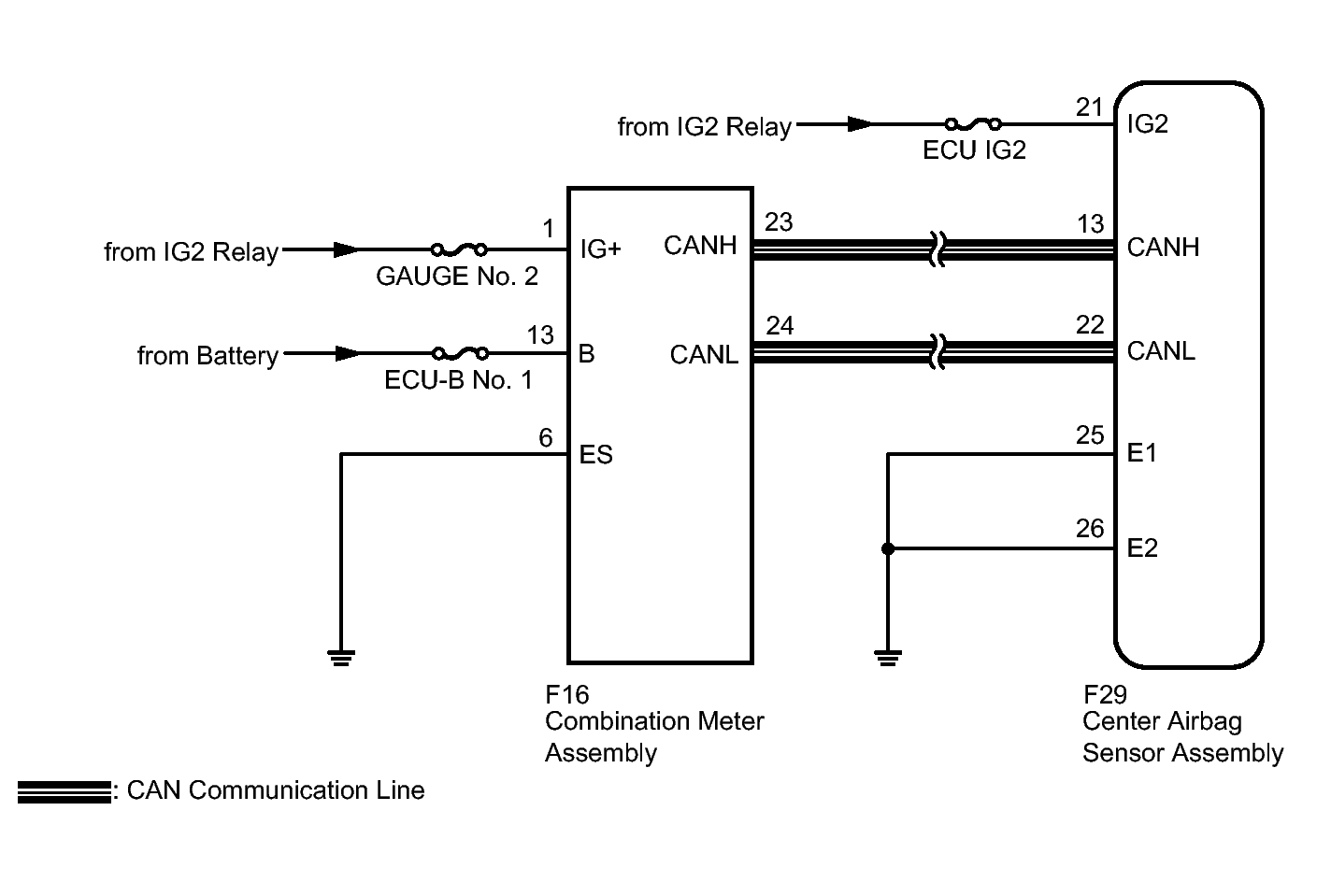

Fig 1: Combination Meter Assembly Wiring Diagram

GTY256057

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
