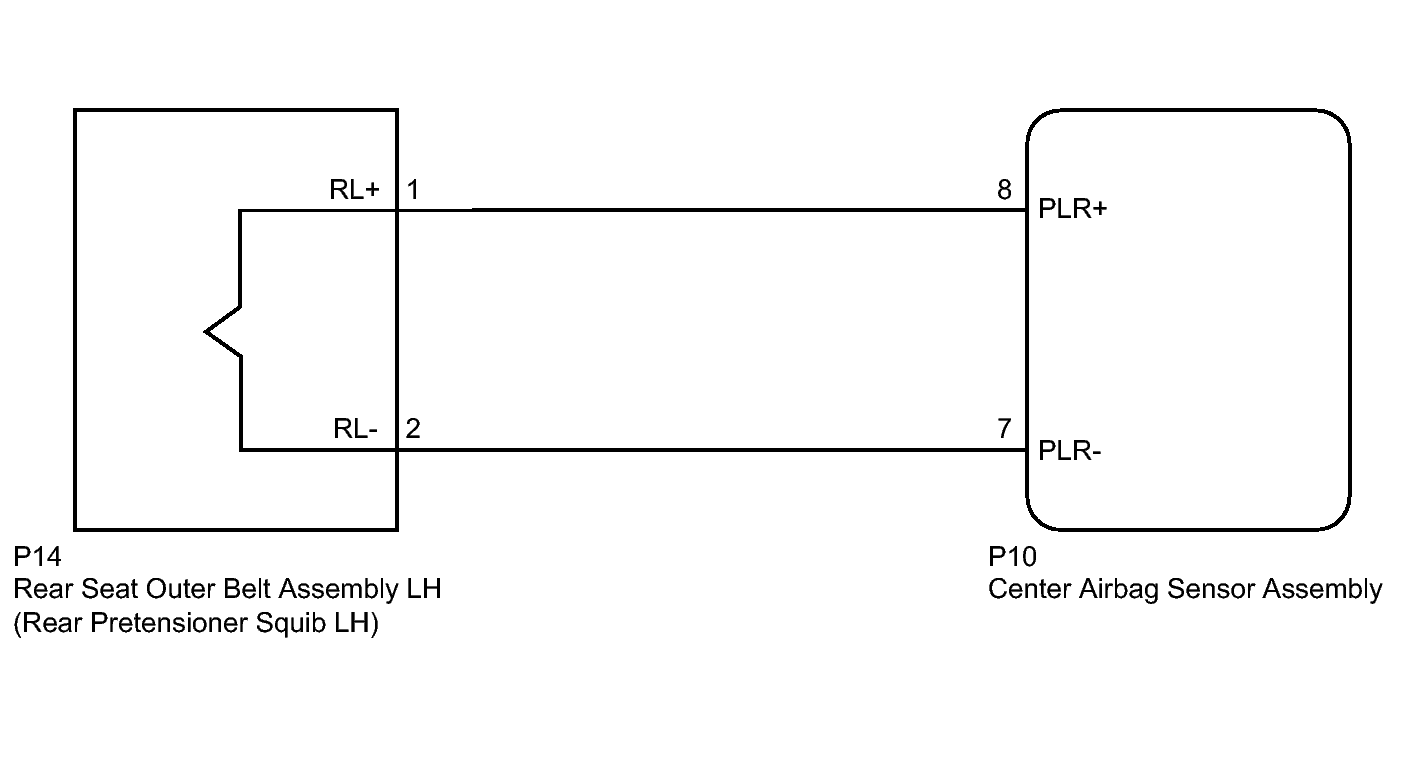

DTC B1925/78: Short in Rear Pretensioner Squib LH Circuit; DTC B1926/78: Open in Rear Pretensioner Squib LH Circuit; DTC B1927/78: Short to GND in Rear Pretensioner Squib LH Circuit; DTC B1928/78: Short to B+ in Rear Pretensioner Squib LH Circuit (03/2012 - 07/2012): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
