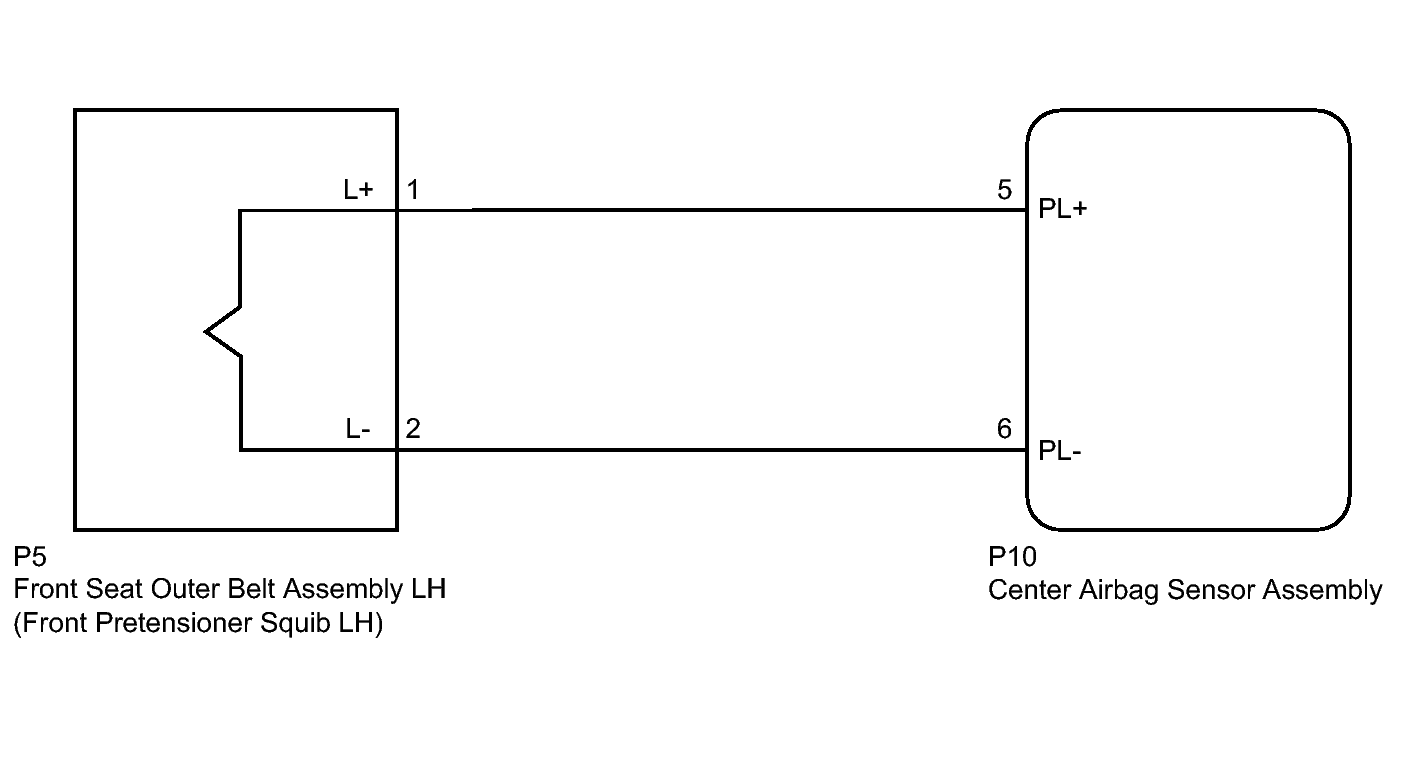

DTC B1905/74: Short in Front Pretensioner Squib LH Circuit; DTC B1906/74: Open in Front Pretensioner Squib LH Circuit; DTC B1907/74: Short to GND in Front Pretensioner Squib LH Circuit; DTC B1908/74: Short to B+ in Front Pretensioner Squib LH Circuit (03/2012 - 07/2012): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
