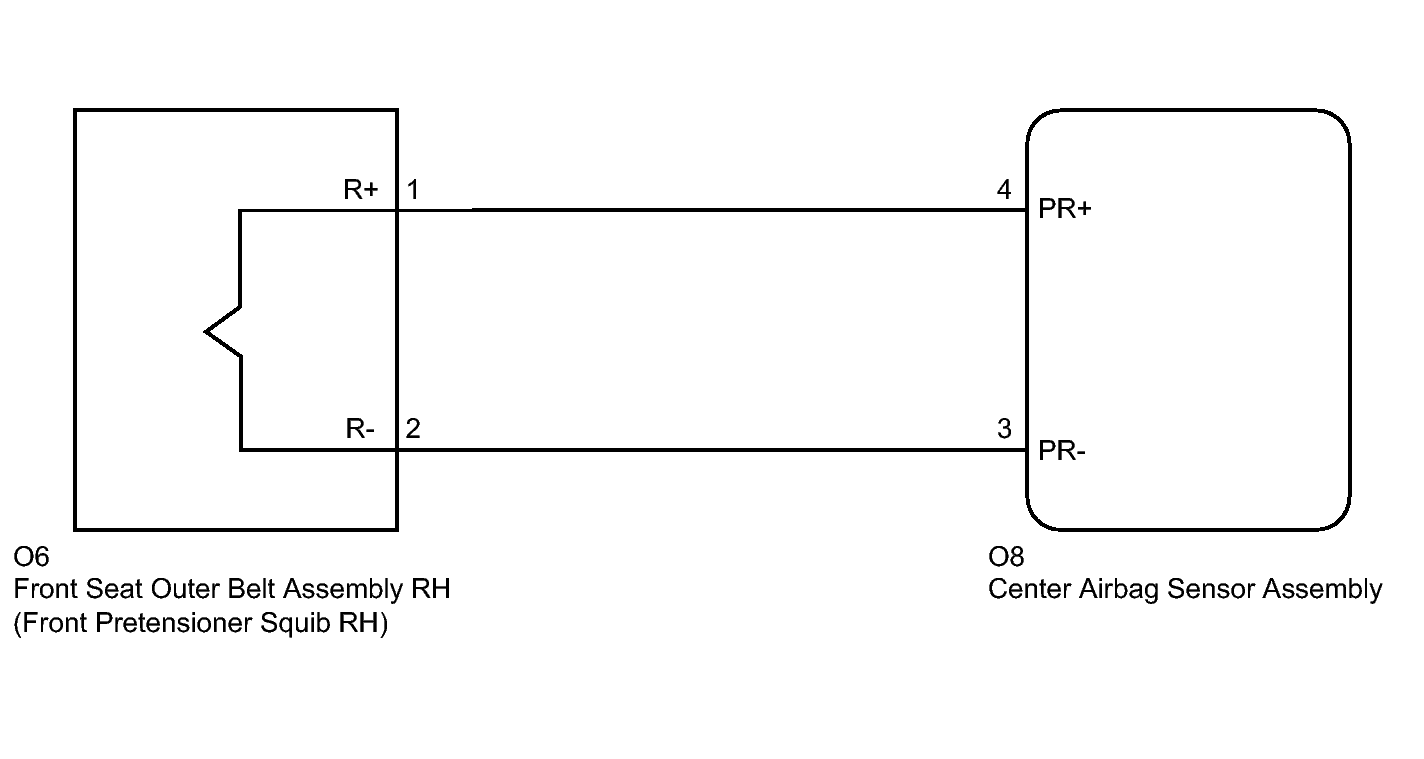

DTC B1900/73: Short in Front Pretensioner Squib RH Circuit; DTC B1901/73: Open in Front Pretensioner Squib RH Circuit; DTC B1902/73: Short to GND in Front Pretensioner Squib RH Circuit; DTC B1903/73: Short to B+ in Front Pretensioner Squib RH Circuit (03/2012 - 07/2012): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
