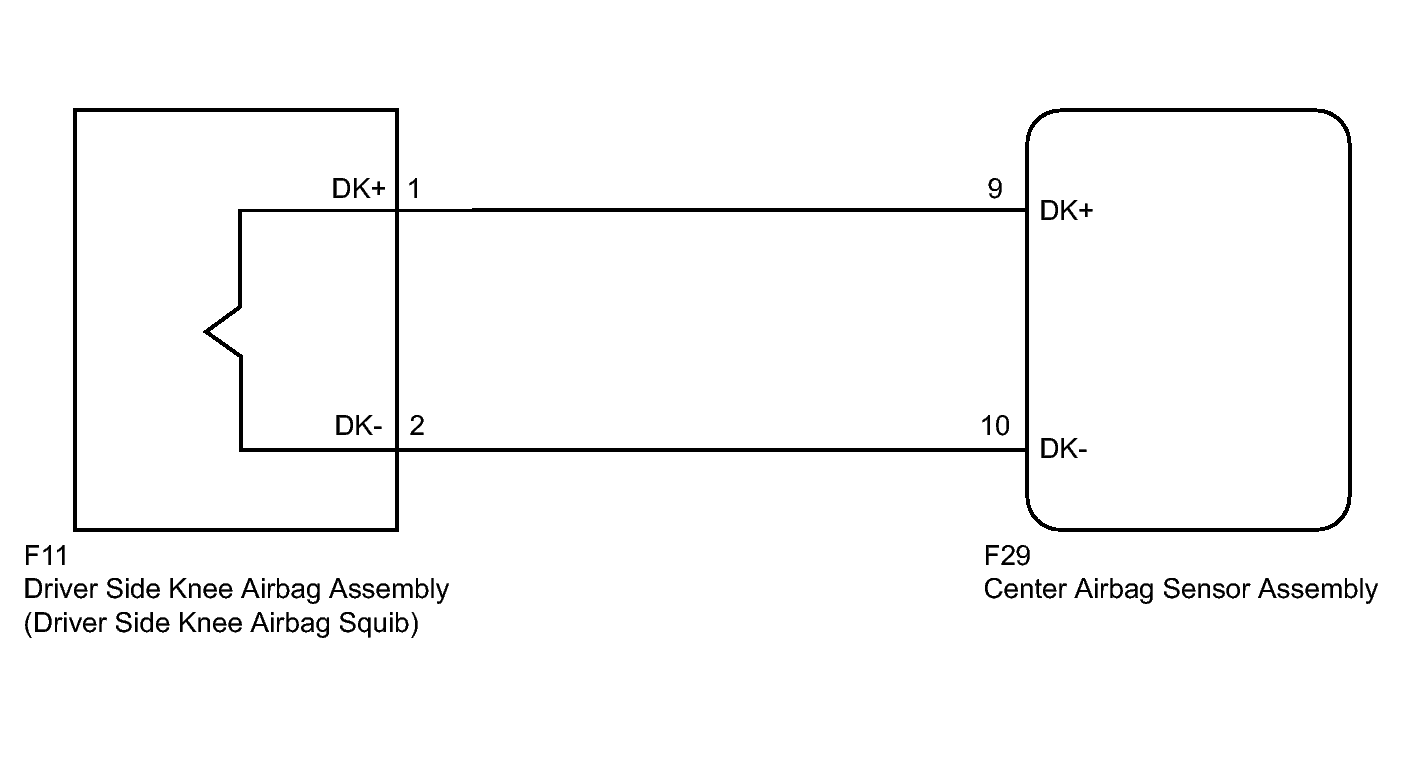

DTC B1860/64: Short in Driver Side Knee Airbag Squib Circuit; DTC B1861/64: Open in Driver Side Knee Airbag Squib Circuit; DTC B1862/64: Short to GND in Driver Side Knee Airbag Squib Circuit; DTC B1863/64: Short to B+ in Driver Side Knee Airbag Squib Circuit (03/2012 - 07/2012): Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
