DTC B1820/55: Short in Side Squib RH Circuit; DTC B1821/55: Open in Side Squib RH Circuit; DTC B1822/55: Short to GND in Side Squib RH Circuit; DTC B1823/55: Short to B+ in Side Squib RH Circuit (03/2012 - 07/2012): Procedure

  1. CHECK CONNECTORS
    1. Turn the engine switch off.

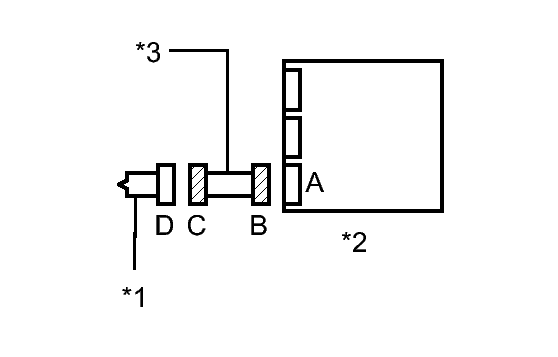

      GTY285556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
      NOTE:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the front seat side airbag assembly RH and center airbag sensor assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not connected securely, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the front seat side airbag assembly RH and center airbag sensor assembly.
    5. Check that the terminals of the connectors are not damaged.

      OK

      The terminals are not deformed or damaged.

    6. Check that the short spring for the floor wire with the activation prevention mechanism is not deformed or damaged.

      OK

      The short spring is not deformed or damaged.

      TEXT IN ILLUSTRATION

      *1 Side Squib RH
      *2 Center Airbag Sensor Assembly
      *3 Floor Wire

    NG → REPLACE FLOOR WIRE

    OK: Go to next step

  2. CHECK FRONT SEAT SIDE AIRBAG ASSEMBLY RH (SIDE SQUIB RH)
    1. Connect the connector to the center airbag sensor assembly.

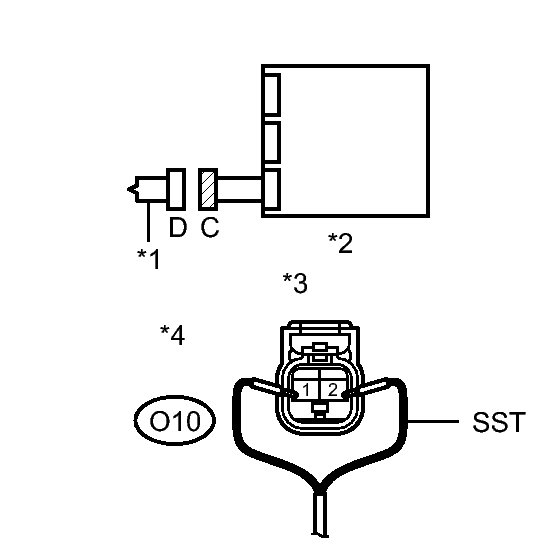

      GTY256646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect SST (resistance 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the front seat side airbag assembly RH (side squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    6. Turn the engine switch off.
    7. Turn the engine switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1820, B1821, B1822, B1823 or 55 is not output.

      Result

      Result Proceed to
      OK (for TMC Made) A
      OK (for TMMC Made) B
      NG C

      HINT:

      Codes other than DTC B1820, B1821, B1822, B1823 and 55 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Side Squib RH
      *2 Center Airbag Sensor Assembly
      *3 Front view of wire harness connector
      (to Front Seat Side Airbag Assembly RH)
      *4 Connector C

    B → See step   7

    C → See step   3

    A → See step   8

  3. CHECK FLOOR WIRE (SIDE SQUIB RH CIRCUIT)
    1. Turn the engine switch off.

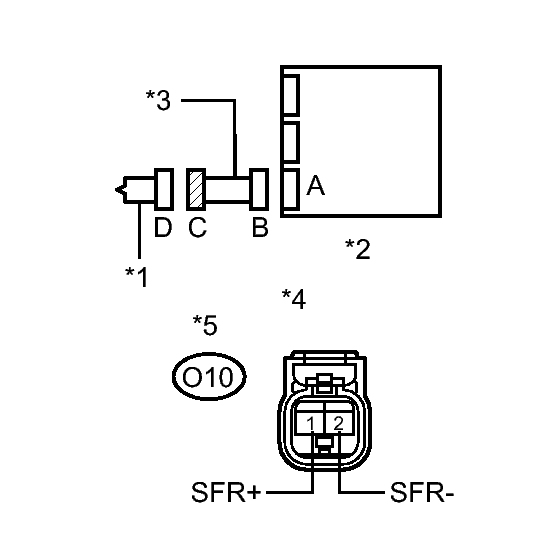

      GTY256919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) battery terminal.
      NOTE:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Disconnect SST from connector C.
    4. Disconnect the floor wire from the center airbag sensor assembly.
    5. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) battery terminal.
      2. Turn the engine switch on (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Switch Condition Specified Condition
        O10-1 (SFR+) - Body ground Engine switch on (IG) Below 1 V
        O10-2 (SFR-) - Body ground Engine switch on (IG) Below 1 V
    6. Check for an open in the circuit.
      1. Turn the engine switch off.
      2. Disconnect the cable from the negative (-) battery terminal.
        NOTE:

        Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      3. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        O10-1 (SFR+) - O10-2 (SFR-) Always Below 1 Ω
    7. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        O10-1 (SFR+) - Body ground Always 1 MΩ or higher
        O10-2 (SFR-) - Body ground Always 1 MΩ or higher
    8. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM [03/2012 - ] .
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        O10-1 (SFR+) - O10-2 (SFR-) Always 1 MΩ or higher
        TEXT IN ILLUSTRATION

        *1 Side Squib RH
        *2 Center Airbag Sensor Assembly
        *3 Floor Wire
        *4 Front view of wire harness connector
        (to Front Seat Side Airbag Assembly RH)
        *5 Connector C

    NG → REPLACE FLOOR WIRE

    OK: Go to next step

  4. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Restore the released activation prevention mechanism of connector B to the original condition.

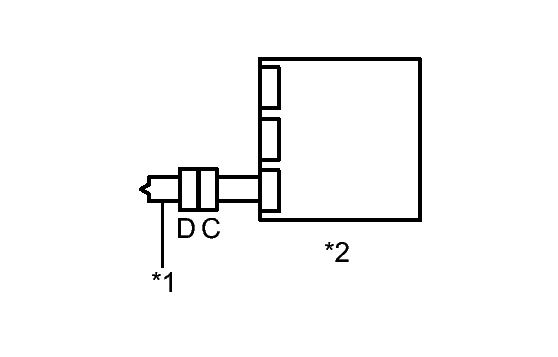

      GTY263788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connectors to the front seat side airbag assembly RH and center airbag sensor assembly.
    3. Connect the cable to the negative (-) battery terminal.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in the memory. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    6. Turn the engine switch off.
    7. Turn the engine switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1820, B1821, B1822, B1823 or 55 is not output.

      TEXT IN ILLUSTRATION

      *1 Side Squib RH
      *2 Center Airbag Sensor Assembly

      HINT:

      Codes other than DTC B1820, B1821, B1822, B1823 and 55 may be output at this time, but they are not related to this check.

    NG → See step   6

    OK → See step   5

  5. USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2012 - 07/2012]
  6. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [03/2012 - 07/2012]
  7. REPLACE FRONT SEAT ASSEMBLY RH. Refer to  REMOVAL [03/2012 - 07/2012]
  8. REPLACE FRONT SEAT SIDE AIRBAG ASSEMBLY RH. Refer to  REMOVAL [03/2012 - ]
