Accessory Meter does not Illuminate: Wiring Diagram

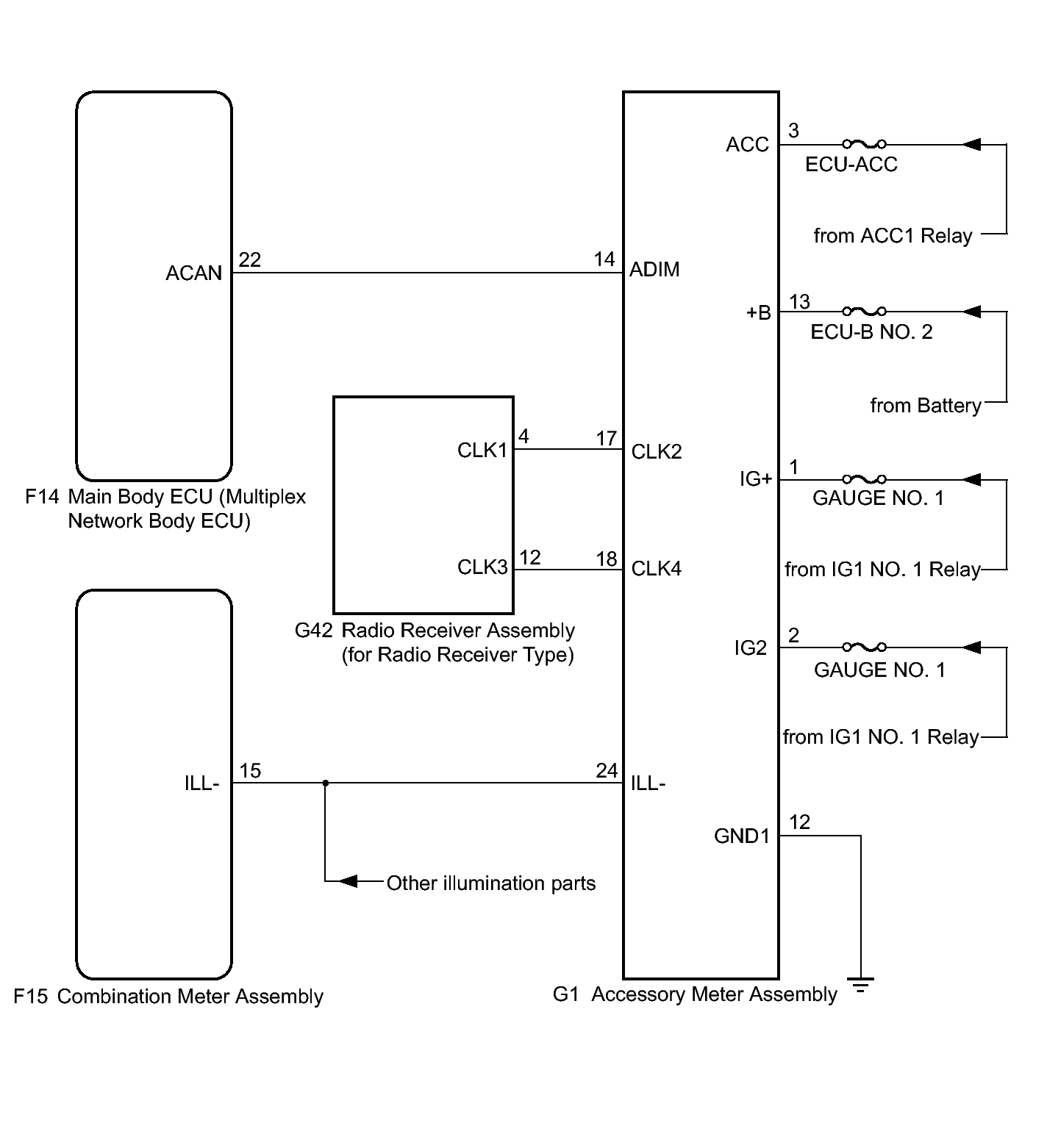

Fig 1: Accessory Meter Assembly Wiring Diagram

GTY408651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
