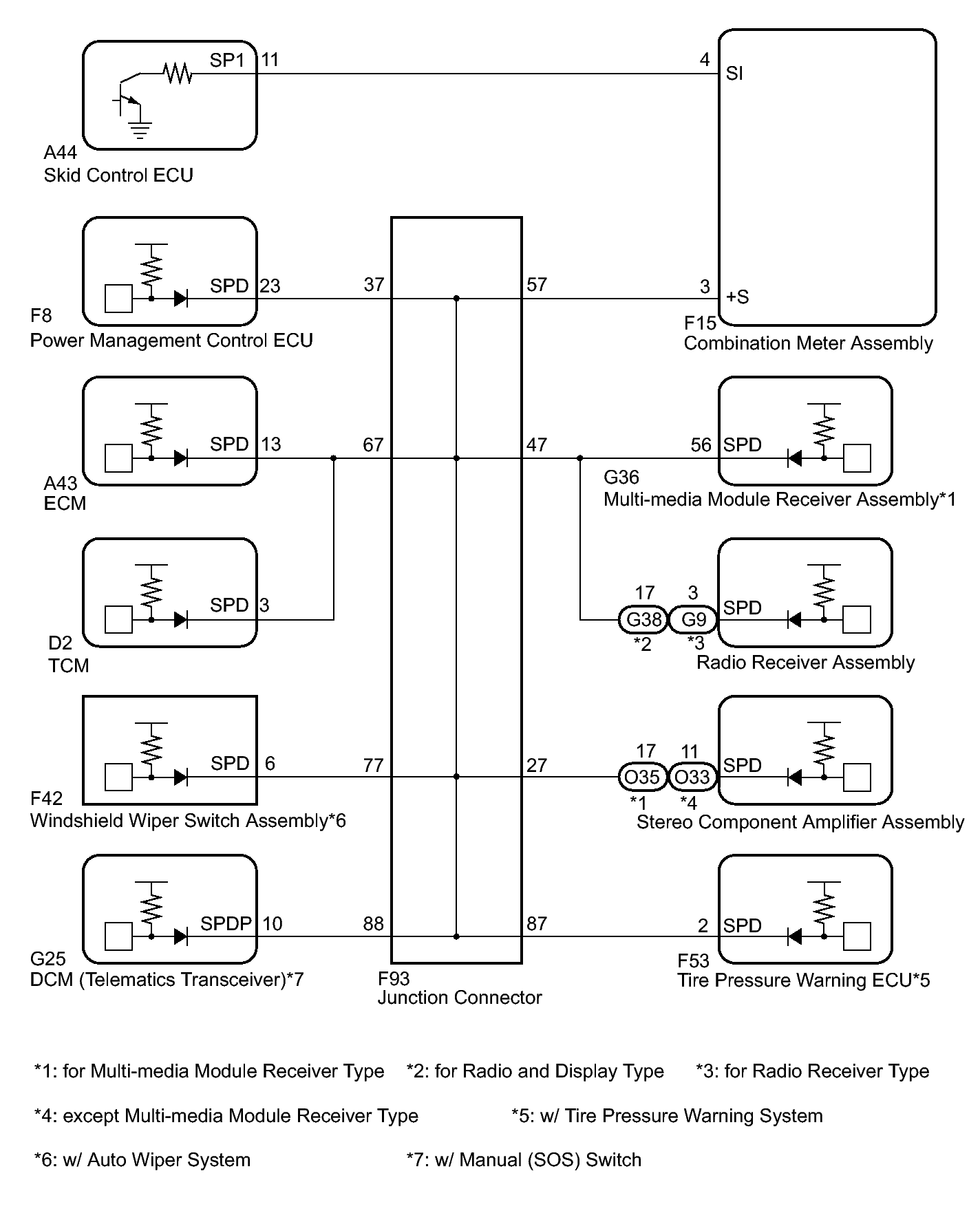

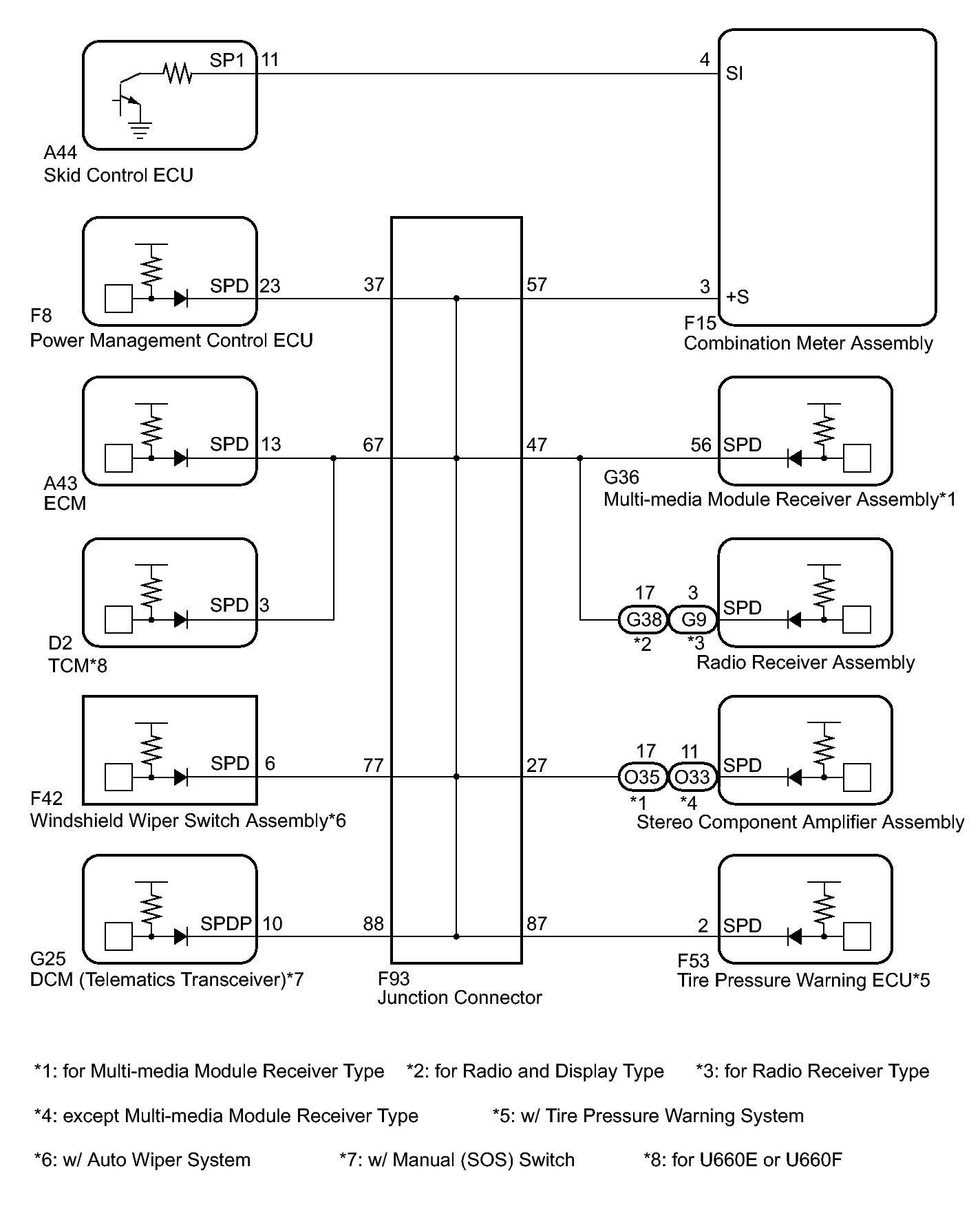

Home >> Lexus >> 2013 >> RX 350 Base, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Diagnostic Codes & Symptom Tests) >> Meter / Gauge System >> Circuit Tests >> Speed Signal Circuit >> Wiring Diagram
