Operating Light Control Rheostat does not Change Light Brightness: Wiring Diagram

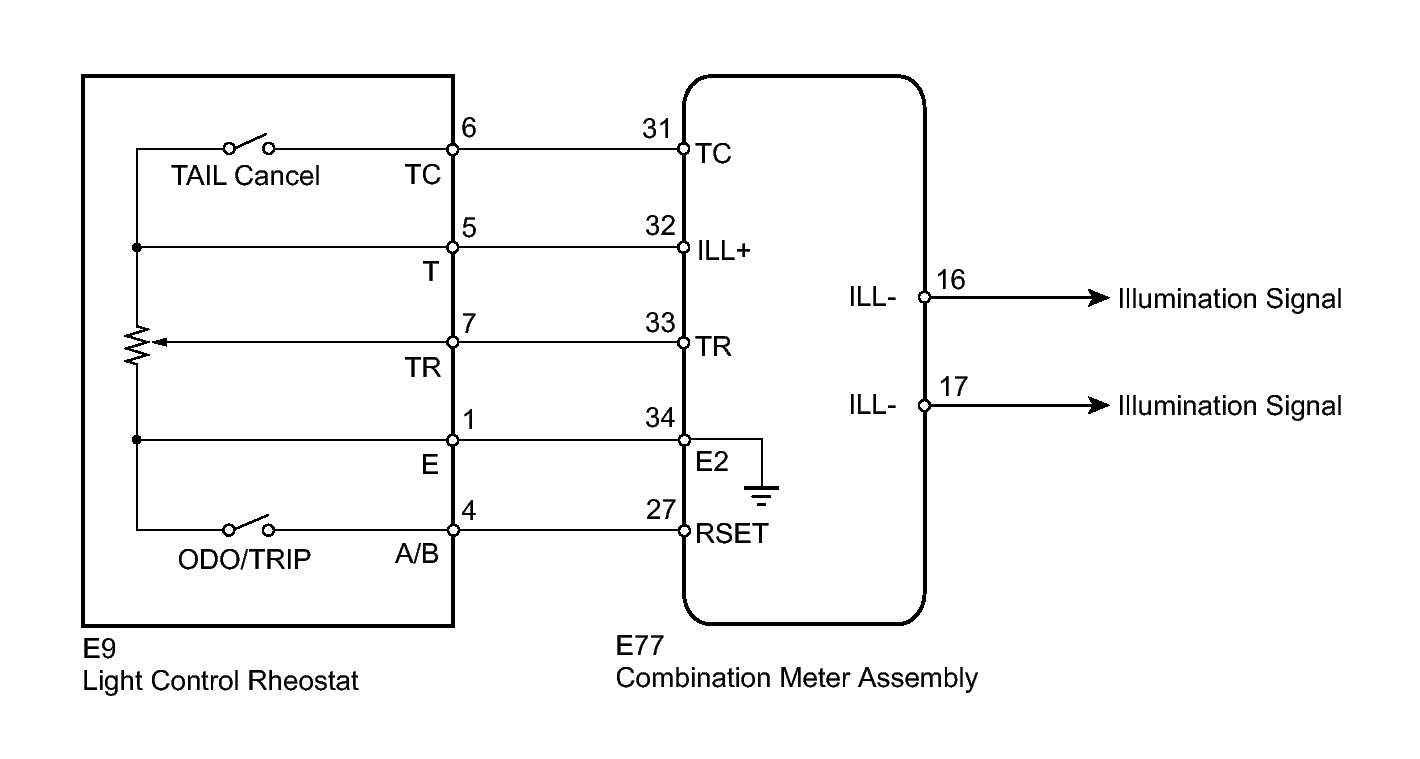

Fig 1: Combination Meter Assembly And Light Control Rheostat - Wiring Diagram
GTY154094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
