Electrical Wiring Routing
>>
: Location of Connector Joining Wire Harness and Wire Harness
>>
Rear Seat 5-Seater
Rear Seat 5-Seater

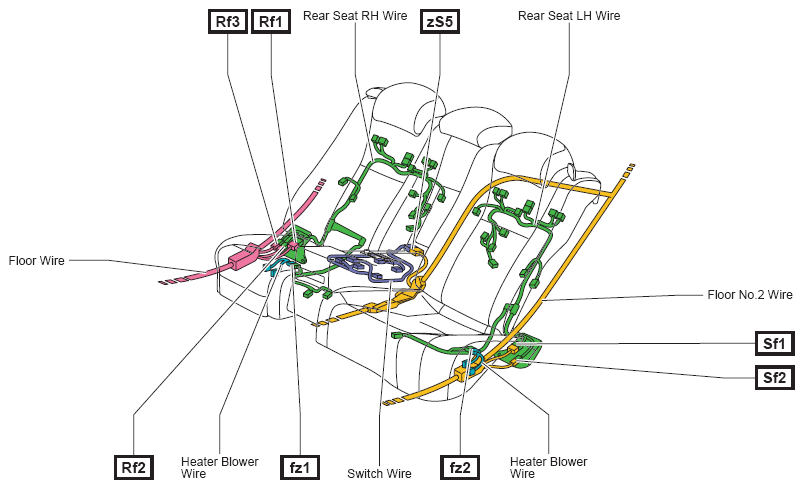

Fig 1: Locating Rear Seat 5-Seater Wire Harnesses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
