: Location of Connector Joining Wire Harness and Wire Harness: Overview

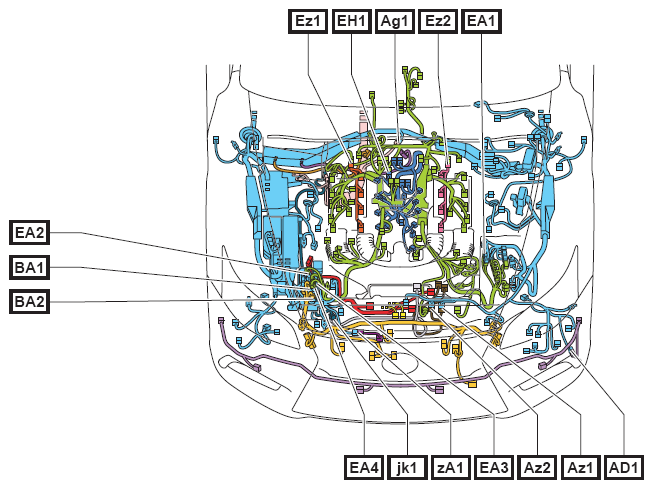

Fig 1: Locating Engine Compartment Wiring Harnesses
G09123054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

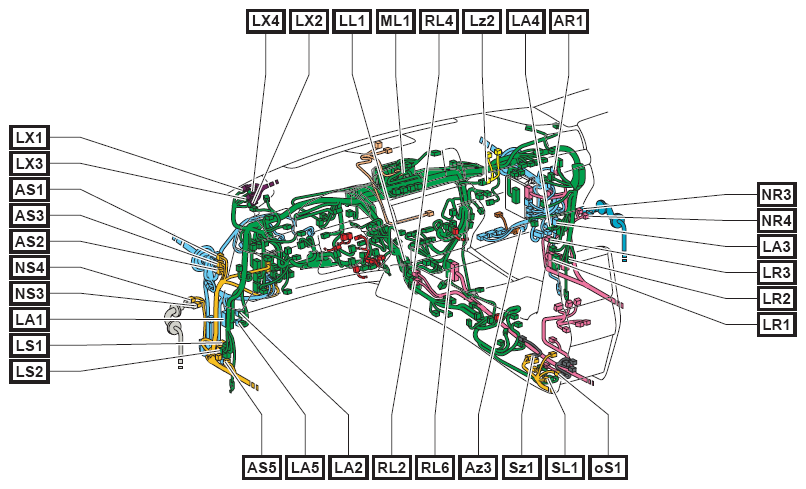

Fig 1: Locating Instrument Panel & Console Wiring Harnesses
G09123056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

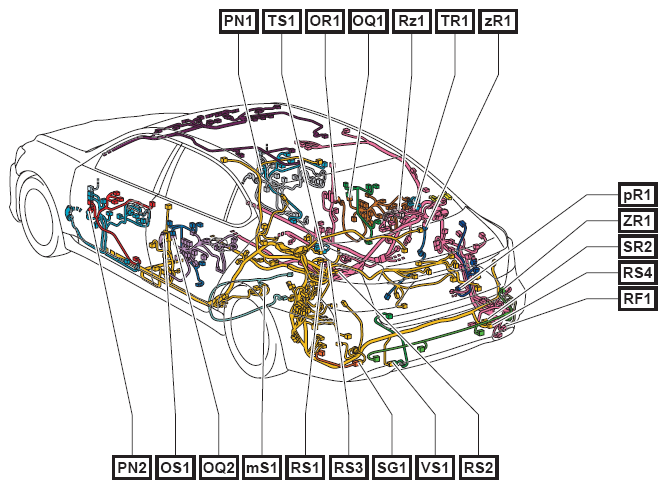

Fig 1: Locating Body Wiring Harnesses
G09123058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
