Components [09/2012 - ]: Illustration

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 6)
GTY400603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 6)
GTY398374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

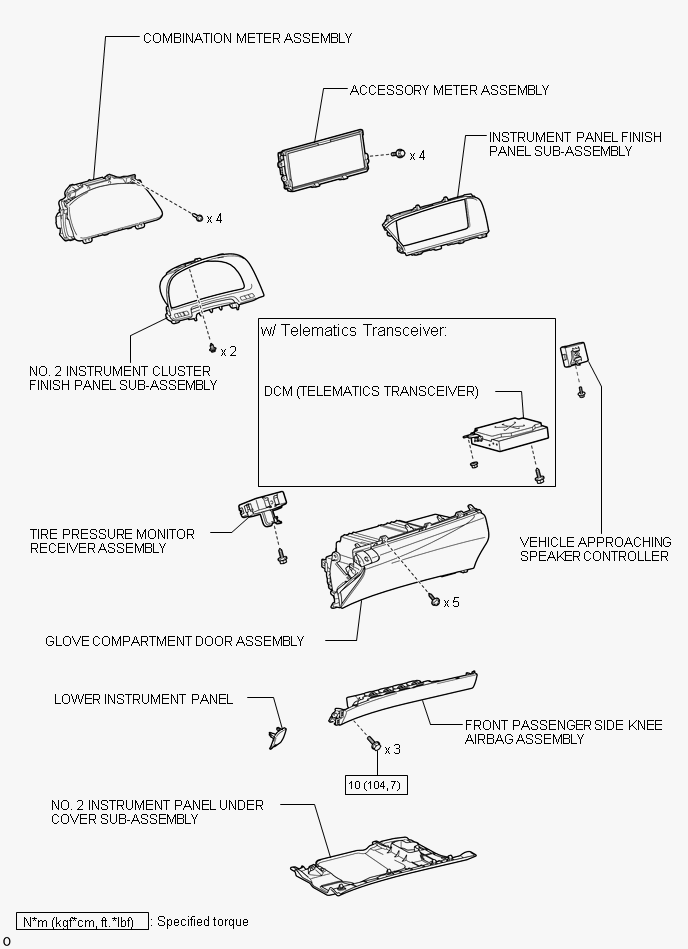

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 Of 6)
GTY417639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

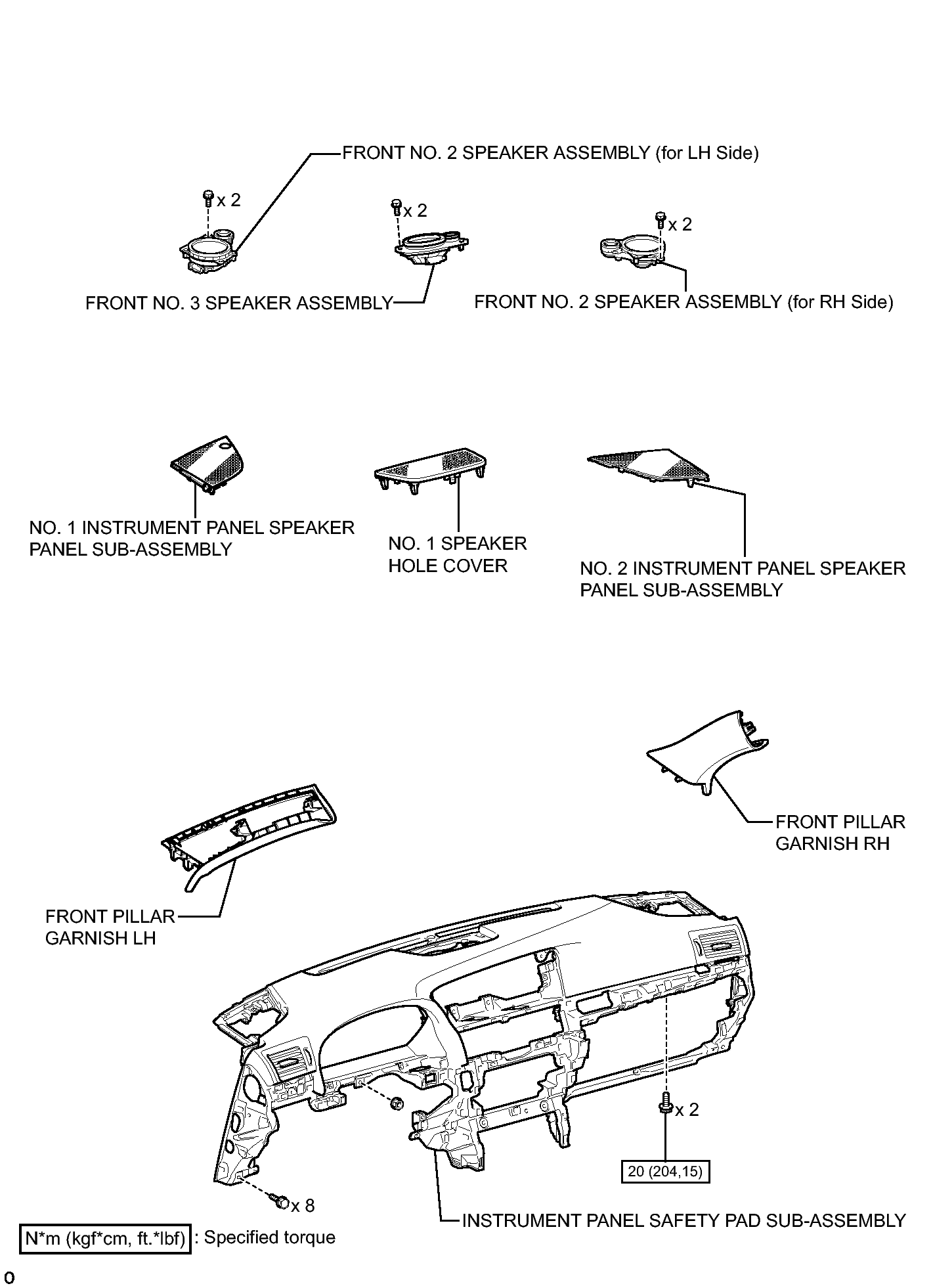

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (4 Of 6)
GTY399464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

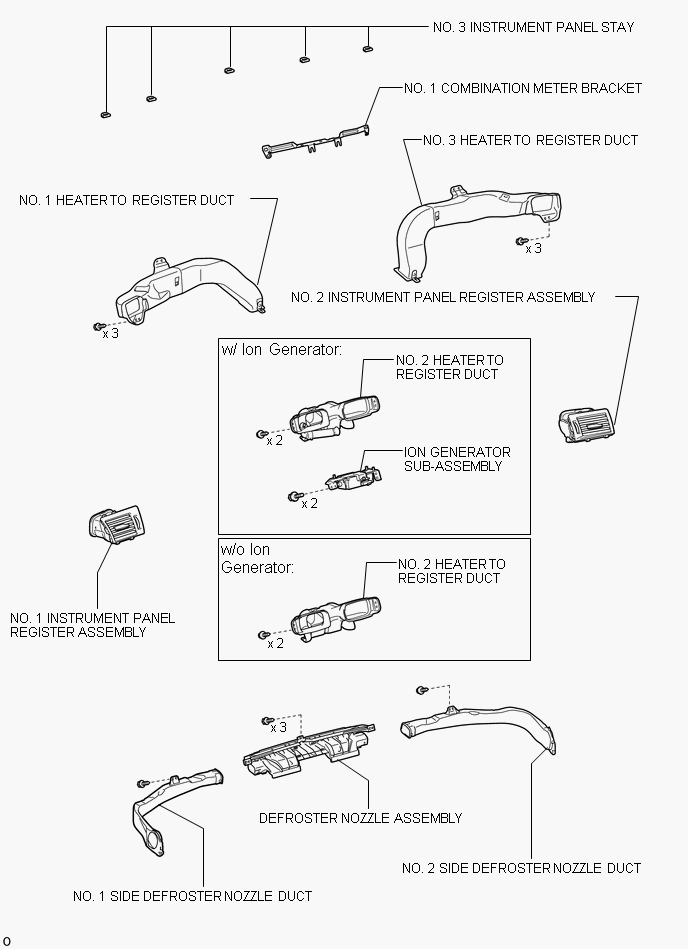

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (5 Of 6)
GTY409372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (6 Of 6)
GTY401626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
