Parts Location [09/2012 - ]: Illustration

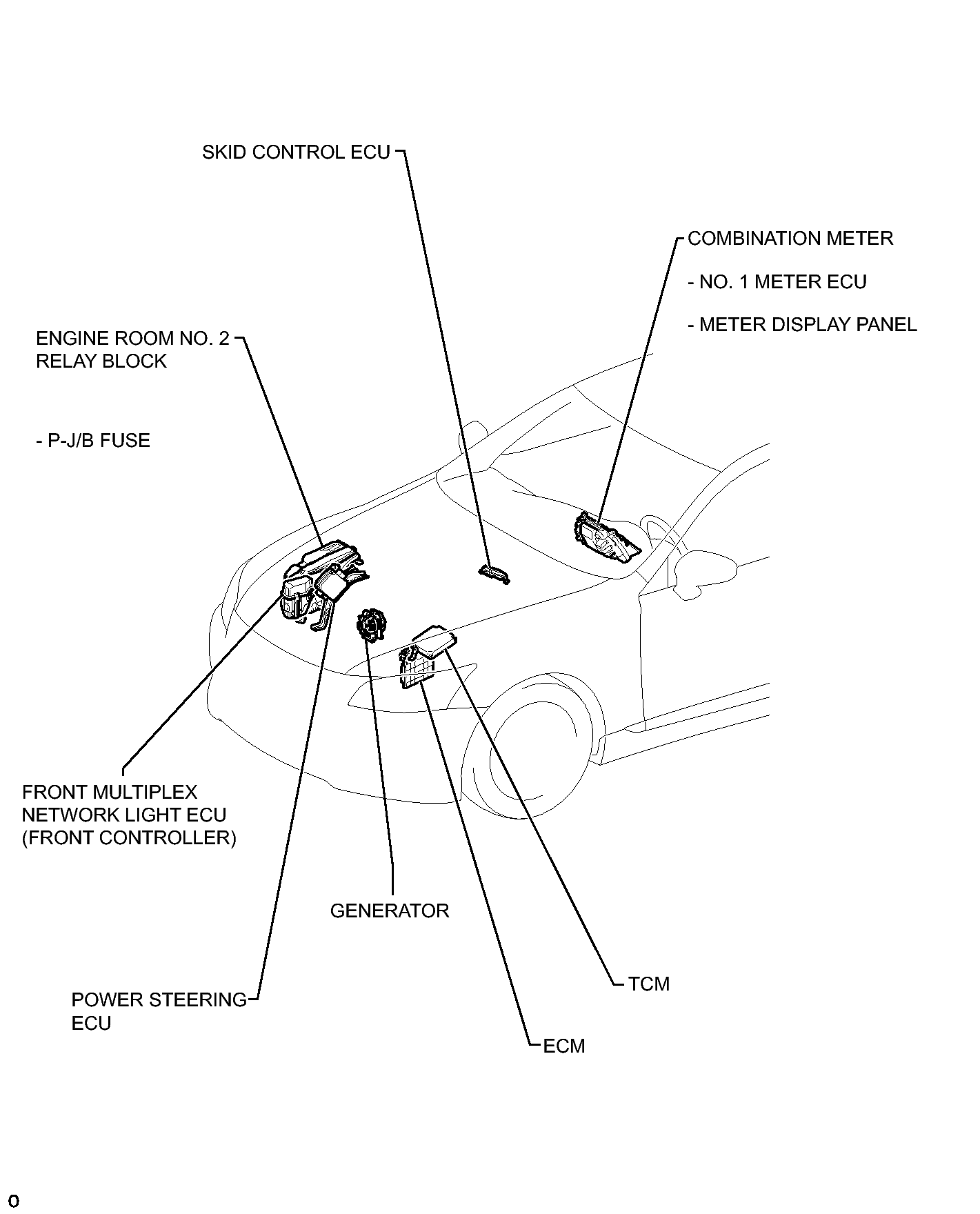

Fig 1: Meter / Gauge System Components Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

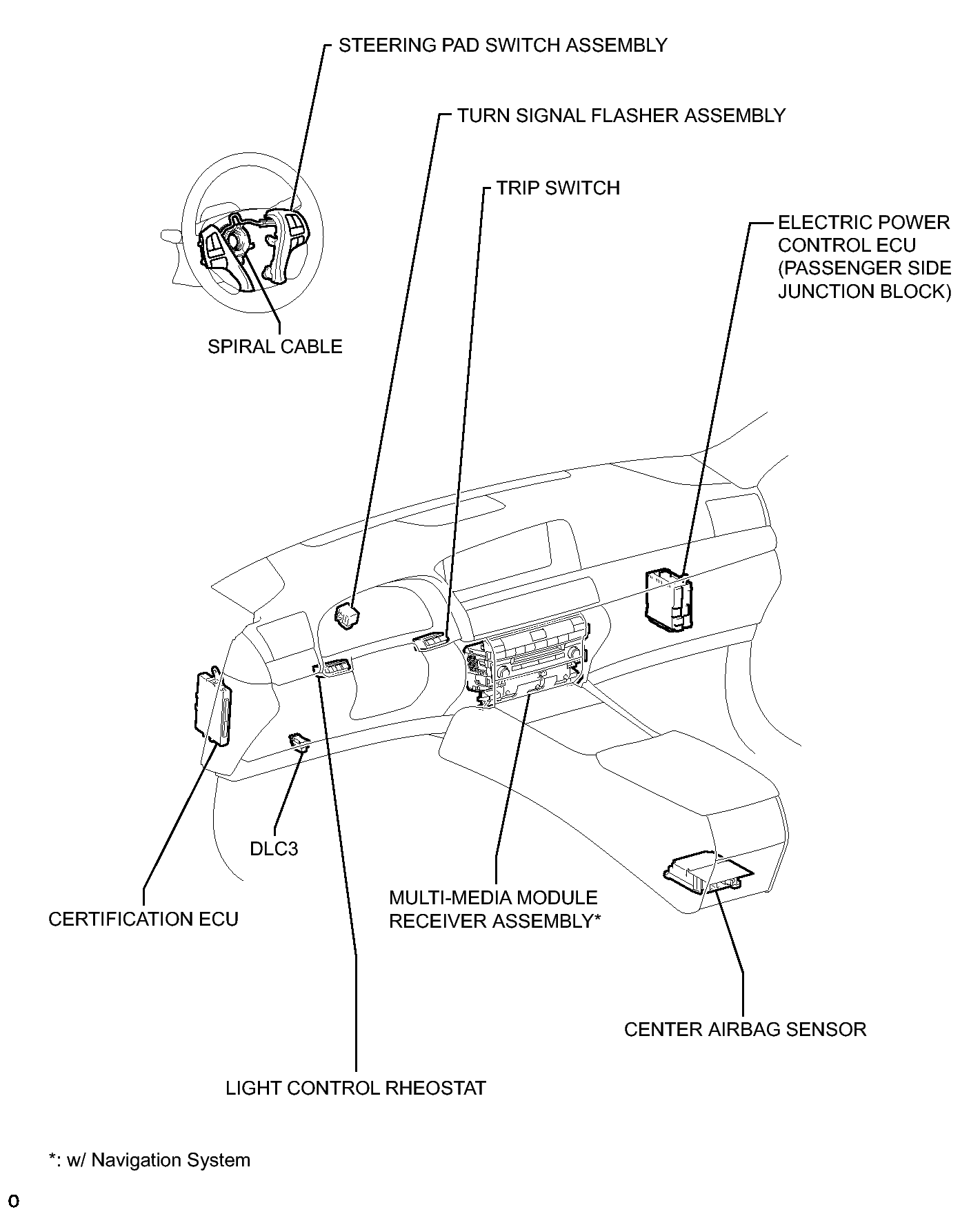

Fig 1: Meter / Gauge System Components Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

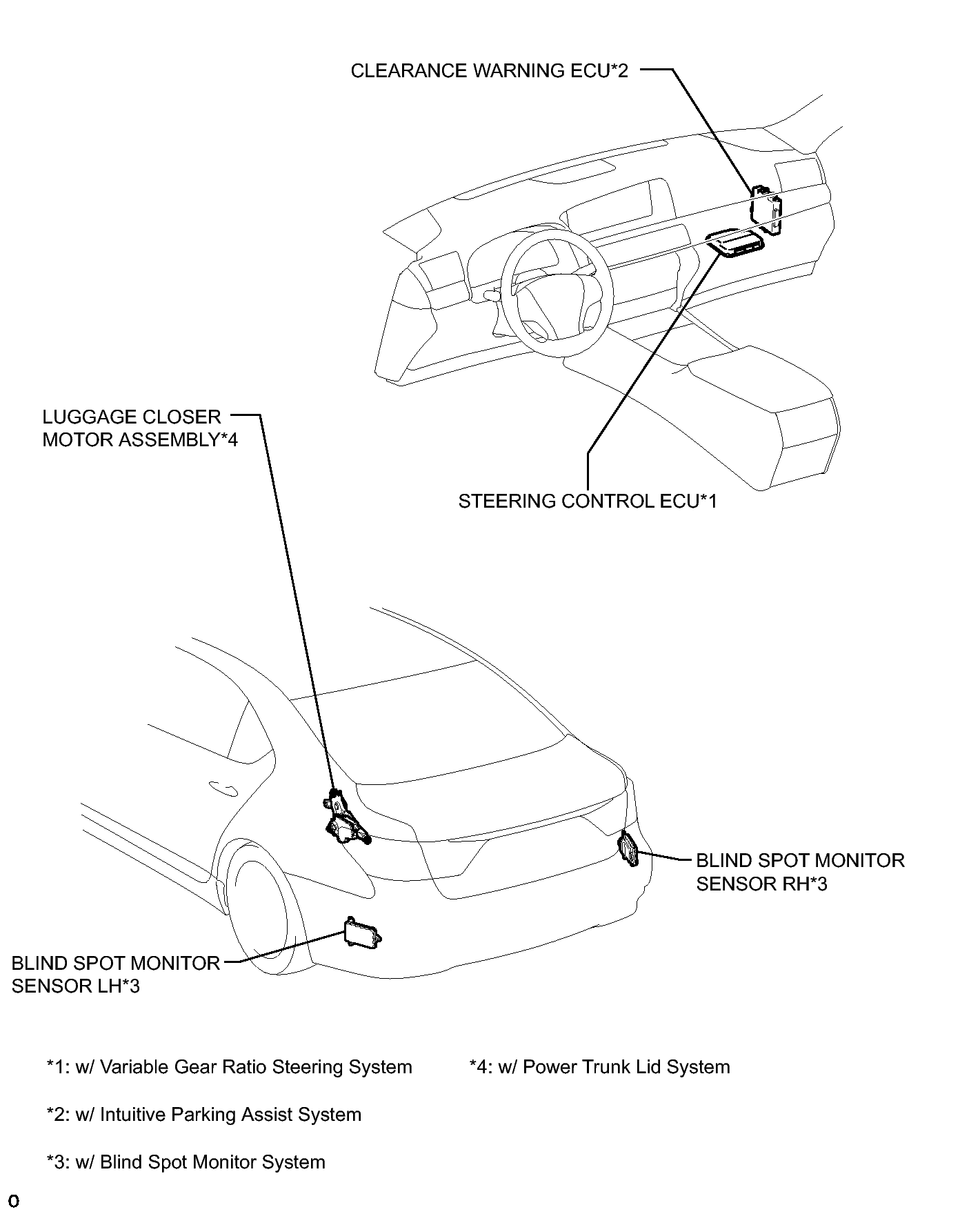

Fig 1: Meter / Gauge System Components Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

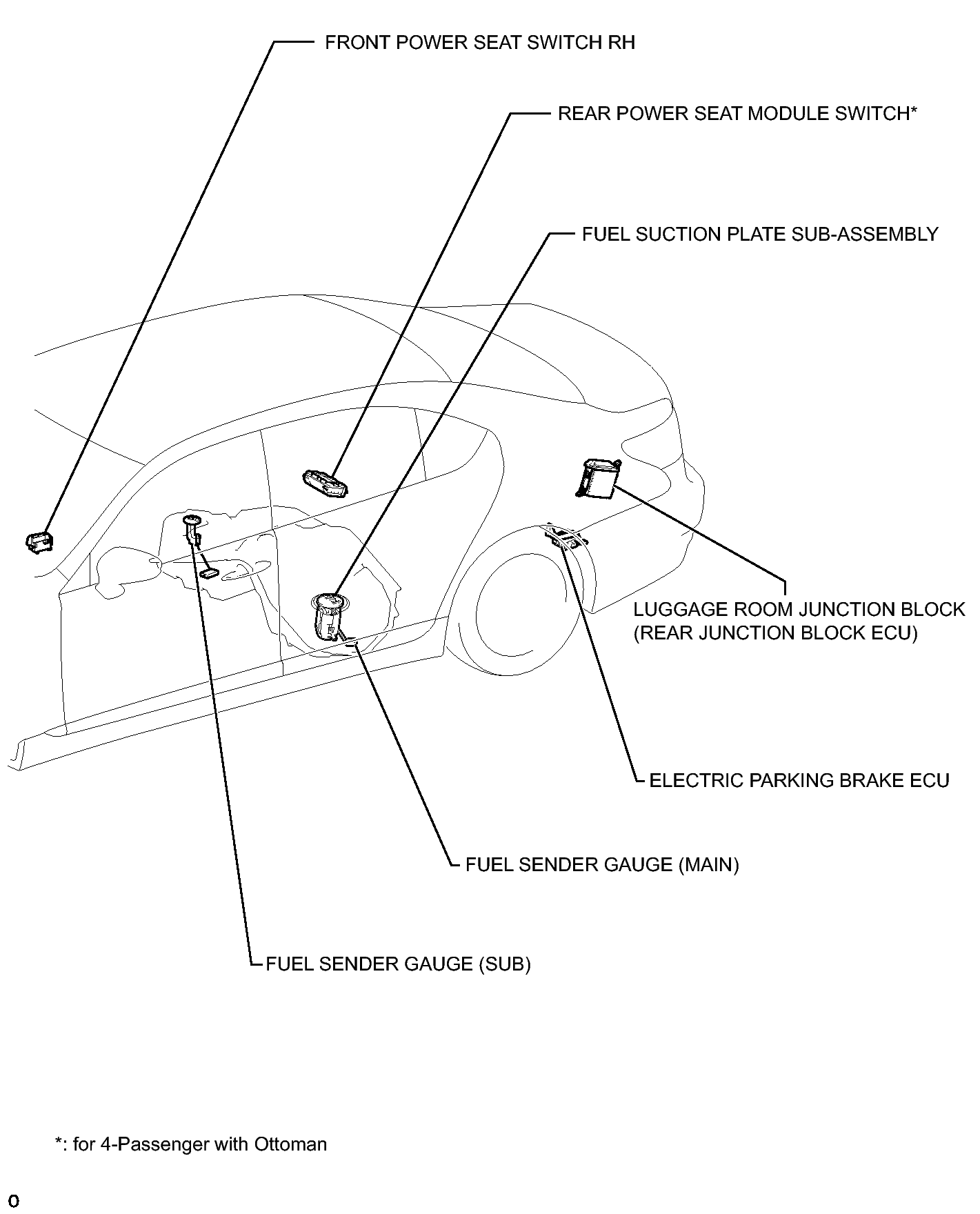

Fig 1: Meter / Gauge System Components Location (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

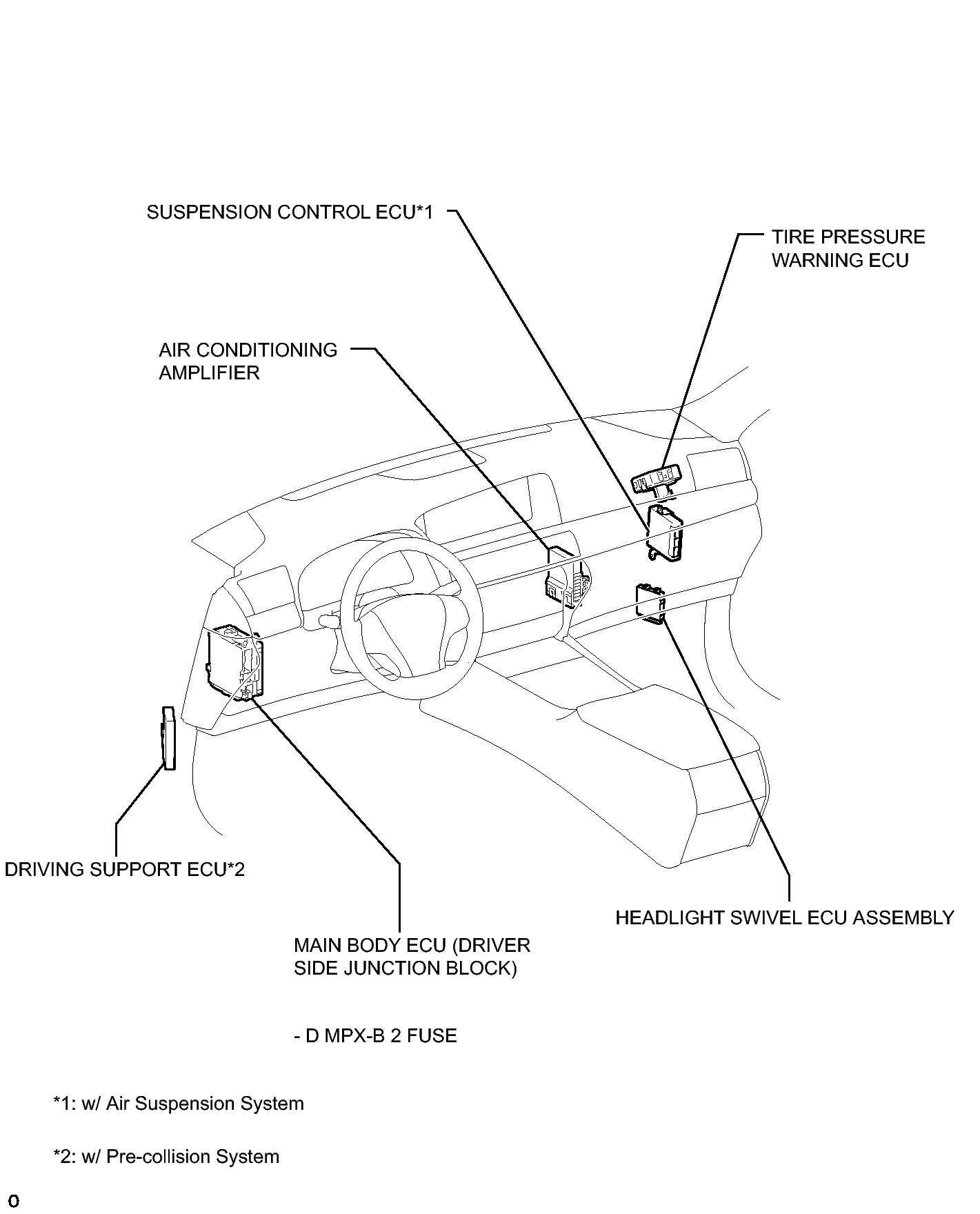

Fig 1: Meter / Gauge System Components Location (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Meter / Gauge System Components Location (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
