Components [09/2012 - ]: Illustration

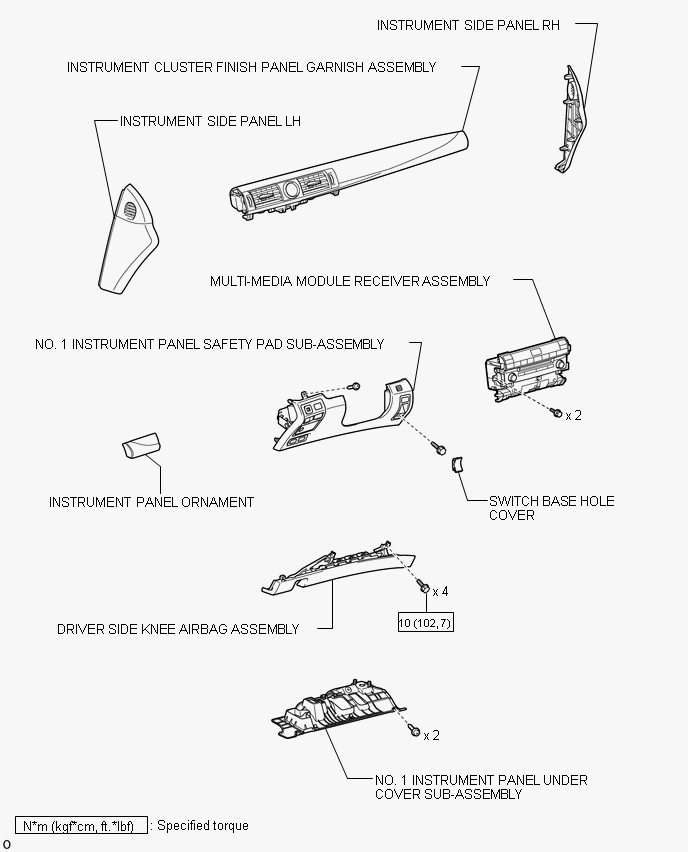

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 5)
GTY398374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

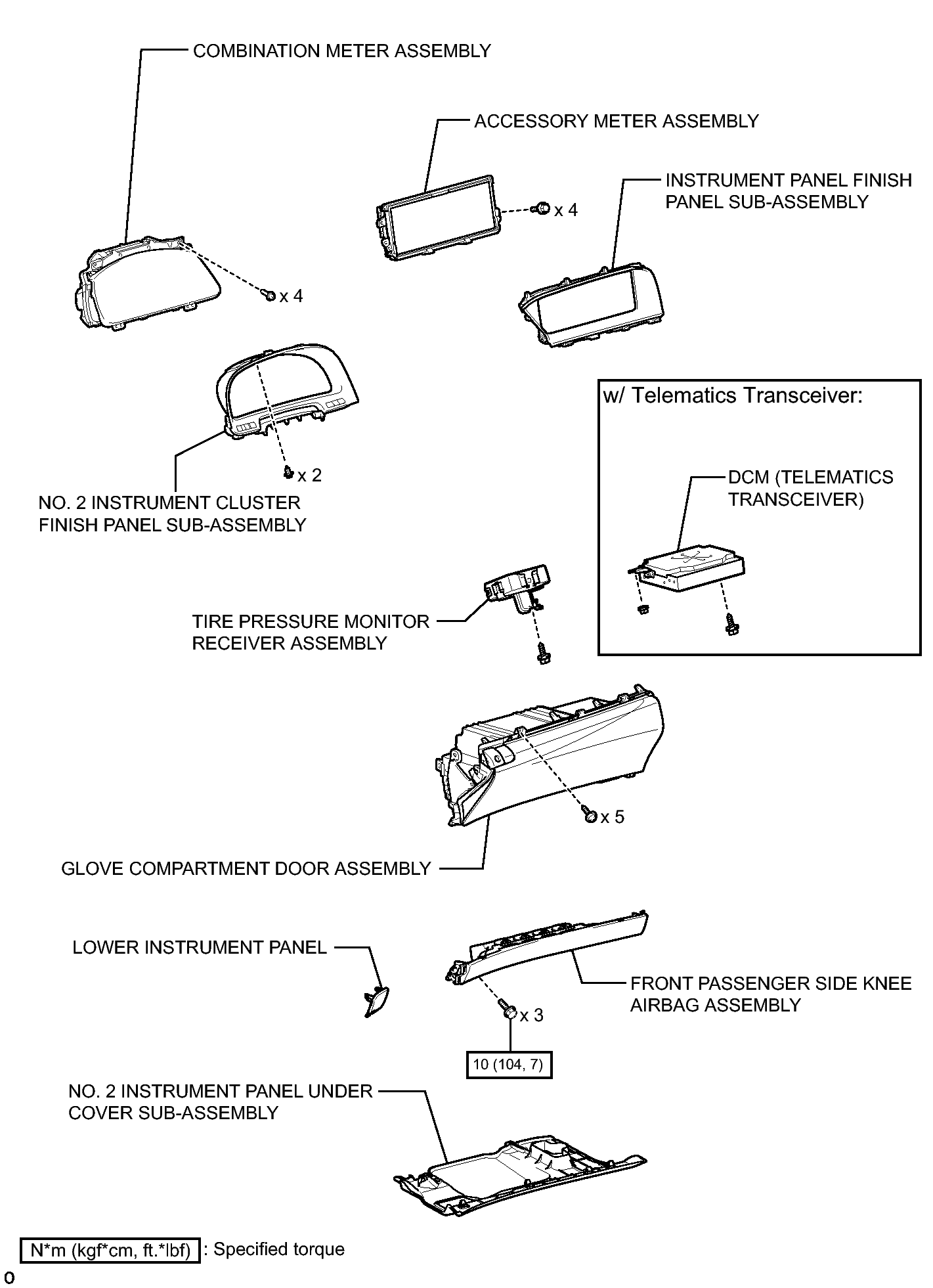

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (2 Of 5)
GTY418629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

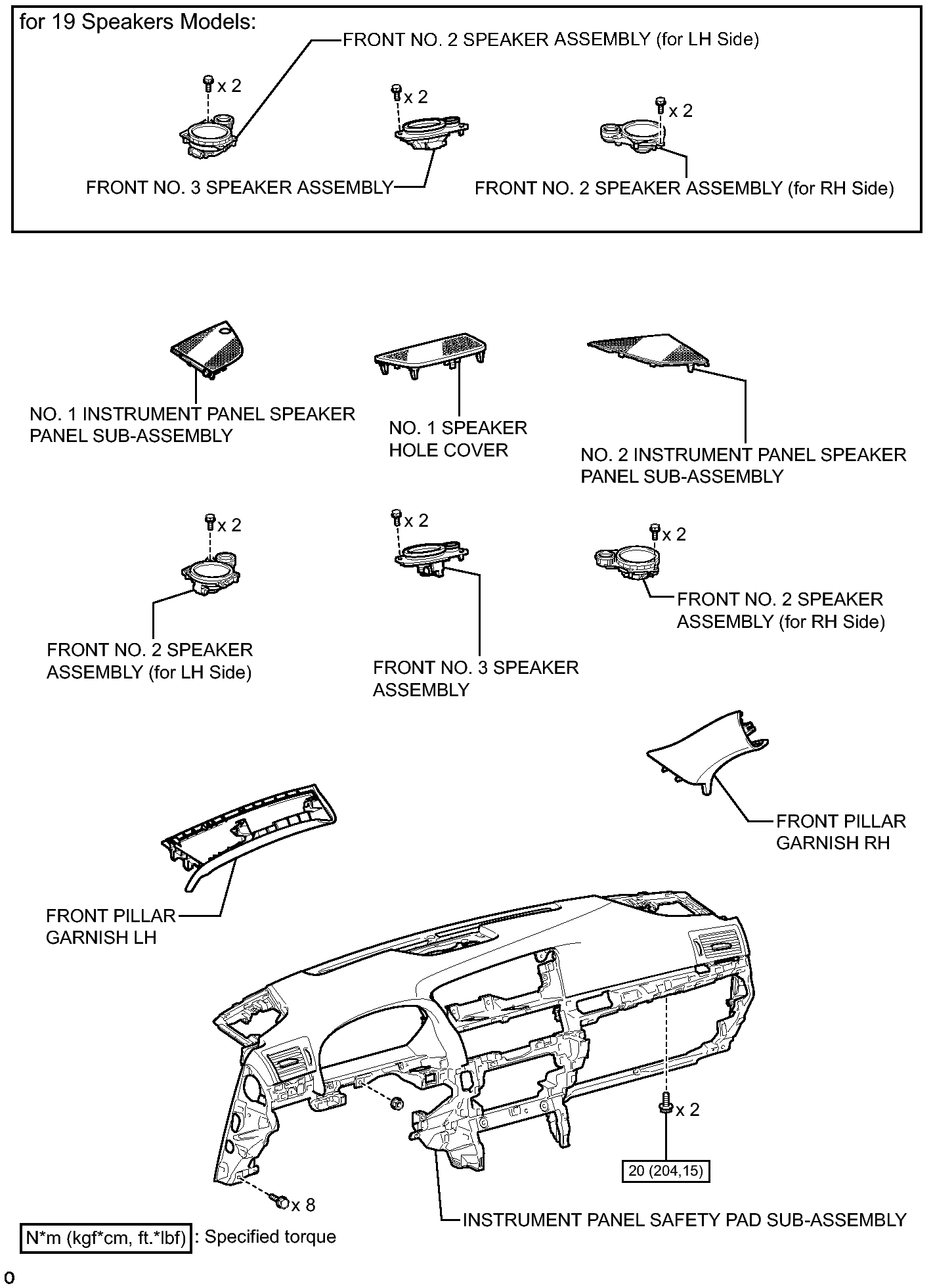

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (3 Of 5)
GTY408728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

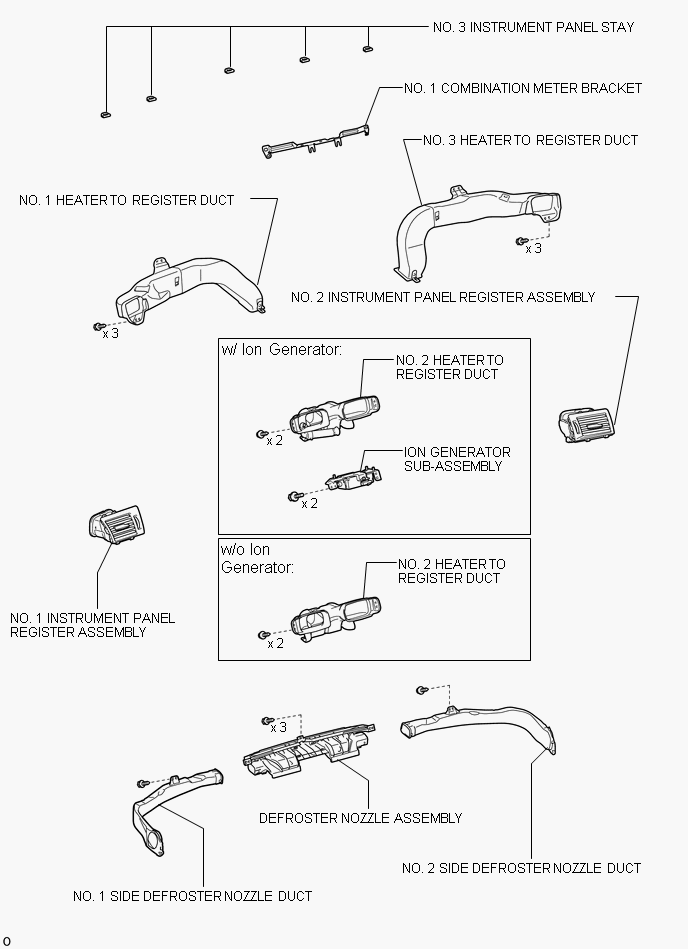

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (4 Of 5)
GTY409374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

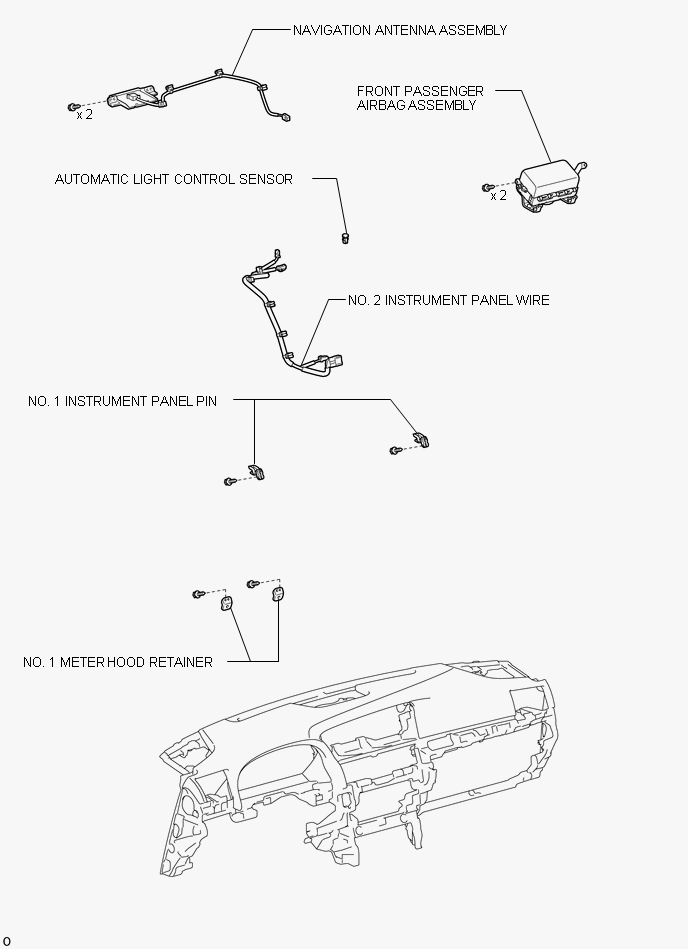

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (5 Of 5)
GTY401626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
