Parts Location [08/2012 - ]: Illustration

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 3)
GTY281330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter / Gauge System Components Location (2 Of 3)
GTY411914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

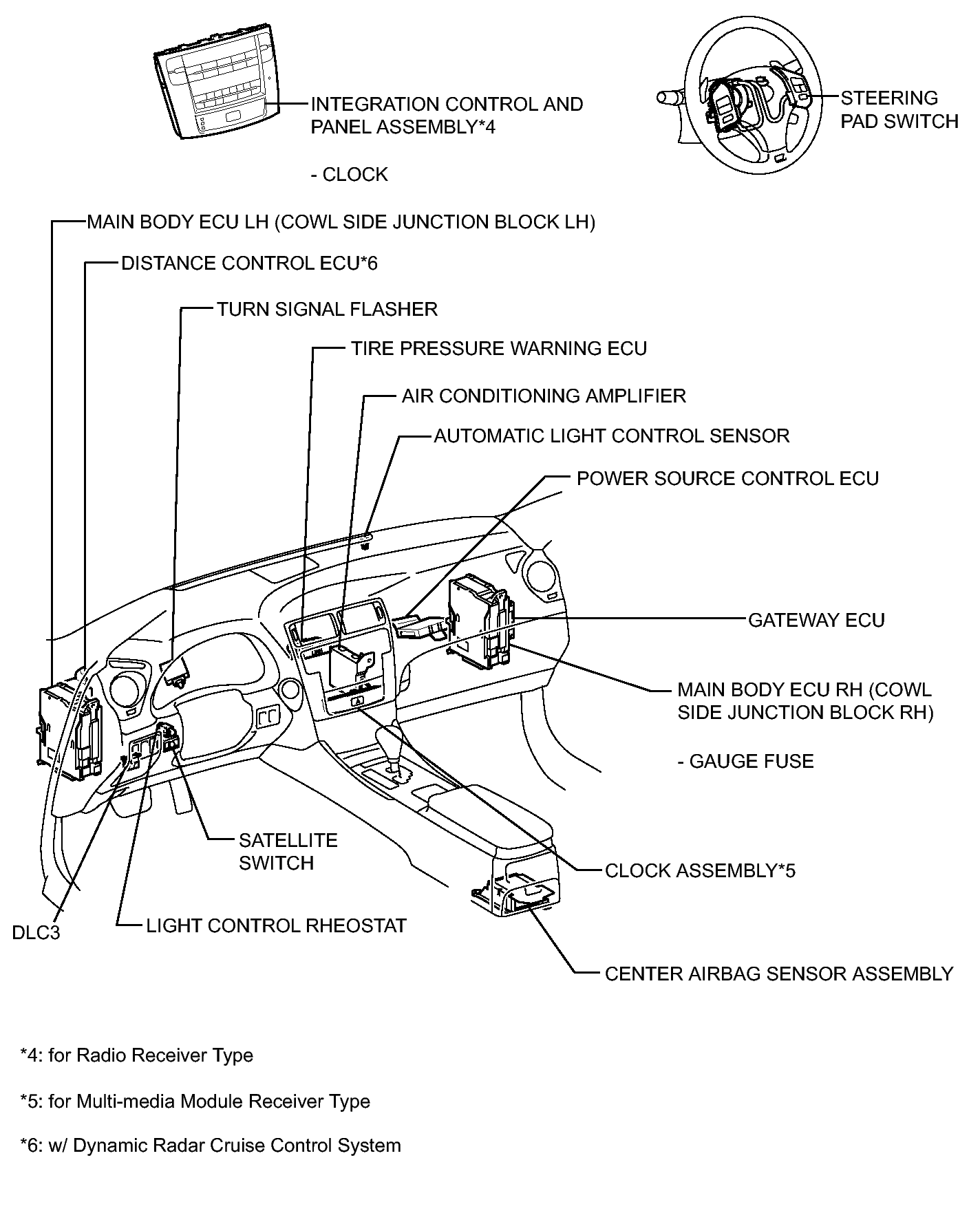

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 3)
GTY154173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
