DTC P0010: Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020: Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

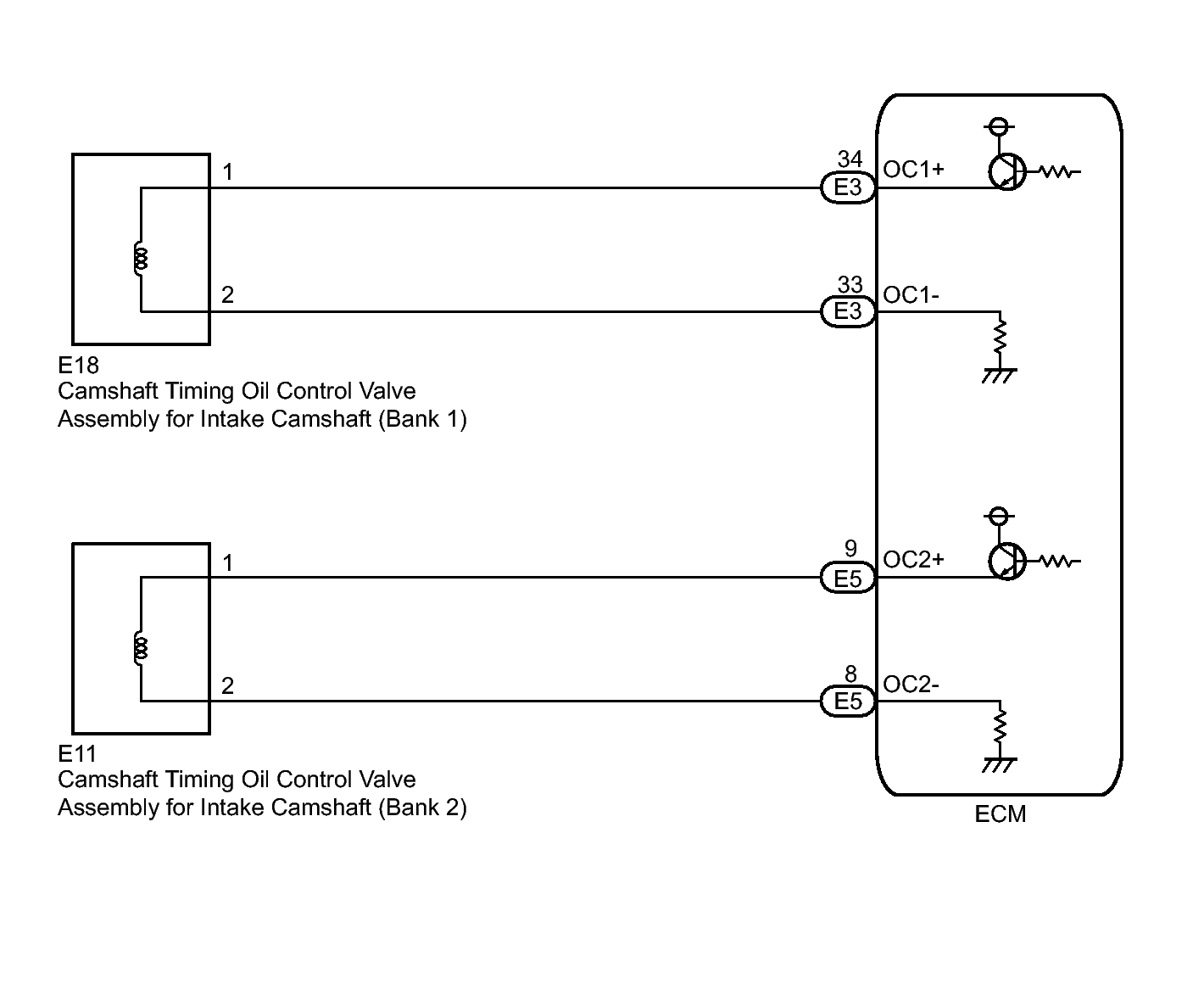

Fig 1: Identifying Intake Camshaft Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
