Parts Location [08/2012 - ]: Illustration

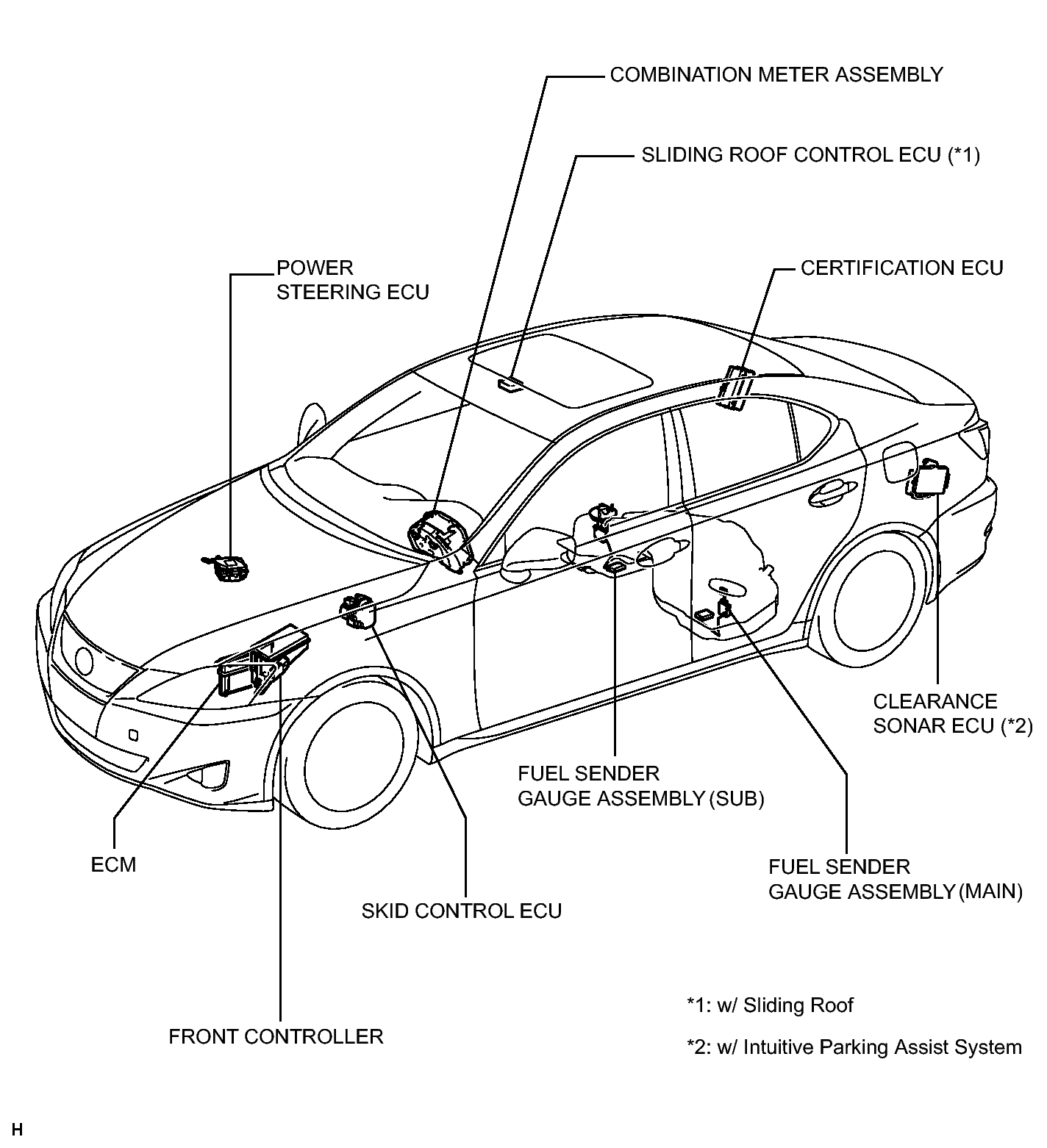

Fig 1: Identifying Meter/Gauge System Components Location (1 Of 3)
GTY414187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Components Location (2 Of 3)
GTY352332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Meter/Gauge System Replacement Components (3 Of 3)
GTY267396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
