Components [08/2012 - ]: Illustration

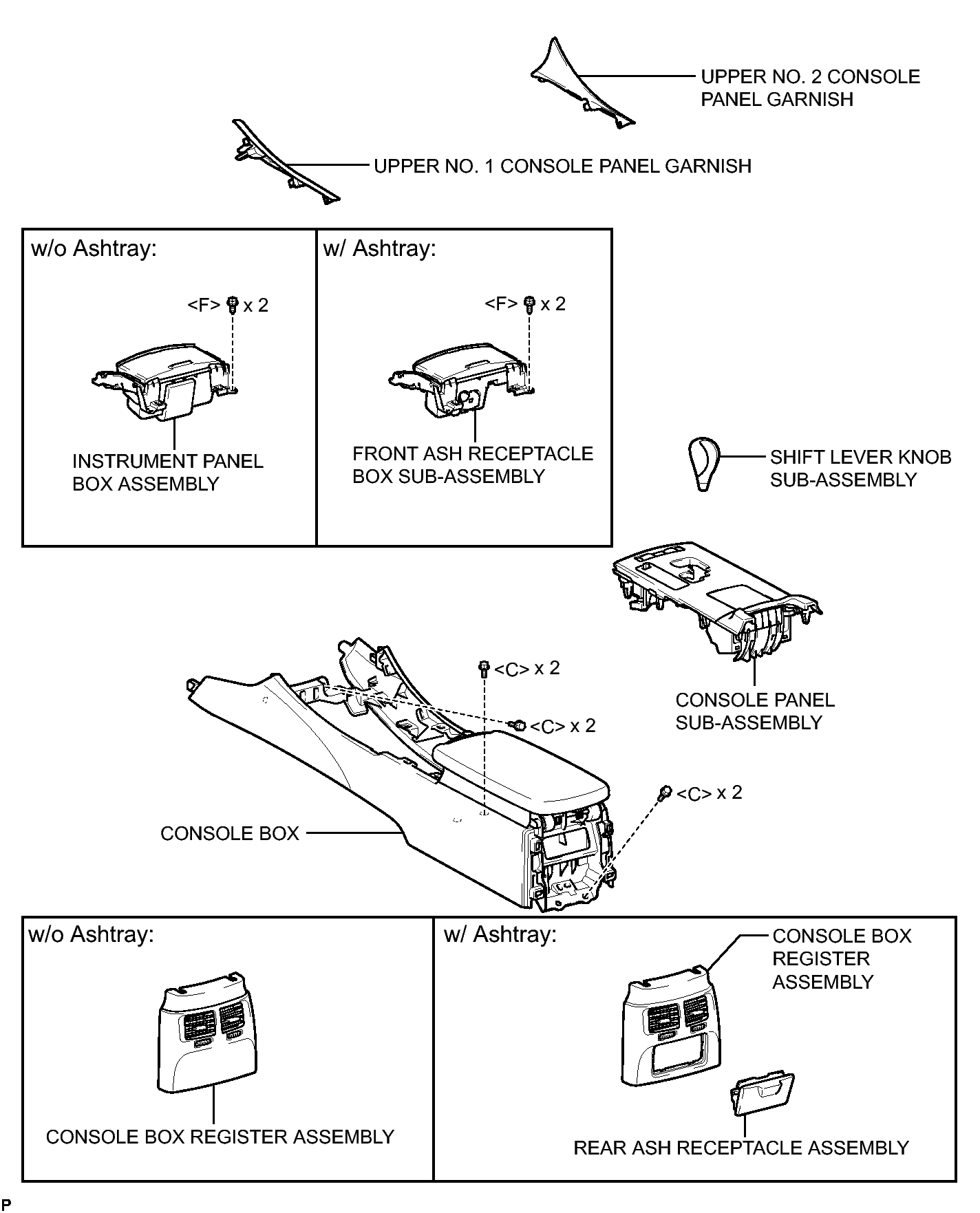

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (1 Of 8)
GTY415823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

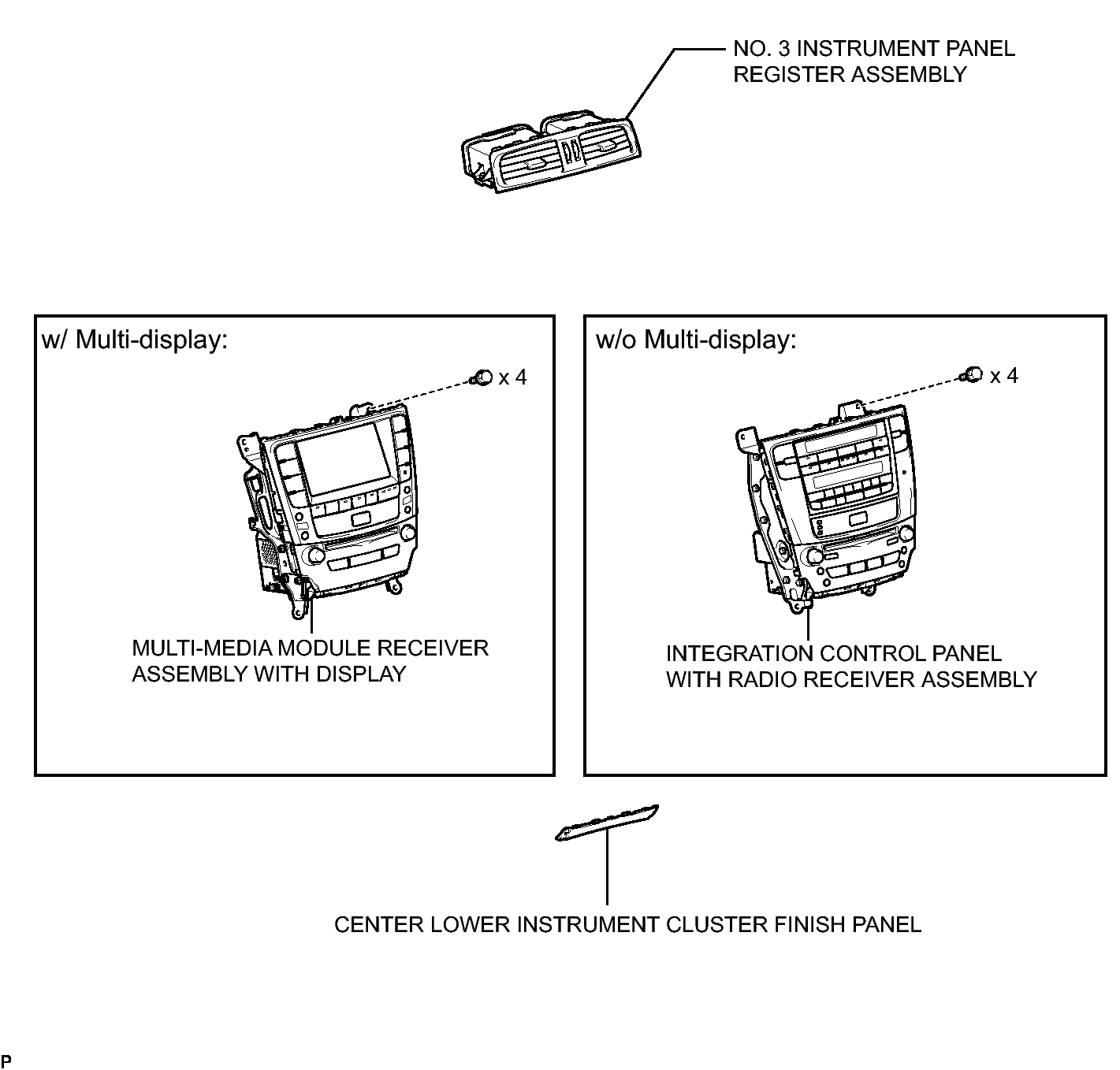

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (2 Of 8)
GTY413805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (3 Of 8) With Torque Specifications
GTY259123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (4 Of 8) With Torque Specifications
GTY360657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (5 Of 8) With Torque Specifications
GTY348906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

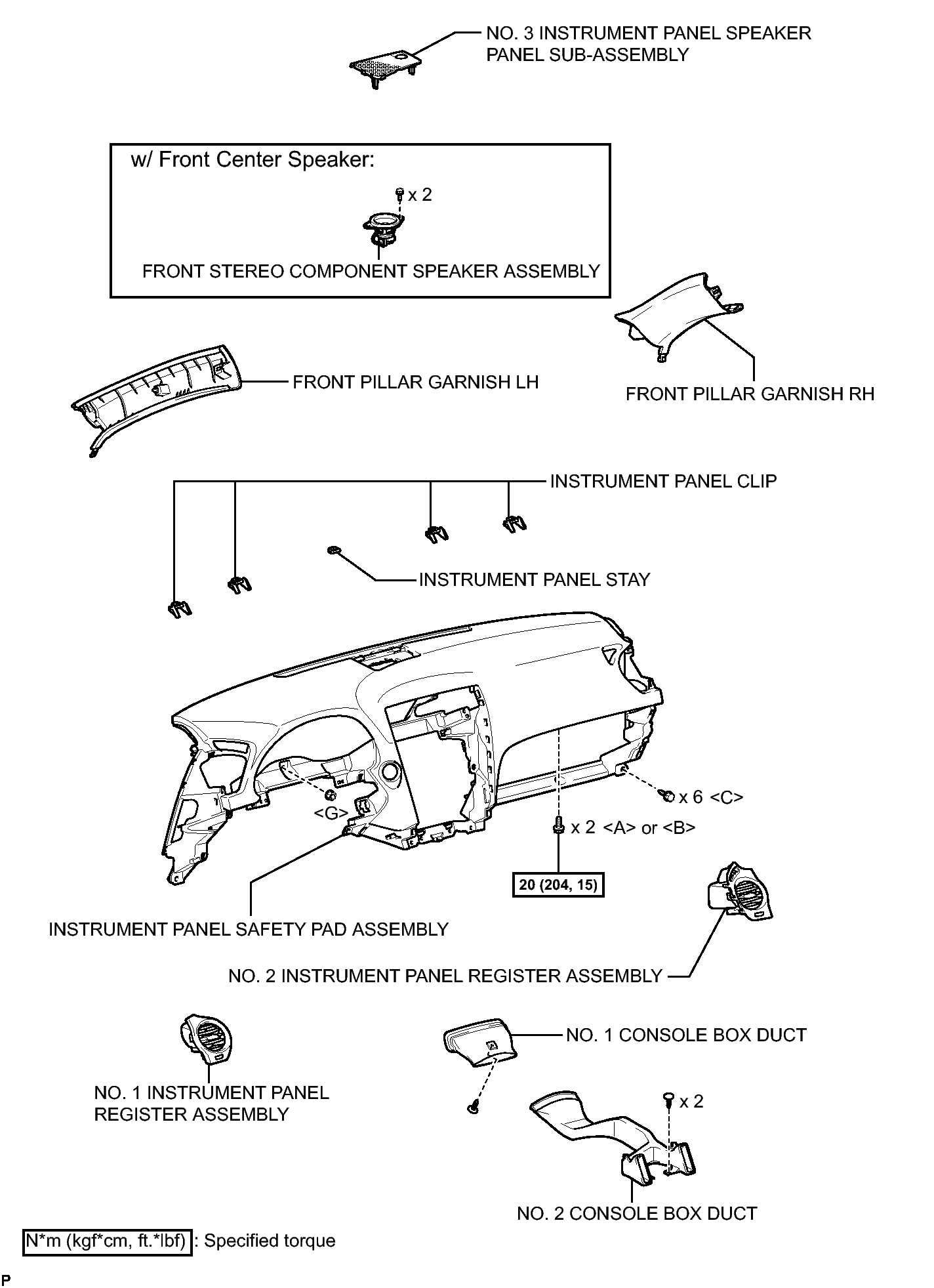

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (6 Of 8) With Torque Specifications
GTY274808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (7 Of 8)
GTY256705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Instrument Panel Safety Pad Replacement Components (8 Of 8)
GTY394777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
