Home >> Lexus >> 2013 >> GX 460 Base >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Meter / Gauge / Display (Service Information) >> Accessory Meter >> Components [06/2012 - ] >> Illustration

Components [06/2012 - ]: Illustration

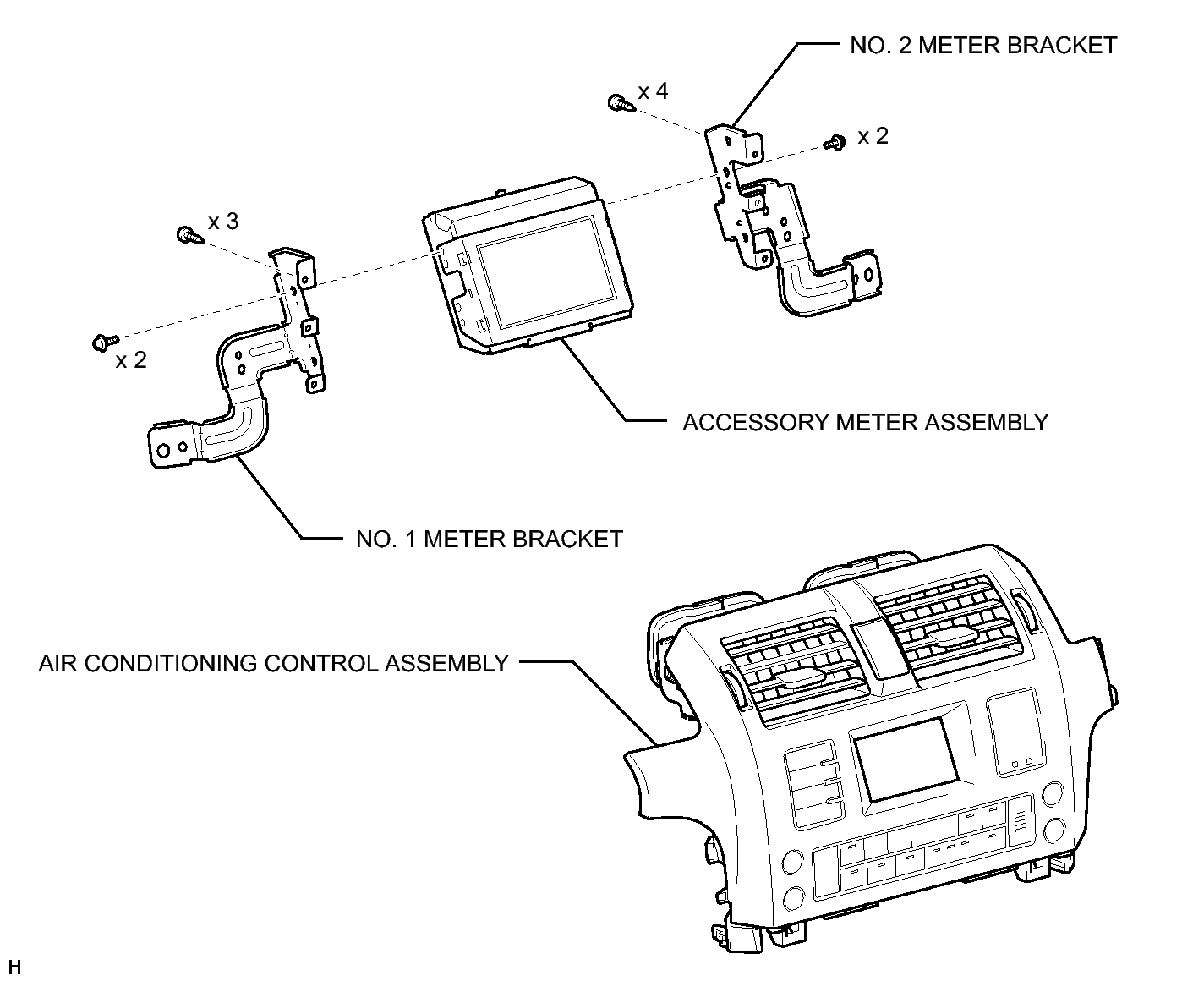

Fig 1: Identifying Accessory Meter Replacement Components
GTY258542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
