DTC B1860/64: Short in Driver Side Knee Airbag Squib Circuit; DTC B1861/64: Open in Driver Side Knee Airbag Squib Circuit; DTC B1862/64: Short to GND in Driver Side Knee Airbag Squib Circuit; DTC B1863/64: Short to B+ in Driver Side Knee Airbag Squib Circuit: Procedure

1. Turn the power switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
3. Disconnect the connector from the lower No. 1 instrument panel airbag assembly.
4. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
   WARNING:

   Never connect the tester to the lower No. 1 instrument panel airbag assembly (driver side knee squib) for measurement, as this may lead to a serious injury due to airbag deployment.

   NOTE:

   • Do not forcibly insert SST into the terminals of the connector when connecting SST.
   • Insert SST straight into the terminals of the connector.
   • SST: 09843-18061
5. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
6. Turn the power switch on (IG), and wait for at least 60 seconds.
7. Clear the DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .
8. Turn the power switch off.
9. Turn the power switch on (IG), and wait for at least 60 seconds.
10. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

    OK

    DTC B1860/64, B1861/64, B1862/64 or B1863/64 is not output.

    HINT:

    Codes other than DTC B1860/64, B1861/64, B1862/64 and B1863/64 may be output at this time, but they are not related to this check.

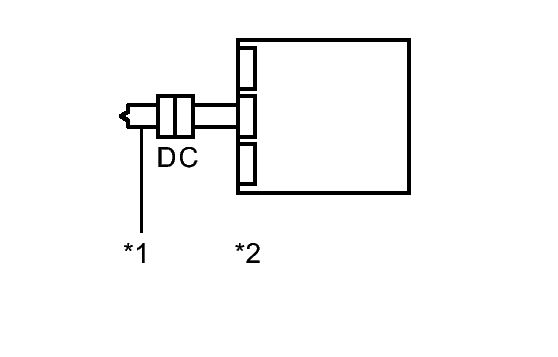

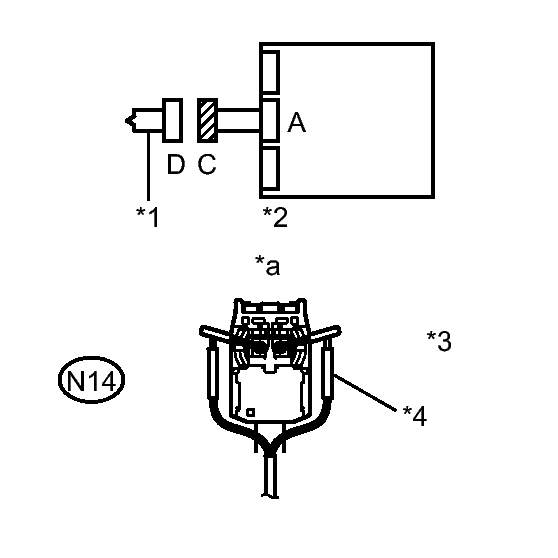

    TEXT IN ILLUSTRATION



    *1	Driver Side Knee Squib
    *2	Center Airbag Sensor Assembly
    *3	Connector C
    *4	SST
    *a	Front view of wire harness connector (to Driver Side Knee Squib)

NG → See step   2

OK → See step   6

1. Turn the power switch off.
2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
3. Disconnect SST from connector C.
4. Disconnect the connectors from the center airbag sensor assembly.
5. Check that the connectors (on the center airbag sensor assembly side and lower No. 1 instrument panel airbag assembly side) are not damaged.

   OK

   The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

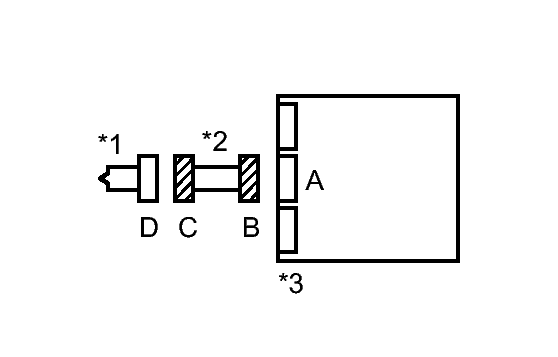

   TEXT IN ILLUSTRATION



   *1	Driver Side Knee Squib
   *2	Instrument Panel Wire
   *3	Center Airbag Sensor Assembly

NG → REPLACE INSTRUMENT PANEL WIRE

OK: Go to next step

1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the power switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   N14-1 (DK+) - Body ground	Power switch on (IG)	Below 1 V
   N14-2 (DK-) - Body ground	Power switch on (IG)	Below 1 V

4. Turn the power switch off.
5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
6. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N14-1 (DK+) - N14-2 (DK-)	Always	Below 1 Ω

7. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM [03/2012 - ] .
8. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N14-1 (DK+) - N14-2 (DK-)	Always	1 MΩ or higher
   N14-1 (DK+) - Body ground	Always	1 MΩ or higher
   N14-2 (DK-) - Body ground	Always	1 MΩ or higher

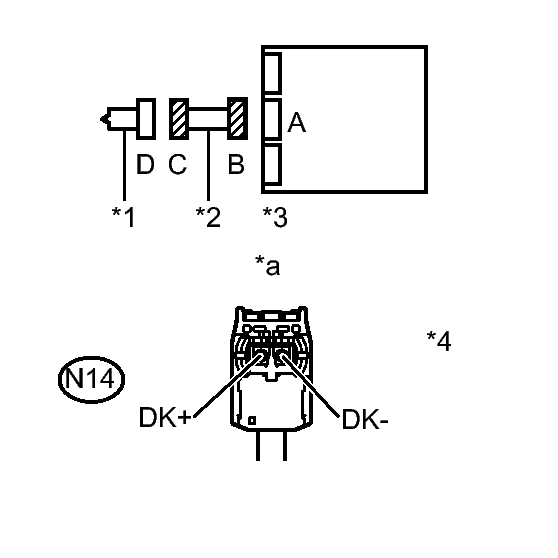

   TEXT IN ILLUSTRATION



   *1	Driver Side Knee Squib
   *2	Instrument Panel Wire
   *3	Center Airbag Sensor Assembly
   *4	Connector C
   *a	Front view of wire harness connector (to Driver Side Knee Squib)

9. Restore the released activation prevention mechanism of connector B to its original condition.

NG → REPLACE INSTRUMENT PANEL WIRE

OK: Go to next step

1. Connect the connectors to the lower No. 1 instrument panel airbag assembly and center airbag sensor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
3. Turn the power switch on (IG), and wait for at least 60 seconds.
4. Clear the DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .
5. Turn the power switch off.
6. Turn the power switch on (IG), and wait for at least 60 seconds.
7. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

   OK

   DTC B1860/64, B1861/64, B1862/64 or B1863/64 is not output.

   HINT:

   Codes other than DTC B1860/64, B1861/64, B1862/64 and B1863/64 may be output at this time, but they are not related to this check.

   TEXT IN ILLUSTRATION



   *1	Driver Side Knee Squib
   *2	Center Airbag Sensor Assembly

NG → See step   7

OK → See step   5
