DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit: Procedure

  1. CHECK FRONT SEAT AIRBAG ASSEMBLY LH (FRONT SIDE SQUIB LH)
    1. Turn the power switch off.

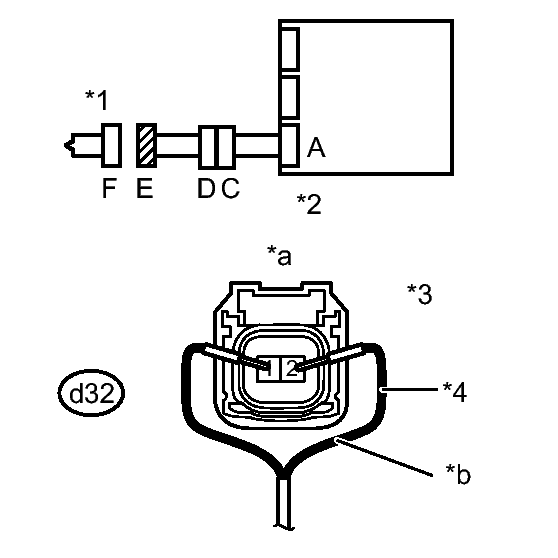

      GTY412453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Disconnect the connector from the front seat airbag LH.
    4. Connect the red wire side of SST (resistance: 2.1 Ω) to connector E.
      WARNING:

      Never connect the tester to the front seat airbag LH (front side squib LH) for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting SST.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    5. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    6. Turn the power switch on (IG), and wait for at least 60 seconds.
    7. Clear the DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    8. Turn the power switch off.
    9. Turn the power switch on (IG), and wait for at least 60 seconds.
    10. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1825/56, B1826/56, B1827/56 or B1828/56 is not output.

      HINT:

      Codes other than DTC B1825/56, B1826/56, B1827/56 and B1828/56 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Front Side Squib LH
      *2 Center Airbag Sensor Assembly
      *3 Connector E
      *4 SST
      *a Front view of wire harness connector
      (to Front Side Squib LH)
      *b Color: Red

    NG → See step   2

    OK → See step   8

  2. CHECK CONNECTOR
    1. Turn the power switch off.
    2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    3. Disconnect SST from connector E.
    4. Disconnect the connectors from the center airbag sensor assembly.
    5. Check that the connectors (on the center airbag sensor assembly side and front seat airbag LH side) are not damaged.

      OK

      The lock button is not disengaged, and the claw of the lock is not deformed or damaged.

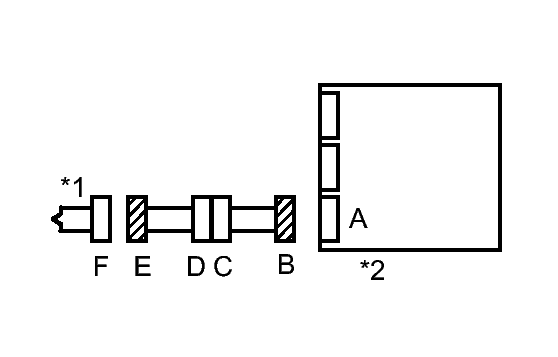

      GTY415645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front Side Squib LH
      *2 Center Airbag Sensor Assembly

    NG → REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

  3. CHECK FRONT SIDE SQUIB LH CIRCUIT
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

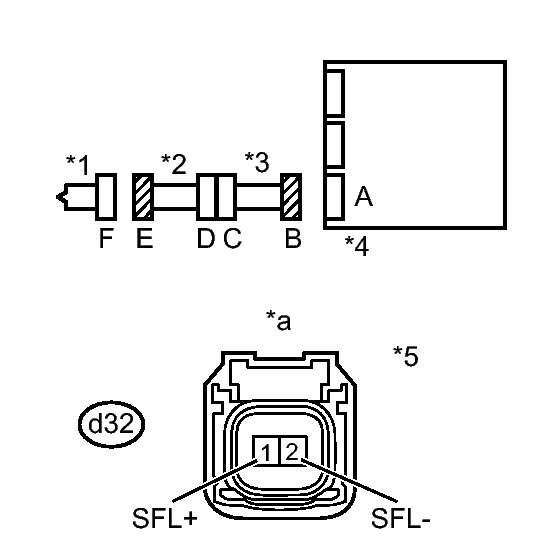

      GTY408978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      d32-1 (SFL+) - Body ground Power switch on (IG) Below 1 V
      d32-2 (SFL-) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      d32-1 (SFL+) - d32-2 (SFL-) Always Below 1 Ω
    7. Release the activation prevention mechanism built into connector B. Refer to DIAGNOSIS SYSTEM [03/2012 - ] .
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      d32-1 (SFL+) - d32-2 (SFL-) Always 1 MΩ or higher
      d32-1 (SFL+) - Body ground Always 1 MΩ or higher
      d32-2 (SFL-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front Side Squib LH
      *2 Front Seat Wire LH
      *3 No. 2 Floor Wire
      *4 Center Airbag Sensor Assembly
      *5 Connector E
      *a Front view of wire harness connector
      (to Front Side Squib LH)
    9. Restore the released activation prevention mechanism of connector B to its original condition.

    NG → See step   5

    OK: Go to next step

  4. CHECK CENTER AIRBAG SENSOR ASSEMBLY
    1. Connect the connectors to the front seat airbag LH and center airbag sensor assembly.

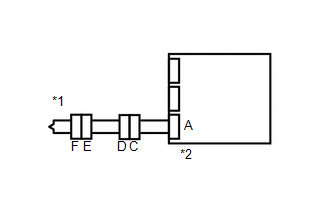

      GTY404193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
    3. Turn the power switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .
    5. Turn the power switch off.
    6. Turn the power switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs. Refer to DTC CHECK / CLEAR [03/2012 - ] .

      OK

      DTC B1825/56, B1826/56, B1827/56 or B1828/56 is not output.

      HINT:

      Codes other than DTC B1825/56, B1826/56, B1827/56 and B1828/56 may be output at this time, but they are not related to this check.

      TEXT IN ILLUSTRATION

      *1 Front Side Squib LH
      *2 Center Airbag Sensor Assembly

    NG → See step   6

    OK → See step   7

  5. CHECK FRONT SEAT WIRE LH
    1. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.

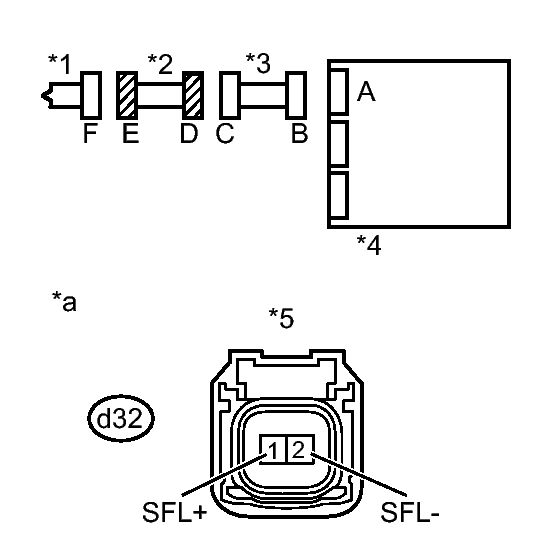

      GTY410821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      d32-1 (SFL+) - Body ground Power switch on (IG) Below 1 V
      d32-2 (SFL-) - Body ground Power switch on (IG) Below 1 V
    4. Turn the power switch off.
    5. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 90 seconds.
    6. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      d32-1 (SFL+) - d32-2 (SFL-) Always Below 1 Ω
    7. Release the activation prevention mechanism built into connector D. Refer to DIAGNOSIS SYSTEM [03/2012 - ] .
    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      d32-1 (SFL+) - d32-2 (SFL-) Always 1 MΩ or higher
      d32-1 (SFL+) - Body ground Always 1 MΩ or higher
      d32-2 (SFL-) - Body ground Always 1 MΩ or higher
      TEXT IN ILLUSTRATION

      *1 Front Side Squib LH
      *2 Front Seat Wire LH
      *3 No. 2 Floor Wire
      *4 Center Airbag Sensor Assembly
      *5 Connector E
      *a Front view of wire harness connector
      (to Front Side Squib LH)
    9. Restore the released activation prevention mechanism of connector D to its original condition.

    NG → REPLACE FRONT SEAT WIRE LH

    OK → REPLACE NO. 2 FLOOR WIRE

  6. REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [03/2012 - ]
  7. USE SIMULATION METHOD TO CHECK. Refer to  DIAGNOSIS SYSTEM [03/2012 - ]
  8. REPLACE FRONT SEAT AIRBAG ASSEMBLY LH. Refer to  REMOVAL [03/2012 - ]
