DTC B1693/81: Door Side Airbag Sensor RH Initialization Incomplete; DTC B1698/82: Door Side Airbag Sensor LH Initialization Incomplete: Wiring Diagram

Fig 1: Door Side Airbag Sensor Wiring Diagram RH
GTY413710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

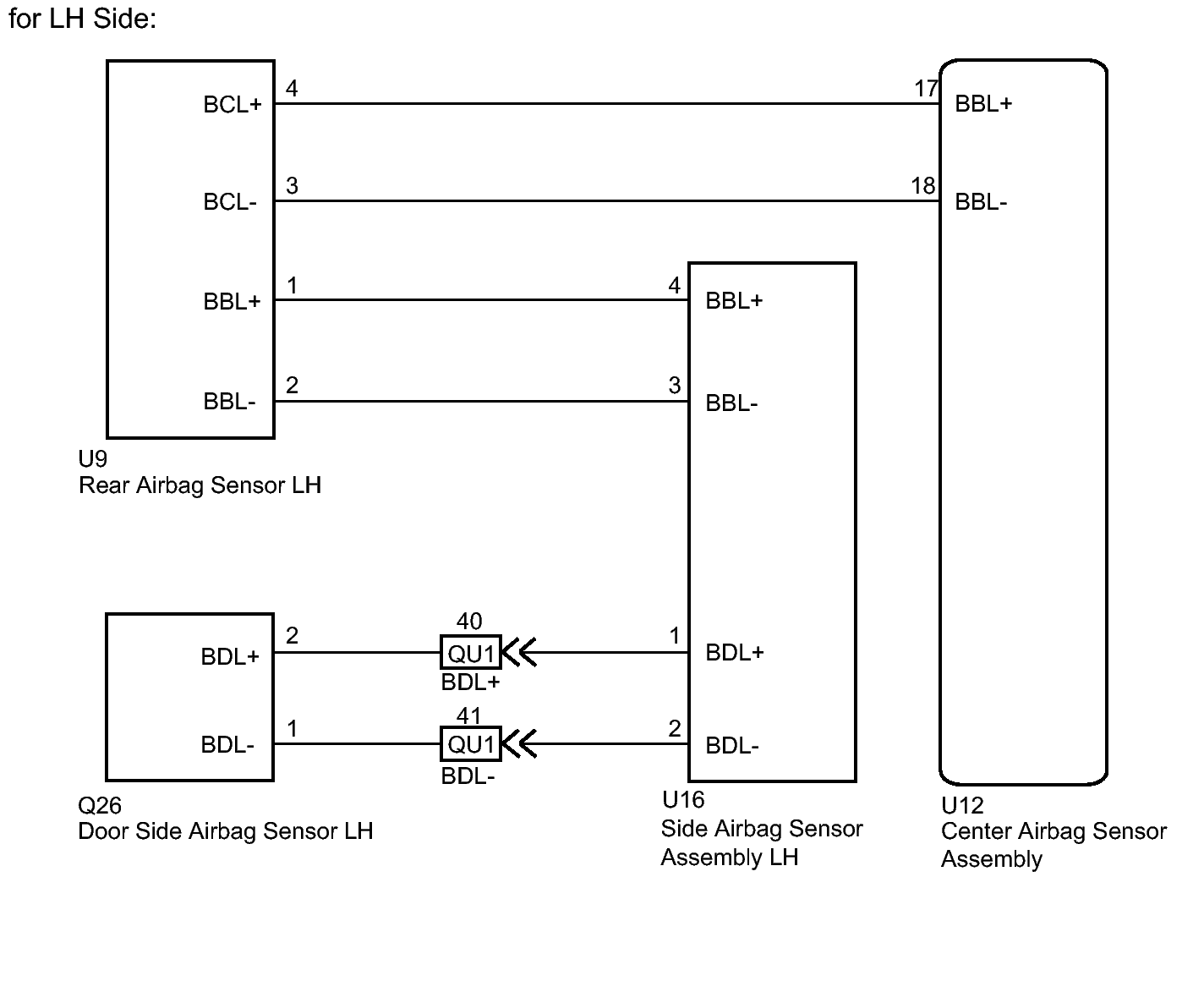

Fig 2: Door Side Airbag Sensor Wiring Diagram LH
GTY413927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
