Removal [03/2012 - ]

  1. REMOVE COMBINATION METER ASSEMBLY

    Refer to REMOVAL [03/2012 - ]

  2. REMOVE COMBINATION METER MIRROR ECU

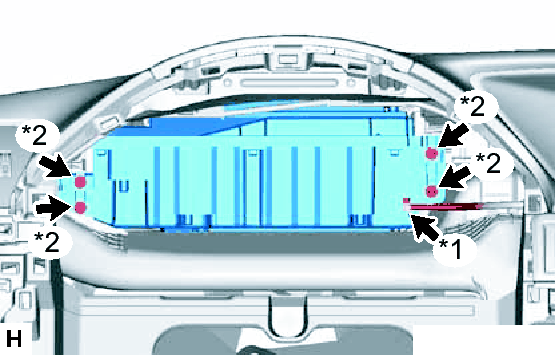

    Fig 1: Identifying Combination Meter Mirror ECU Connector And Screws
    GTY406840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the connector.
    2. Remove the 4 screws and combination meter mirror ECU.
      TEXT IN ILLUSTRATION

      *1 Connector
      *2 Screw
