Parts Location [03/2012 - ]: Illustration

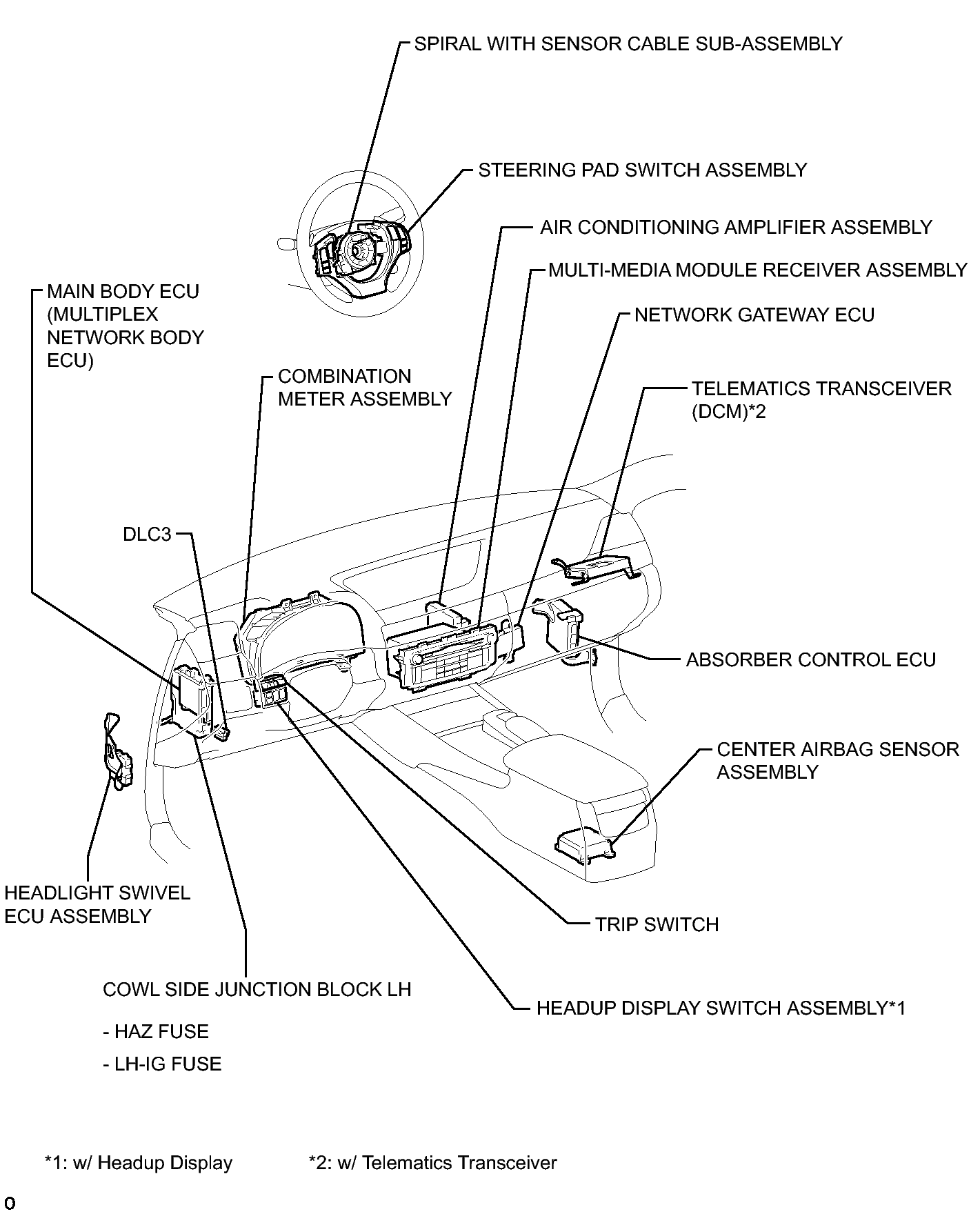

Fig 1: Identifying Meter / Gauge / Display Components Location (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

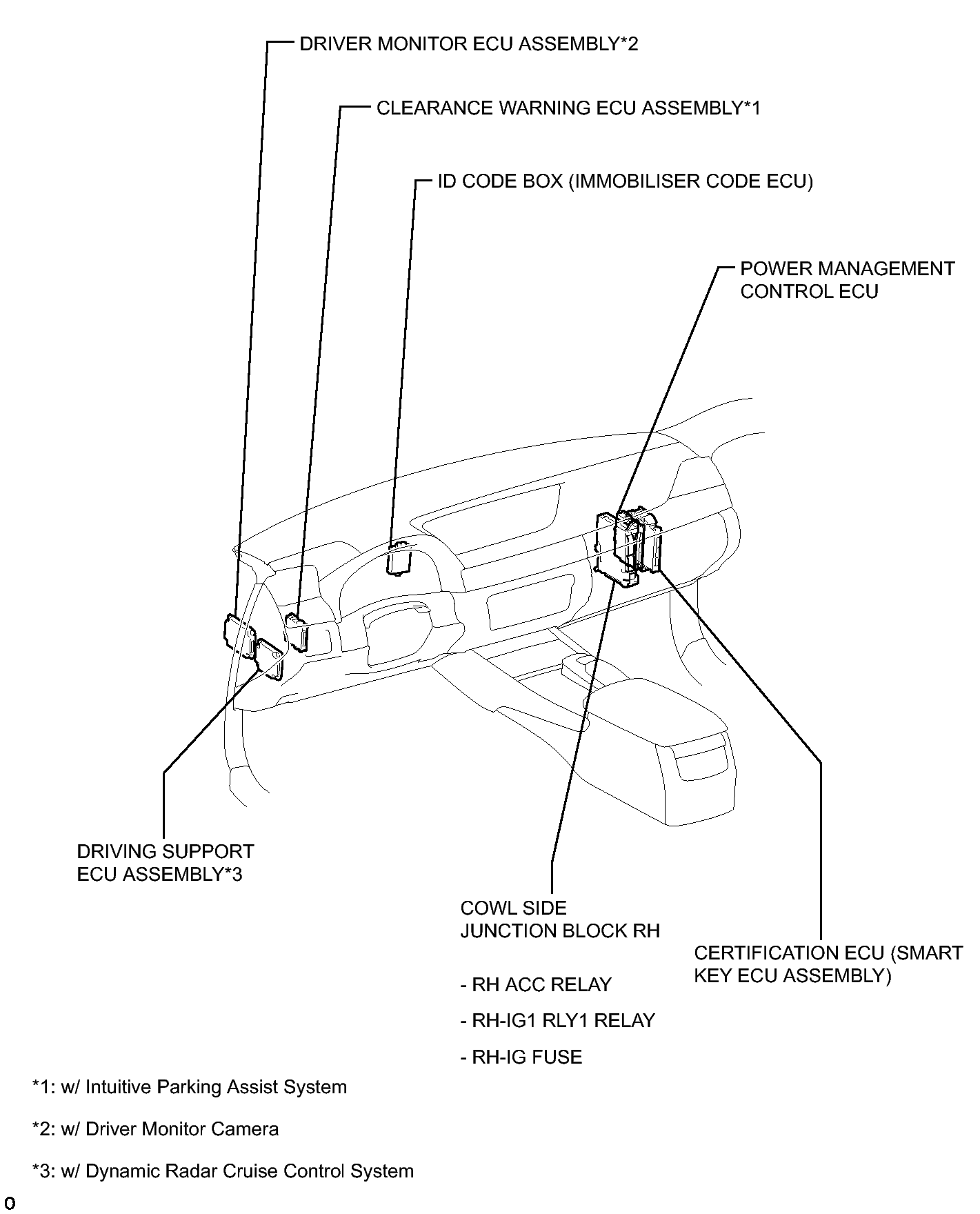

Fig 1: Identifying Meter / Gauge / Display Components Location (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

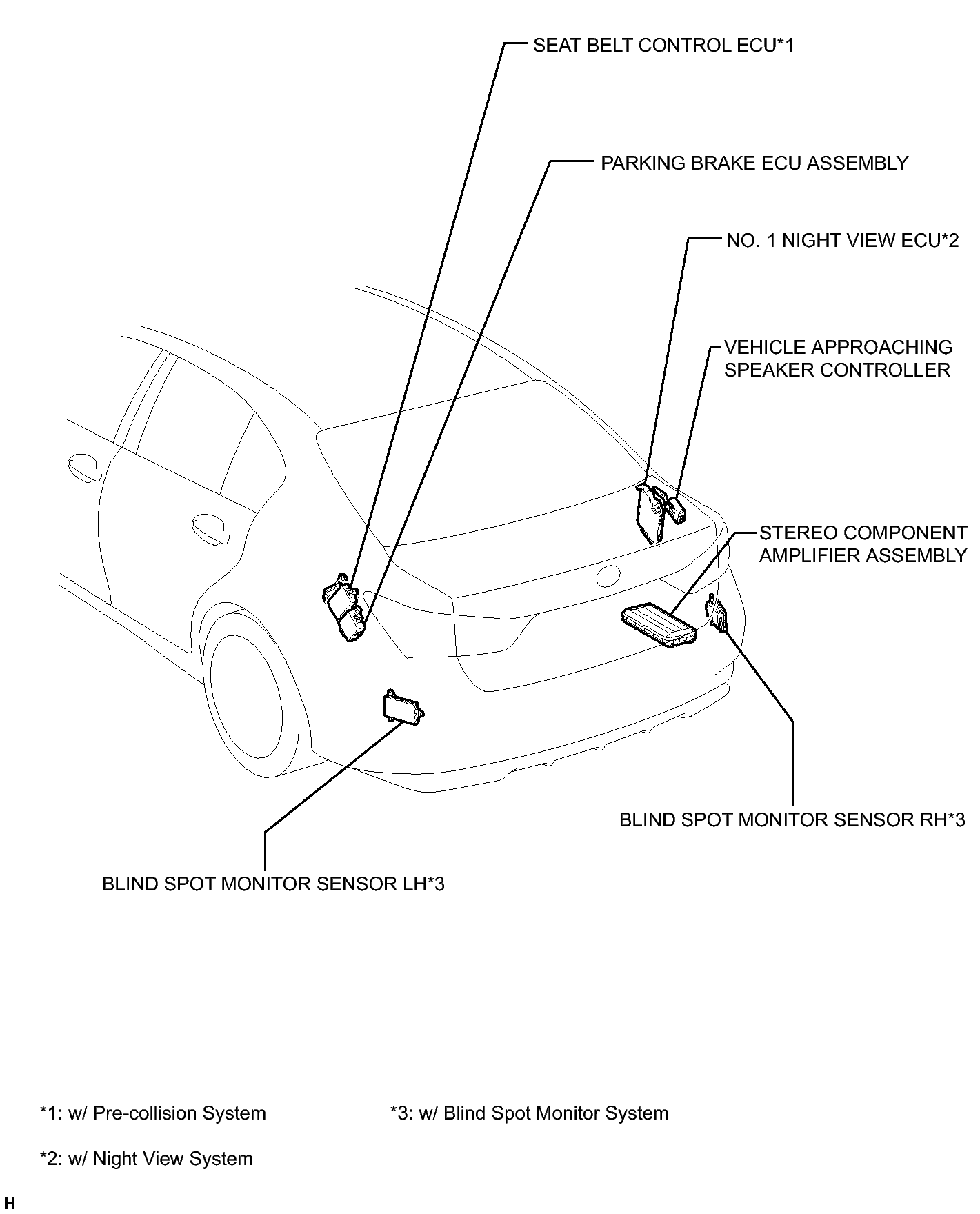

Fig 1: Identifying Meter / Gauge / Display Components Location (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

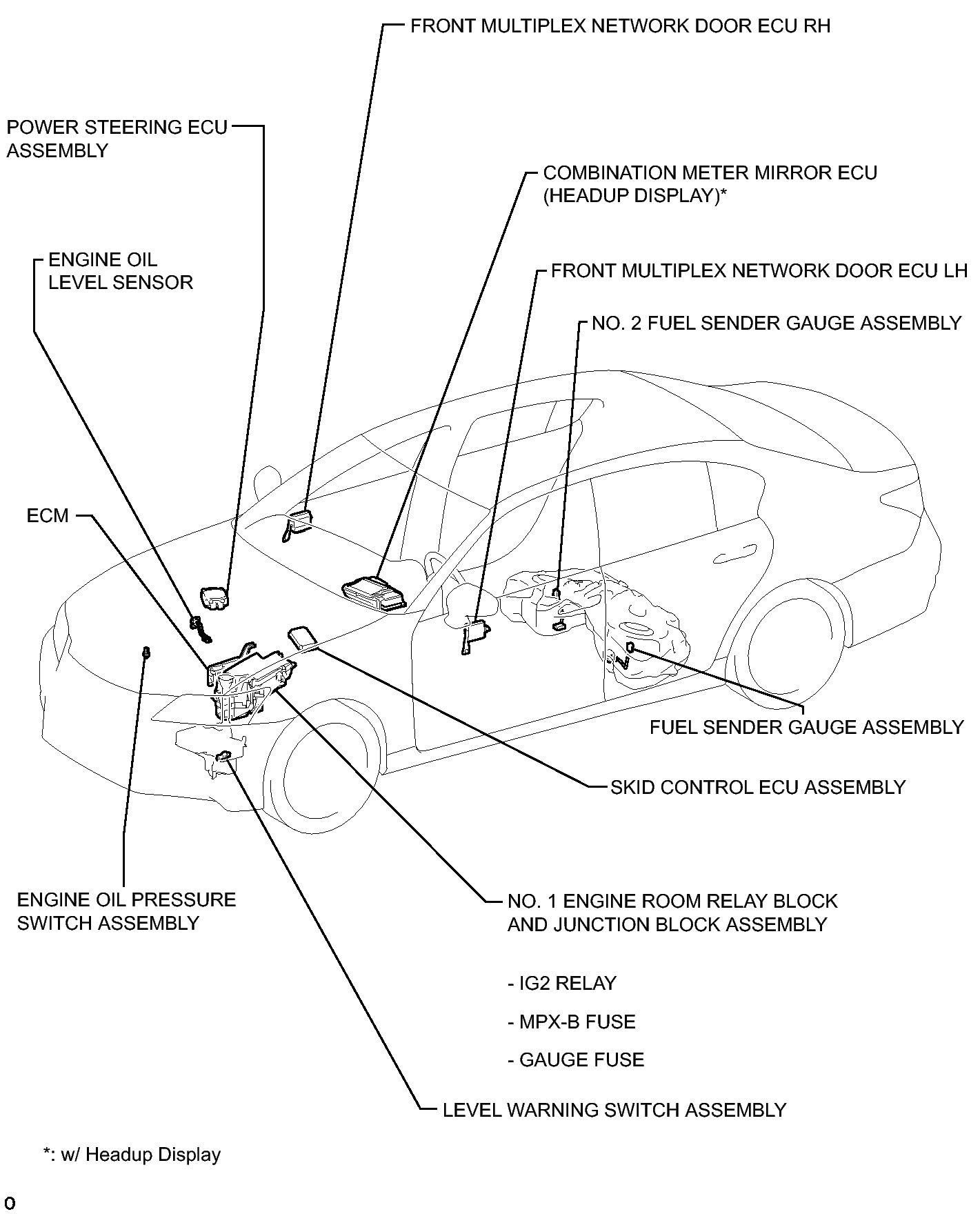

Fig 1: Identifying Meter / Gauge / Display Components Location (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Meter / Gauge / Display Components Location (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
