DTC B1500: Fuel Sender Open Detected: Wiring Diagram

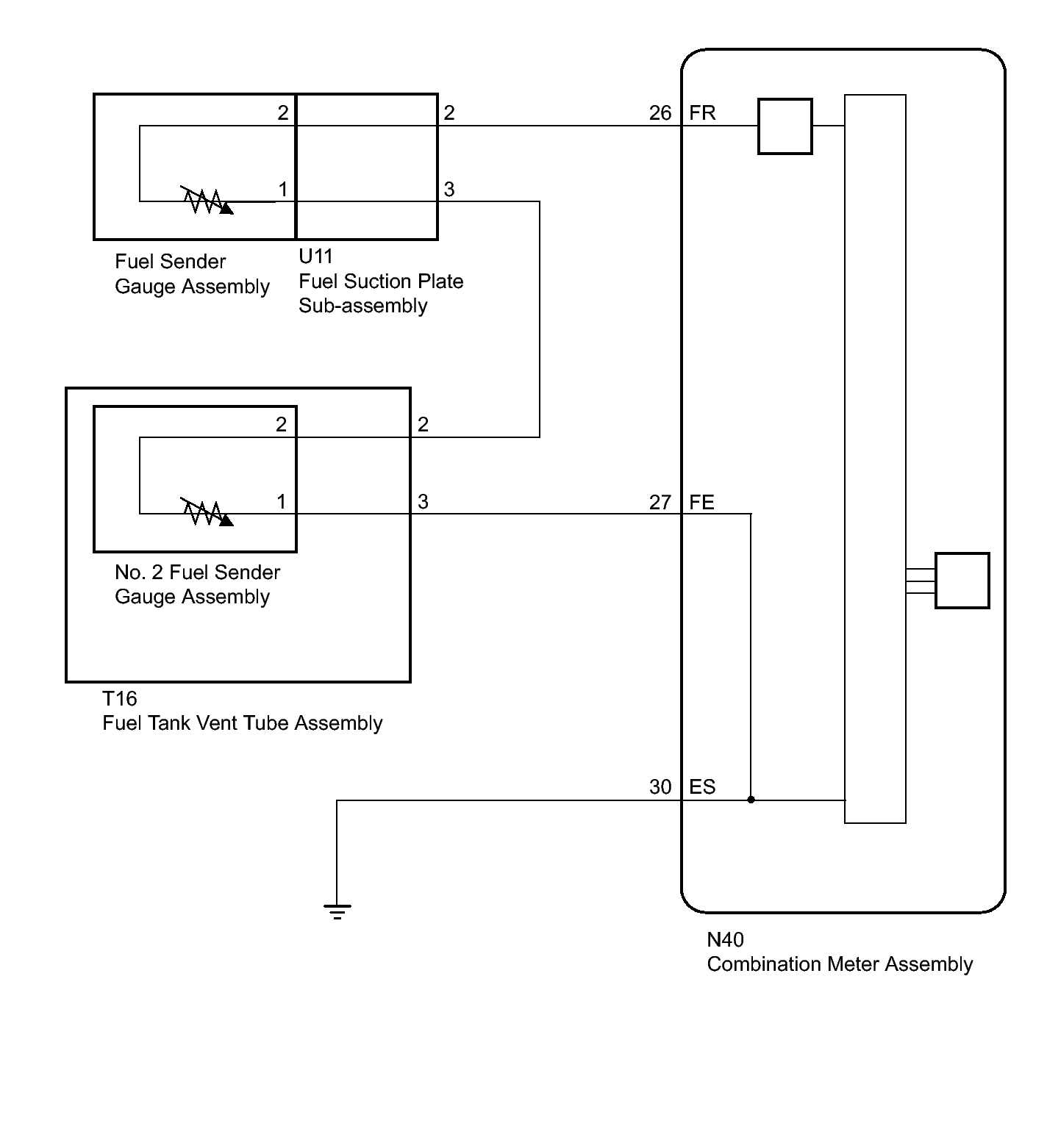

Fig 1: Fuel Sender Gauge Wiring Diagram

GTY405436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
