SRS Warning Light does not Come ON: Wiring Diagram

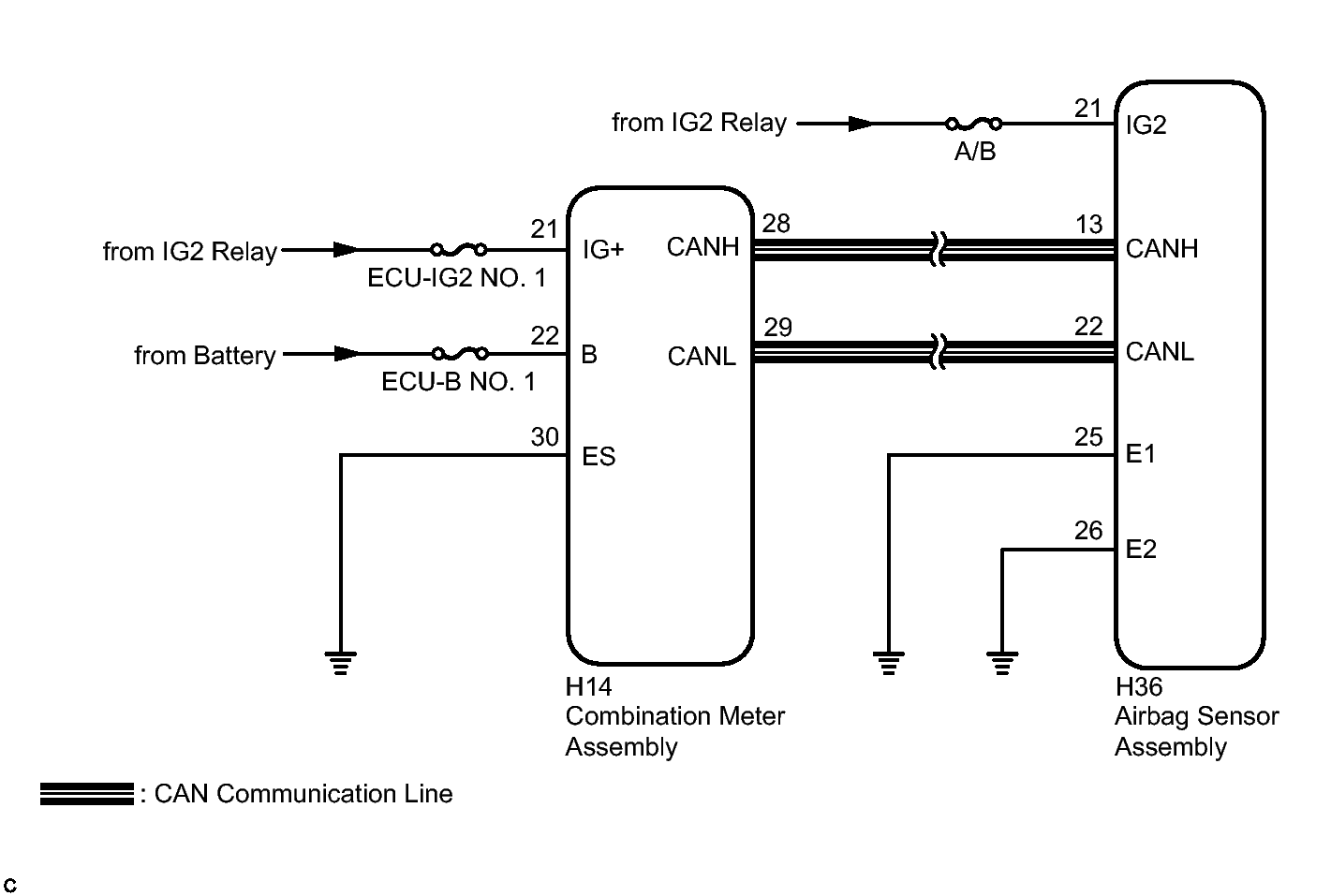

Fig 1: Airbag Sensor Assembly Circuit Wiring Diagram

GTY396374

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
