DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction: Wiring Diagram

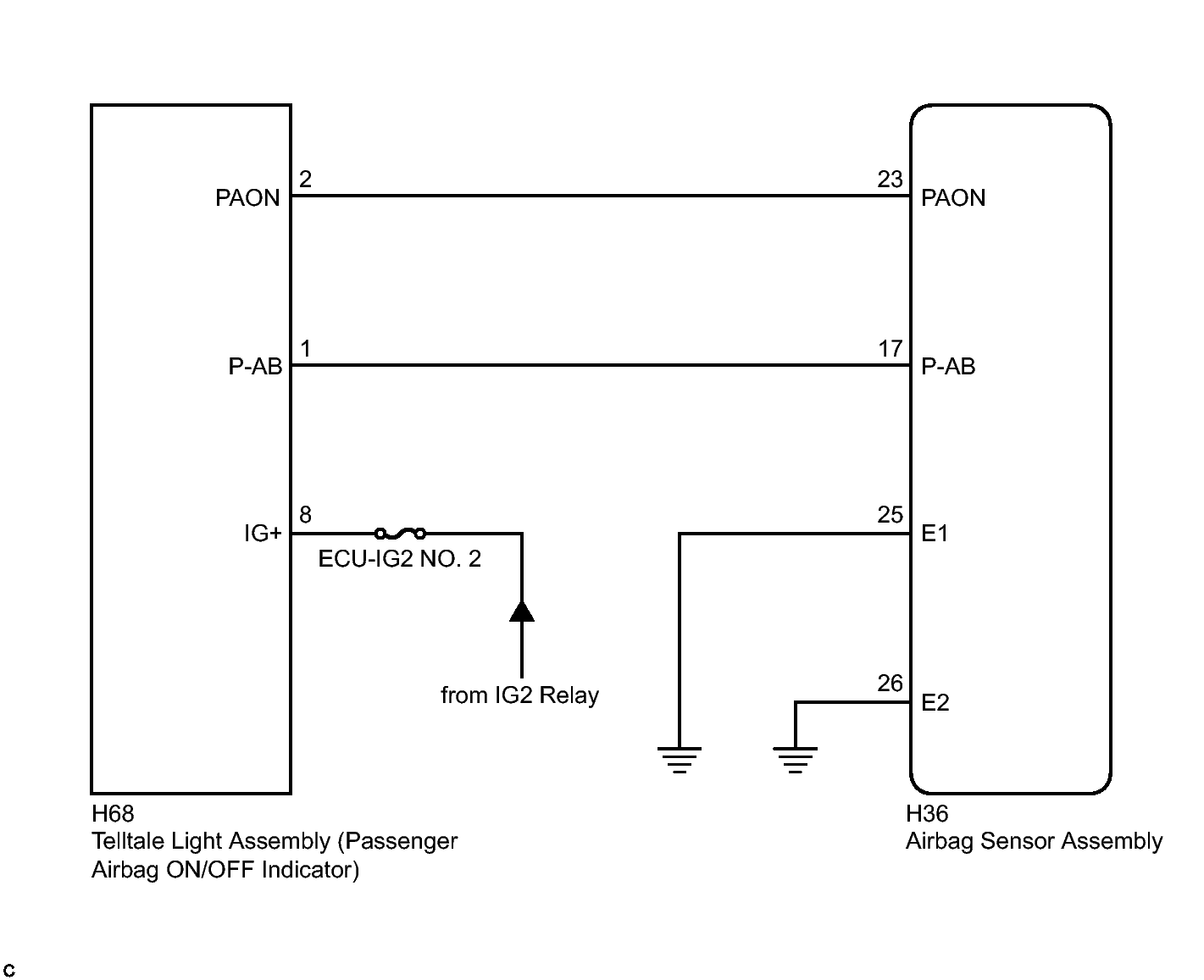

Fig 1: Passenger Airbag ON/OFF Indicator Circuit Wiring Diagram

GTY406334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
