Disassembly [06/2012 - ]

  1. REMOVE COMBINATION METER GLASS
    1. Disengage the 8 claws to remove the combination meter glass.

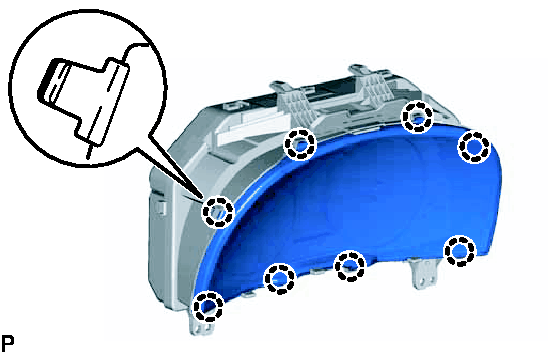

      Fig 1: Identifying Combination Meter Glass Claws
      GTY406259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
