Accessory Meter does not Illuminate: Wiring Diagram

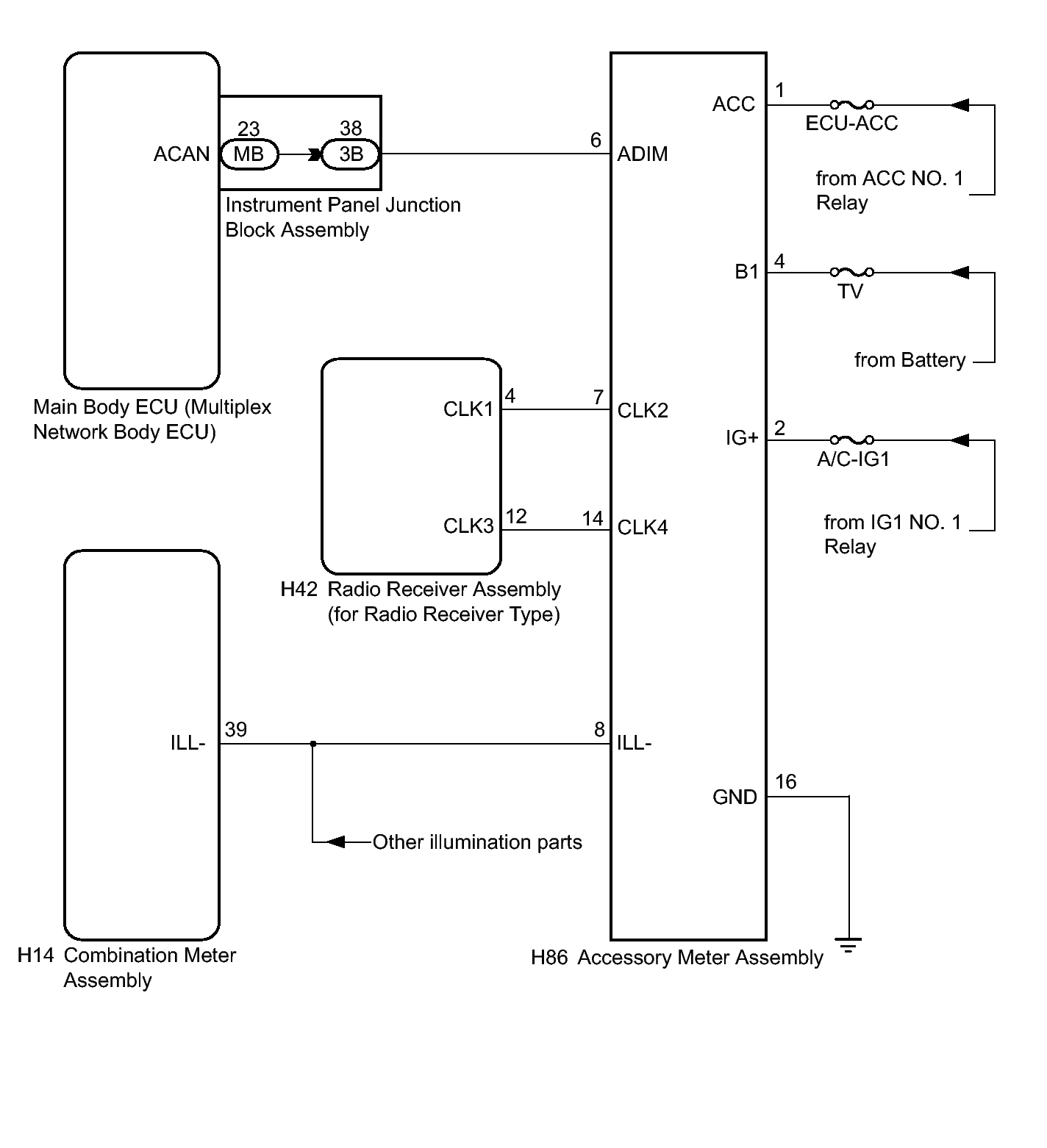

Fig 1: Accessory Meter Circuit Wiring Diagram

GTY418362

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
